Metal Angle Roll Forming Machine

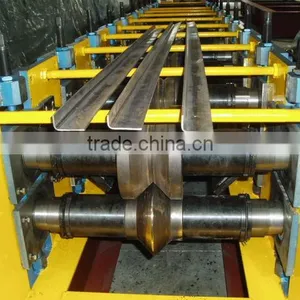

Metal Angle Roll Forming Machine thumbnail-1
Metal Angle Roll Forming Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Zhongyuan
Model Number:
ZYYX20-40
Contact Supplier Request Quote Chat Now
Hangzhou Zhongyuan Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Zhongyuan
Model Number ZYYX20-40
After-sales Service Provided Engineers available to service machinery overseas

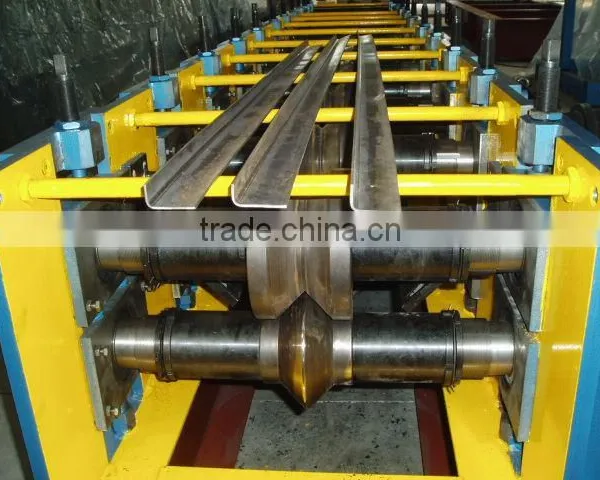

Metal Angle roll forming machine





Machine components:

Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, cutting device, Hydraulic station, PLC control system and support table.



Main technical parameters:

1 Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.6-1.0mm

3. Yield strength of material: 235Mpa-345Mpa

4. Forming speed: about 15m/min

5. Power Requirement      Main motor power: 5.5Kw (Depend on final design)

                                         Hydraulic station power:2.2Kw (Depend on final design)

6. Uncoilers loading capacity       Max. Capacity: 5000kgs (can be increased to be 10T)

7. Controlling system: Mitsubishi PLC & converter

Material of Main Equipment

1. Roller Material: High grade No.45 forged steel, with digital-controlled procession, Plated with hard chrome.



2. Active Shaft Material:  High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft. Shaft diameter is 55mm.



3. Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China



4. Cutter blade: Cr12 mould steel with quenched treatment
