Steel Building Materials Metal Stud Roll Forming Machine
- 15 Set / Sets per Month
- Shanghai China
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Zhongyuan | Model Number: | ZY |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

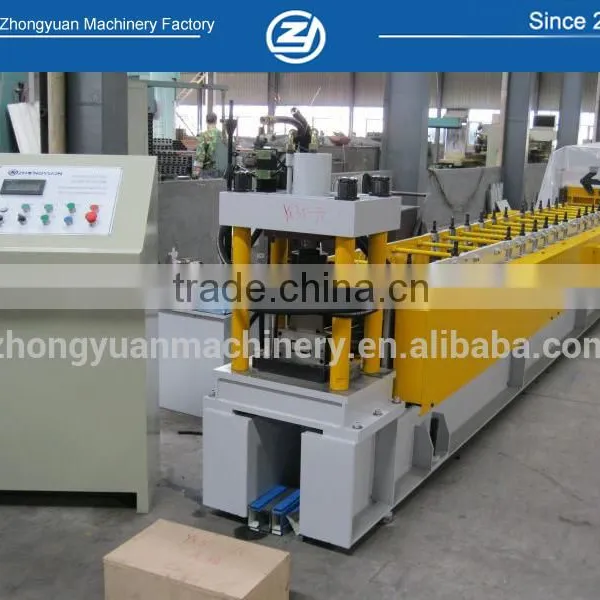

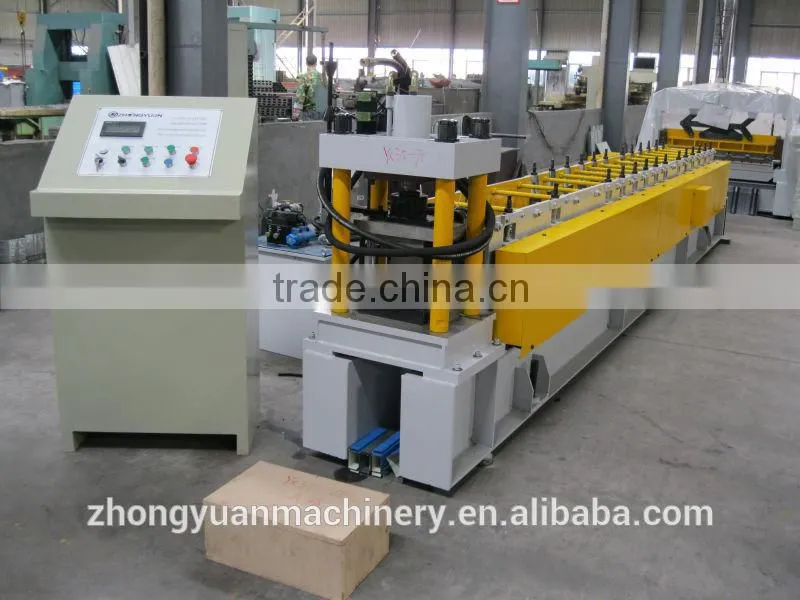

Steel Building Materials Metal Stud Roll Forming Machine
Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Machine components:
Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system ,cutting device, Hydraulic station, PLC control system and support table.
Main technical parameters:
1. Suitable material: color steel sheet or galvanized steel sheet
2.Thickness of raw material: 0.4-0.8mm
3. Yield strength of material: 235Mpa-345Mpa
4. Forming speed: about 15m/min
5. Power Requirement Main motor power: 5.5Kw(Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoilers loading capacity Max. Capacity: 5000kgs (can be increased to be 10T)
7. Controlling system: Mitsubishi PLC & converter
We are professional in making roll forming machines since 2003.
1. Company occupies 6650, in which 5650 for workshops.
2. Capacity: 12-15 sets/month.
3. We are "All-in-house source" --from raw material to the final high-precision forming machine.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this stud roll forming machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
