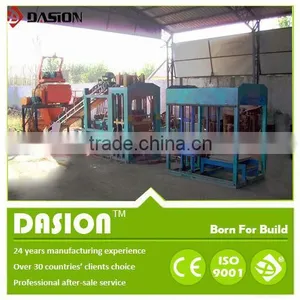

Help CenterShort Delivery Time ! ! Cement Brick Making Machine DS10-15 Hydraulic Press Interlocking Block Making Machine Hot Sale
Related Products
-
High Quality DS10-15 Concrete Bricks Making Machine for Construction EquipmentsUS$ 1,000 - 100,000MOQ: 1 Set -
DS10-15 Fully Brick Making Machinery in Dubai With High Efficiency on SaleUS$ 1,000 - 100,000MOQ: 1 Set
-
Short Delivery Time ! ! Cement Brick Making Machine DS10-15 Interlock Brick Making Machine PriceUS$ 1,000 - 100,000MOQ: 1 Set
-
Brick Making Machine DS4-15 With Hydraulic System Sale in LibyaUS$ 1,000 - 10,000MOQ: 1 Set
-
Fully Automatic Paver Block Machine Price DS6-15 Compressed Earthblock Making MachineNegotiableMOQ: 1 Set
Specifications
hydraulic press interlocking block making machine1.ISO9001:2008 &CE2.multi-purpose design
3.Adopt full program
4.PLC control
cement brick making machine DS10-15 hydraulic press interlocking block making machine Multi-fonction Cement Block Making Machine hot sale

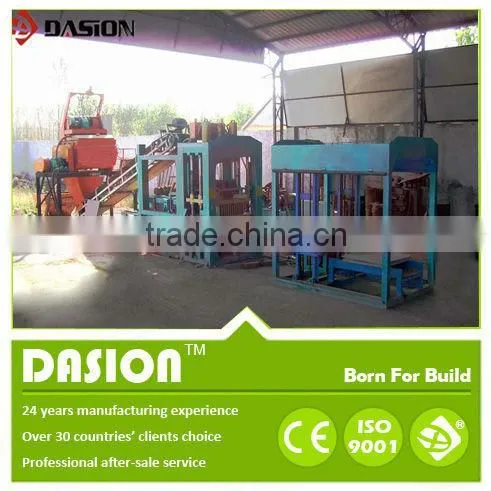

DS10-15 Block Making Machinery
1. Compatible with fixed standard brick, hollow block, brick and other concrete products
2. Special design of material storage & feeding system to ensure the accuracy of material feeding
3. Adopt full program adopt PLC control and intelligent man-machine interface dialogue system
4. Reasonable distribution of vibration to increase the effect of vibrating speed.
DS10-15 Block Making Machinery:
1. Special design of material storage & feeding system: to ensure the accuracy of material feeding; to reduce the materials uneven-density under variety of reasons
2. Multi-source vibration system: Applicable for large work platform, computer-control, hydraulic-driven and some other technologies. Adopt full-synchronous mode of vibration, vibration-hit power is adjustable;
3. Control System: Effective cooperation between digital tech and displacement sensor tech to ensure the accurate and reliable action; Suitable for application in busy complex working conditions
4. Automatic diagnosis: It prompts and alarms to solve trouble timely; Combination of remote control systems, connecting through the telephone line to achieve remote monitoring, controlling and diagnosis.
Main technical parameters of DS10-15 block making machinery:
Parameter Name |
Parameter values |
|
The largest machine dimensions |
7200×2290×3100(L×W×H)(mm) |
|
Rated pressure of hydraulic system |
21Mpa |
|
Main vibration form |
c |
|
Vibration frequency |
50~70Hz |
|
Vibration acceleration |
10-15g |
|
To adapt to the high brick |
50-200mm |
|
Pallet size |
Bamboo |
1070×840×40(mm) |
Molding cycle |
15s |
|
Machine power |
36.8kw |
|
Machine weight |
14.8t |
|
Main product specifications and production of each plate:
Model |
Block Specifications (mm) |
Forming number |
Molding cycle |
Capacity (pcs) |
DS10-15 |
390×190×190 (brick) |
10 |
15 |
19200 |
240×115×90 (brick) |
24 |
15 |
46080 |
|
240×115×53 (standard brick) |
48 |
15 |
92160 |
|
This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs. | ||||
Production conditions: | ||
Production sites |
Venues |
15-20acres |
Operate camp |
60 |
|
Raw space |
300 |
|
Office space |
30 |
|
Other conditions |
Staff |
10-15people |
Distribution |
40kw |
|
Water |
10T/day |
|
DS series brick making machine brief introduction as following:
Model |
Block Specifications(mm) |
Forming Number (brick) |
Molding Cycle (seconds) |
Capacity (pcs) (8 hours) |
DS4-35 |
390 × 190 × 190 (hollow brick) |
4 |
35-40 |
3000-3290 |
|
240 × 115 × 90 (porous brick) |
9 |
35-40 |
7000-7400 |
|
240 × 115 × 53 (standard brick) |
21 |
35-40 |
15000-17200 |
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 4.5T |
|||
DS4-15 |
390 × 190 × 190 (hollow brick) |
4 |
20-25 |
4608-5760 |
|
240 × 115 × 90 (porous brick) |
13 |
20-25 |
14950-18720 |
|
240 × 115 × 53 (standard brick) |
26 |
20-25 |
29900-37440 |
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T |
|||
DS6-15 |
390 × 190 × 190 (hollow brick) |
6 |
15-25 |
7000-11520 |
|
240 × 115 × 90 (porous brick) |
12 |
15-25 |
14000-23040 |
|
240 × 115 × 53 (standard brick) |
30 |
15-25 |
34560-57600 |
|
Bamboo pallet size: 800 × 700 × 25mm Host power: 29.7KW |
|||
|
Machine size: 8800 × 1600 × 2750(L×W×H)mm Total weight: 10.5T |
|||
DS8-15 |
390 × 190 × 190 (hollow brick) |
8 |
15-20 |
11520-15360 |
|
240 × 115 × 90 (porous brick) |
21 |
15-20 |
30240-40320 |
|
240 × 115 × 53 (standard brick) |
42 |
15-20 |
60480-80640 |
|
Bamboo pallet size: 920 × 850 × 40mm Host power: 36.8KW Machine size: 7200 × 2100 × 2825(L×W×H)mm Total weight: 11.8T |
|||
DS10-15 |
390 × 190 × 190 (hollow brick) |
10 |
15-20 |
14400-19200 |
|
240 × 115 × 90 (porous brick) |
24 |
15-20 |
34560-46080 |
|
240 × 115 × 53 (standard brick) |
51 |
15-20 |
73440-97920 |
|
Bamboo pallet size: 1070 × 840 × 40mm Host power: 36.8KW Machine size: 7200 × 2290 × 3100(L×W×H)mm Total weight: 14.8T |
|||
