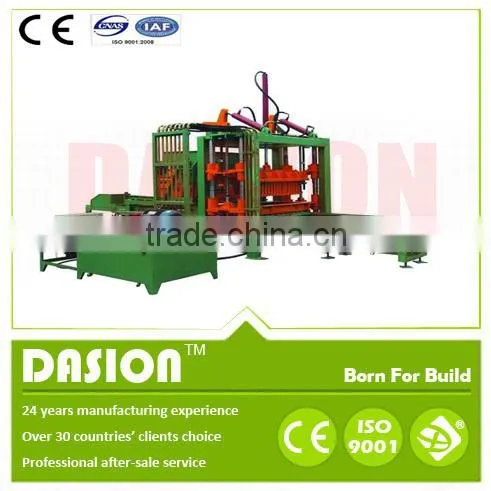

fully automatic paver block machine price DS6-15 compressed earthblock making machine
- 10 Set / Sets per Month
- Qingdao
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Cutting Machine | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | 7200 block/h | Place of Origin: | Henan, China | Brand Name: | DASION |
Model Number: | DS6-15 | Voltage: | 380V | Power: | 29.7kw |
Dimension(L*W*H): | 8800 x 1600 x 2750)mm | Certification: | CE ISO | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
paver block machine price1.ISO9001:2008 & CE
2.Multi-purpose mould
3.Hydraulic system
1. Main technical parameters of DS6-15 Brick Making Machine:
Parameter Name | Parameter values | |
The largest machine dimensions | 6600×1990×3000(L×W×H)(mm) | |
Rated pressure of hydraulic system | 21Mpa | |
Main vibration form | All vibration molded desk | |
Vibration frequency | 50~70Hz | |
Vibration acceleration | 10-15g | |
To adapt to the high brick | 50-200mm | |
Pallet size | Wooden | 830×660×(40±1)(mm) |
Iron | 830×660×(8-10±1)(mm) | |
Bamboo | 830×660×(15-20)(mm) | |
Molding cycle | 15-18 seconds 20-23 seconds to be added fabrics |
|
When production | Standard block(240×115×53mm) | 57,600 Pieces/ 8 hours |
Feeder capacity | Effective storage volume of 0.45m3 hopper | |
| Effective volume of 0.15m3 car charging | |
Machine power | 36.8kw | |
Machine weight | 12T | |
Brick shaped mold can be produced according to user needs. |
2. Main product specifications and production of each plate:
Model | Block Specifications (mm) | Number per Pallet (Block) | Molding cycle | Block/ 8 hours |
DS6-15 | 390×190×190 (hollow brick) | 6 | 15-20 | 8640 |
| 240×115×90 (porous brick) | 15 | 15-20 | 21600 |
| 240×115×53 (standard brick) | 30 | 15-20 | 47520 |
The above theory of output data depending on the operating proficiency may be different. Other different bricks mould ban be produced specially. |

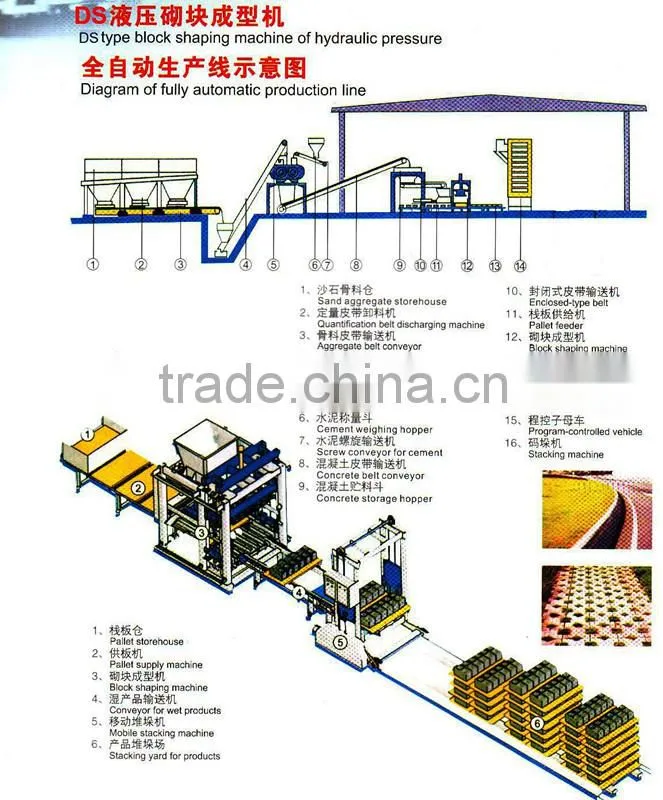

3. Working principle of DS6-15 Brick Making Machine:
1) Principle of vibratory compaction:
The material grain, under the function of excitation force, will take Intense exercise on the direction of vibration. This kind of exercise will fill up the gap among the different material
2) Principle of hydraulic system:
The system will converts the electric energy into hydraulic energy, the various component of hydraulic system will drive the material feeding device and main piston to move up and down, back and forth. That will press the material inside of the mould into green-brick. Then the dome brick device will push the green-brick on the pallet.
3) To produce concrete bricks, that need adopt advanced scientific formula and equipment process strengthening treatment for granularity, temperature and mixing degree, so that the material achieve the best state for forming. After high-pressure forming, the green-brick will hardening rapidly. The more time, the better for solid. The bricks have good commodity. When building a wall, that’s no need to be socked, and the appearance is neat.
Located in Zhengzhou City, Henan Dasion Mechanical Installation Co., Ltd. specializes in the development, manufacture, marketing and after-sales service of industrial equipment. We have strict internal management systems and highly talented technicians who have rich working experience in concrete equipment.
We always insist on the spirit of "Bring more values to customer". We are looking forward to having good cooperation with partners from at home and abroad on the win-win basis to create a glorious future.
Standard Exported Package
As a professional exporter,our target is to serve worldwide clients with high-quality products,great reliability,devoted
responsibility,professional services and honorable credibility to meet customers' requirements in all aspects.
We will supply you 24 hours a day and 7 days a week after-sale services.
Attentions:
If you are interested in our products, please do not hesitate to contact us on TradeManager client.
Or, you can click here to send us an inquiry.
Your inquiry will be given prompt attentions and reply within 12 hours.
