Machine was designed by 15 years experienced R&D members.
Certificate: ISO 9001, CE,

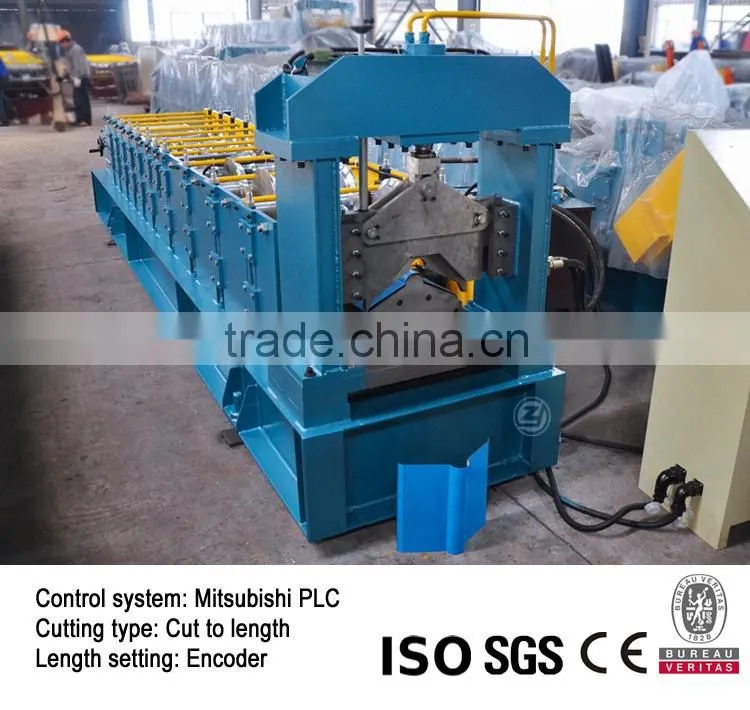

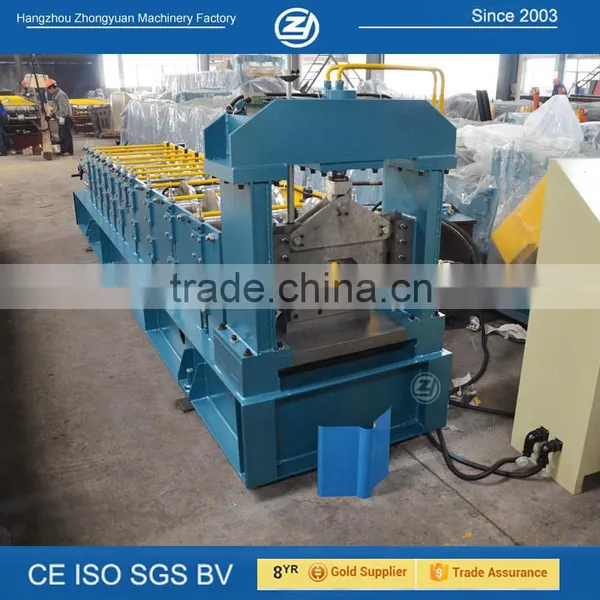

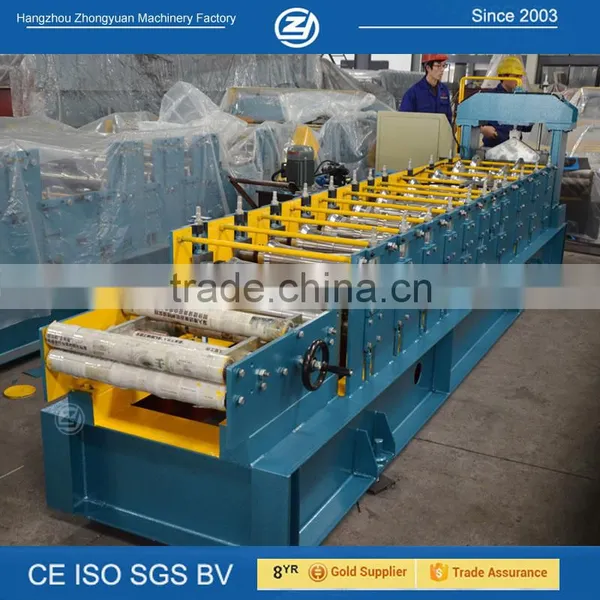

Ridge Cap Making Machine
1. Main techncial parameters
| Item | Specification | |
| Material | Type | pre-painted galvanized steel sheet |
| Thickness(mm) | 0. 4 -0. 6 | |
| Yield strength(mpa) | 235 -345 | |
| Shaft diameter (mm) | about 55 | |
| Forming speed(m/min) | About 15 | |
| Step distance | Adjustable according to requirement | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 4KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Total power(kw) | 9.5KW | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s size | About 6*1*1.5m (Depend on final design) | |
| Machine weight | About 5500kgs | |
2. Components
3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming ---Hydraulic Cutting –product to run out table
PLC Controller
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!
Inside of PLC Controller for reference

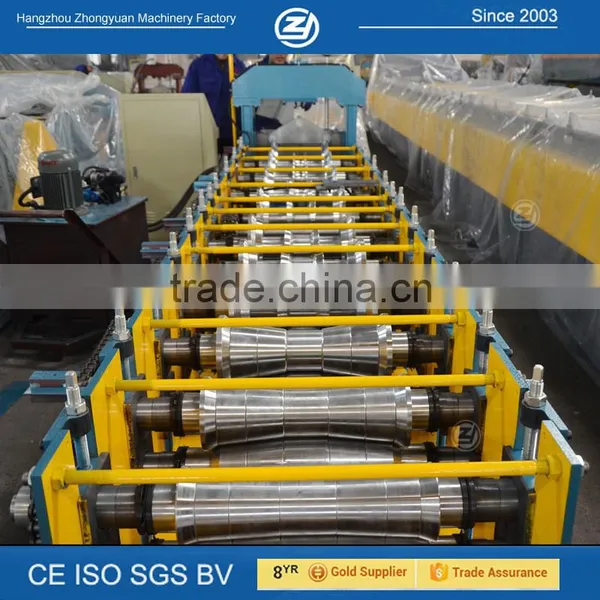

Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision.
55mm solid steel shafts; hard chrome rollers
What is the main process of our machine rolllers and shafts?
How is our cooperation process?
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
