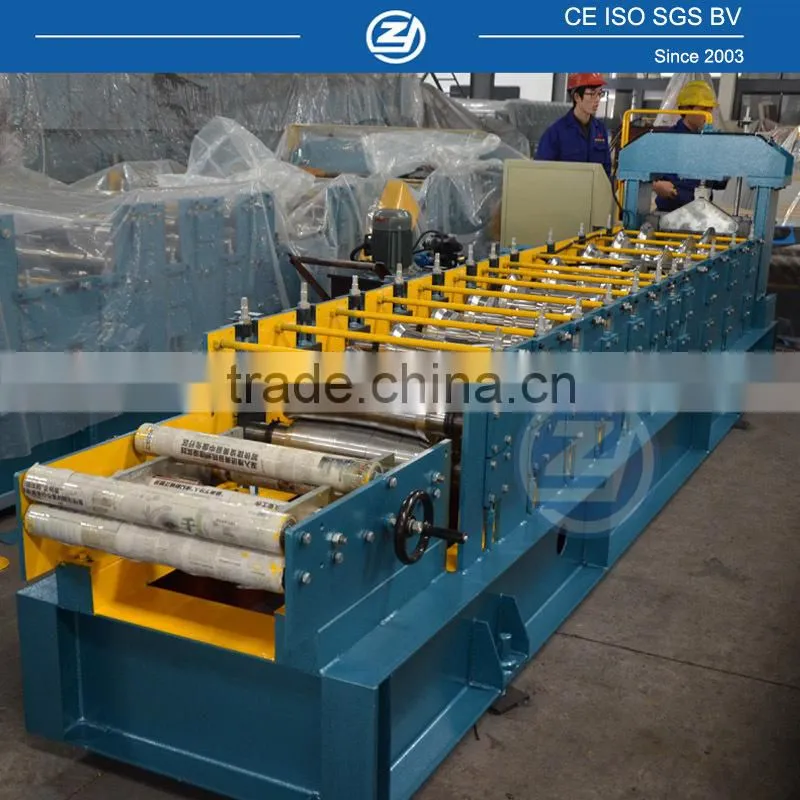

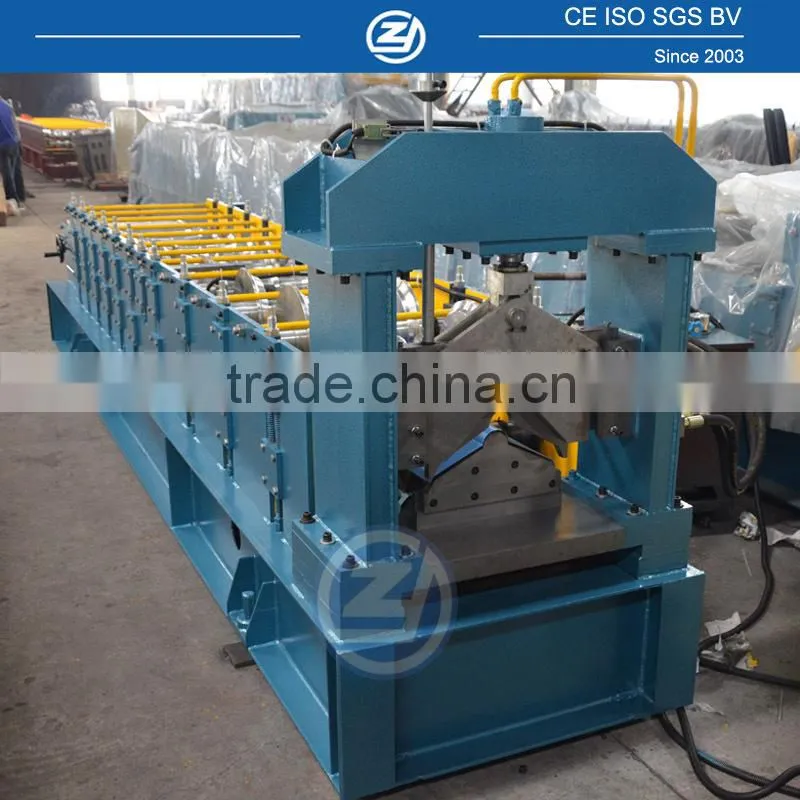

Steel Roof Ridge Cap Making Machine on Sale

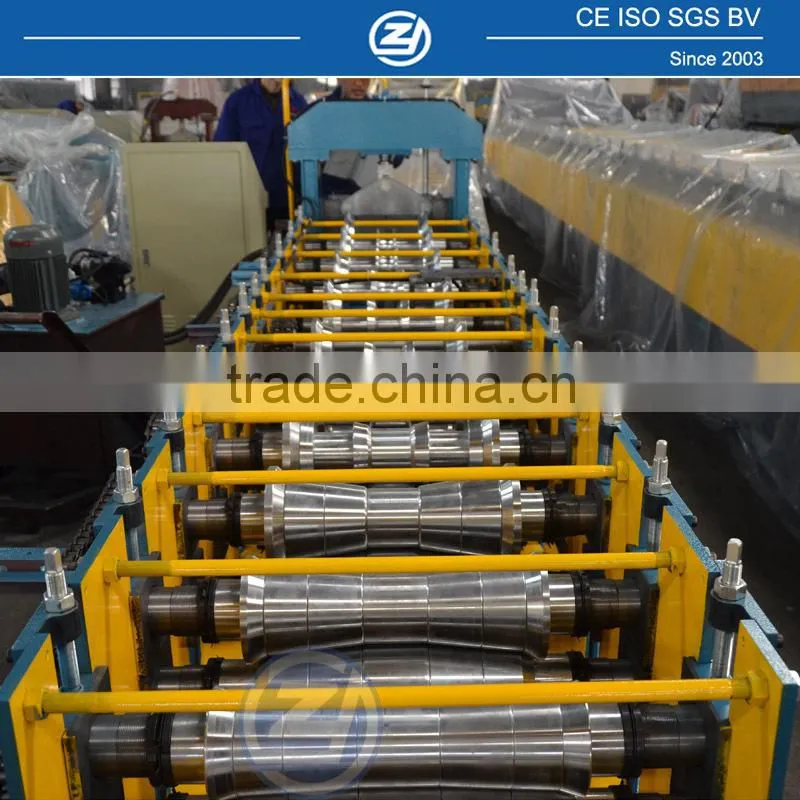

Forming system of Steel Roof Ridge Cap Making Machine on Sale

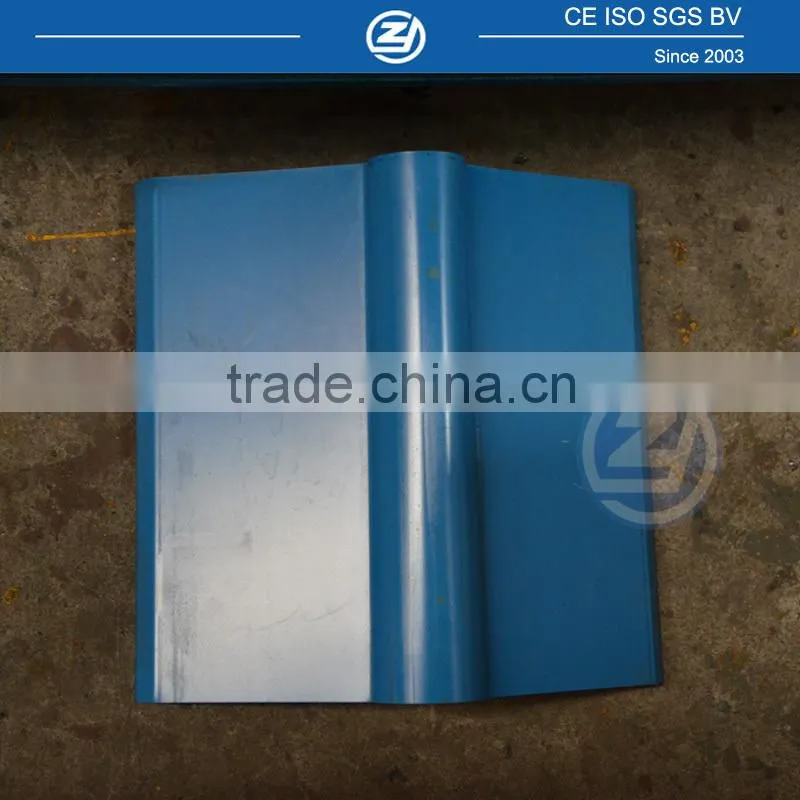

Panels of Steel Roof Ridge Cap Making Machine on Sale
Steel Roof Ridge Cap Making Machine parameters
1. Main techncial parameters
| Item | Specification | |
| Material | Type | pre-painted galvanized steel sheet |
| Thickness(mm) | 0. 4 -0. 6 | |
| Yield strength(mpa) | 235 -345 | |
| Roller material | 45#Chrome steel | |
| Shaft diameter (mm) | about 55 | |
| Forming speed(m/min) | About 15 | |
| Step distance | Adjustable according to requirement | |
| Speed adjusting mode | AC Frequency | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 4KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s size | About 5*1.3*1.5m (Depend on final design) | |
| Machine weight | About 5500kgs | |
2. Components
| Decoiler | 1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |
| Pressing device | 1set | |
| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
| Run out table | 1set | |
3.Process flow
Decoiler -- Feeding & Guiding -- Roll forming ---Hydraulic Cutting –product to run out table
Machine details
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details
Wire is fixed tidiness
Machine details
Gears with protector
Warning lables on protector
Keys to fix gears and shafts
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers.
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
