Glazed Tile Machine
- Shanghai/Ningbo
- T/T
You May Like
Product Details
Condition | New | Type | Tile Forming Machine | |
Tile Type | Colored Glaze Steel | Use | Roof | |
Production Capacity | 2-5m/min | Place of Origin | Zhejiang, China | |
Brand Name | Zhongyuan | Model Number | ZYYX 42-200-1000 | |
Power(W) | 7.5kw+5.5kw | Voltage | 380V/50HZ/3Phase (or depend on customers requirement) | |
Dimension(L*W*H) | 8m x 1.7m x 1.5m | Weight | 9000kgs | |
Certification | ISO, BV & SGS | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

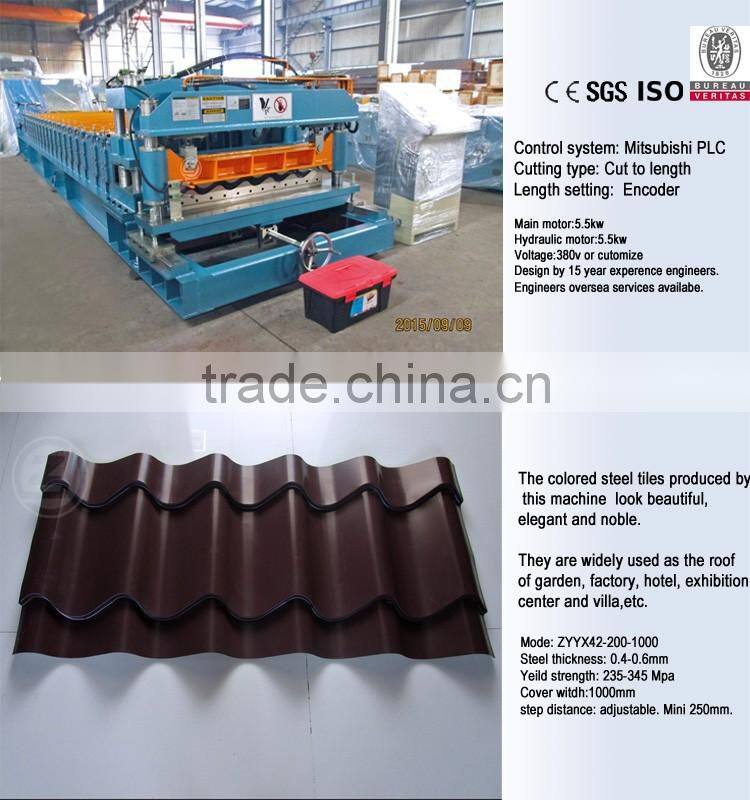

Russia Style Glazed Steel Tile Making Machine
Product Feature:
The colored steel tiles produced by roof tile forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa,etc.
1.Technical parameter:
Item | Secification | |
Material | Type | Pre-painted steel coil & galvanized coils |
Thickness | 0.5-0.6mm | |
Yield strength | 235Mpa | |

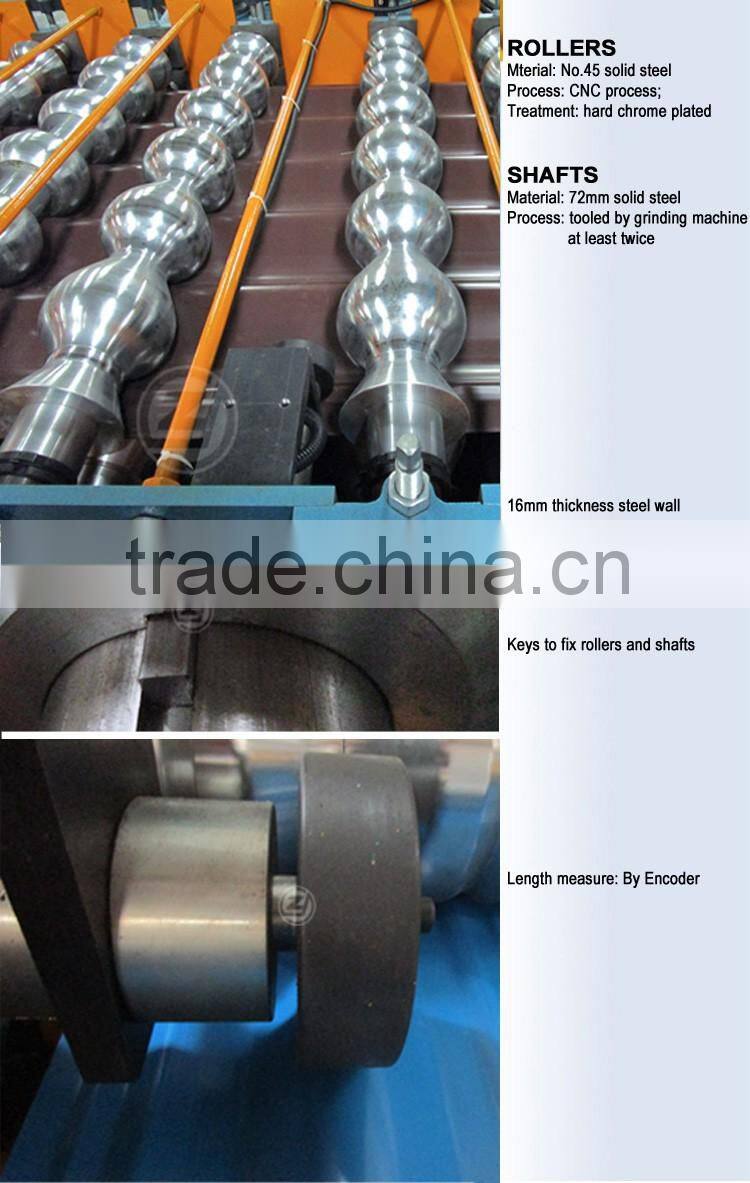

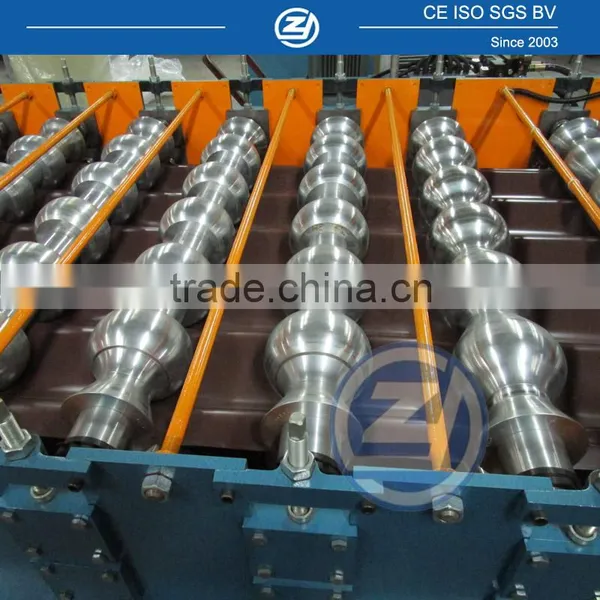

Roller material | No.45 forged steel | |
Forming speed | About 10-15m/min | |
Output speed | 2-5m/min | |
Speed adjusting mode | AC Frequency | |

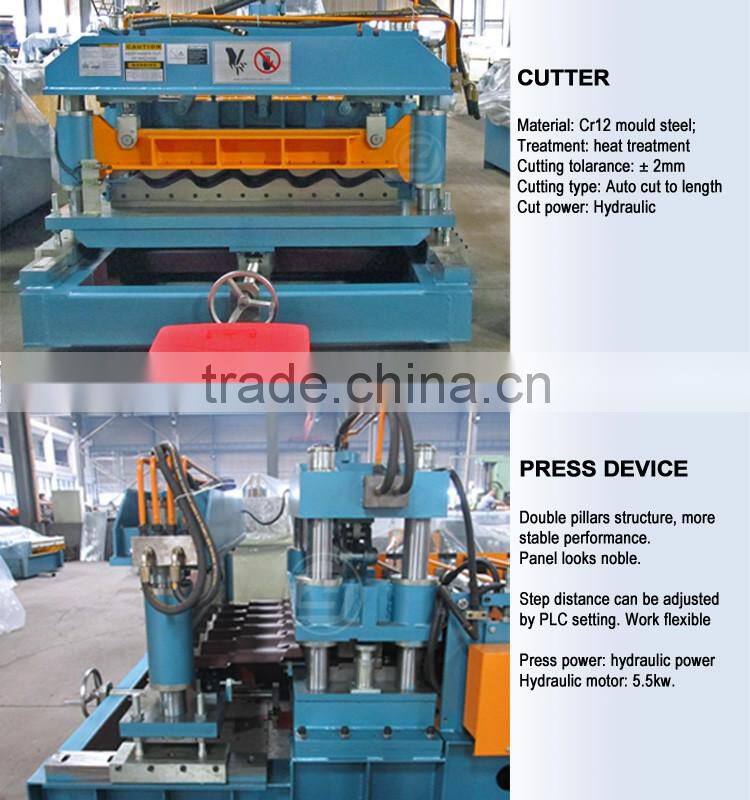

Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Main motor | 7.5KW | |
Hydraulic station motor | 5.5KW |
2.Process flow:

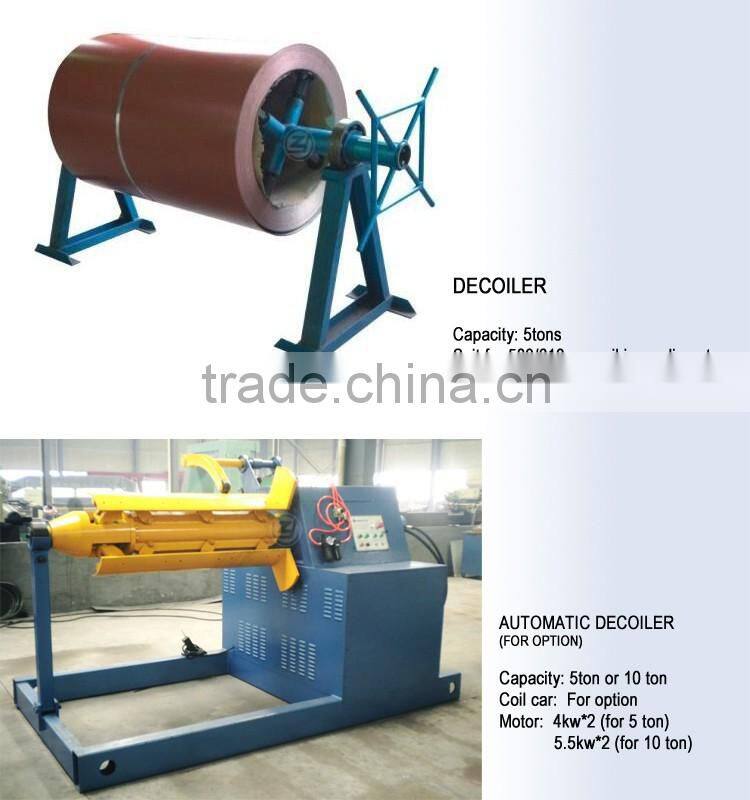

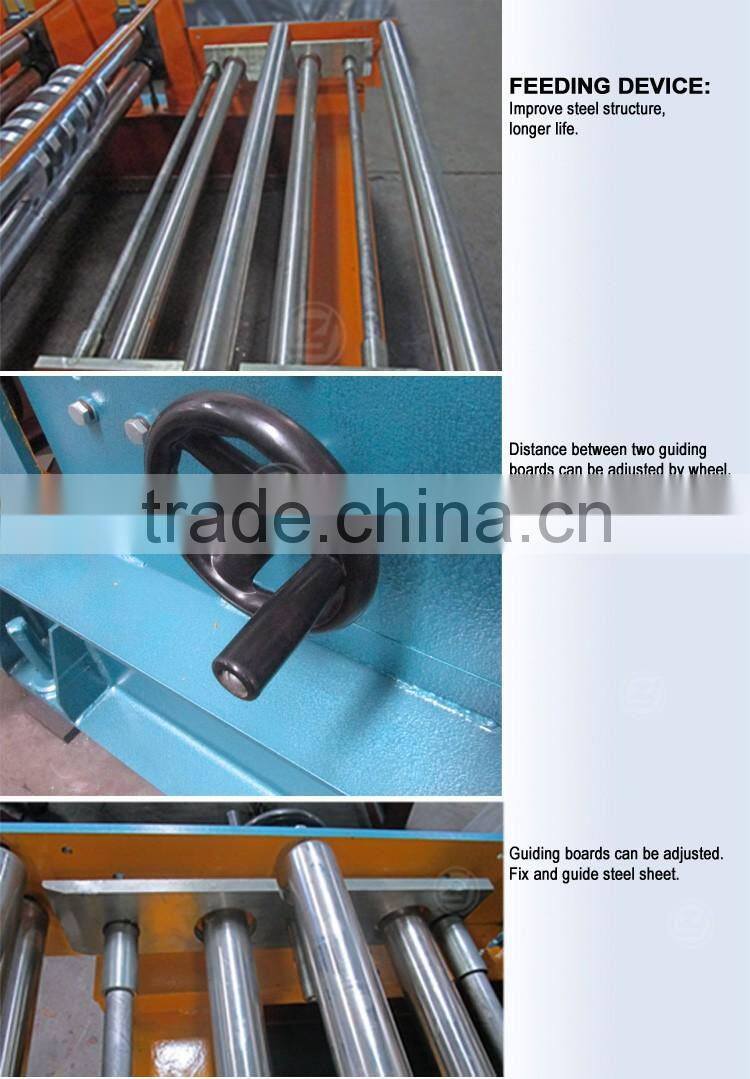

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table
