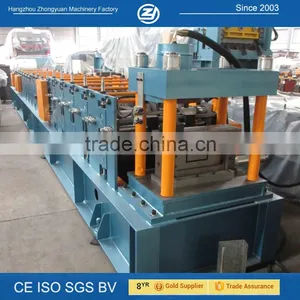

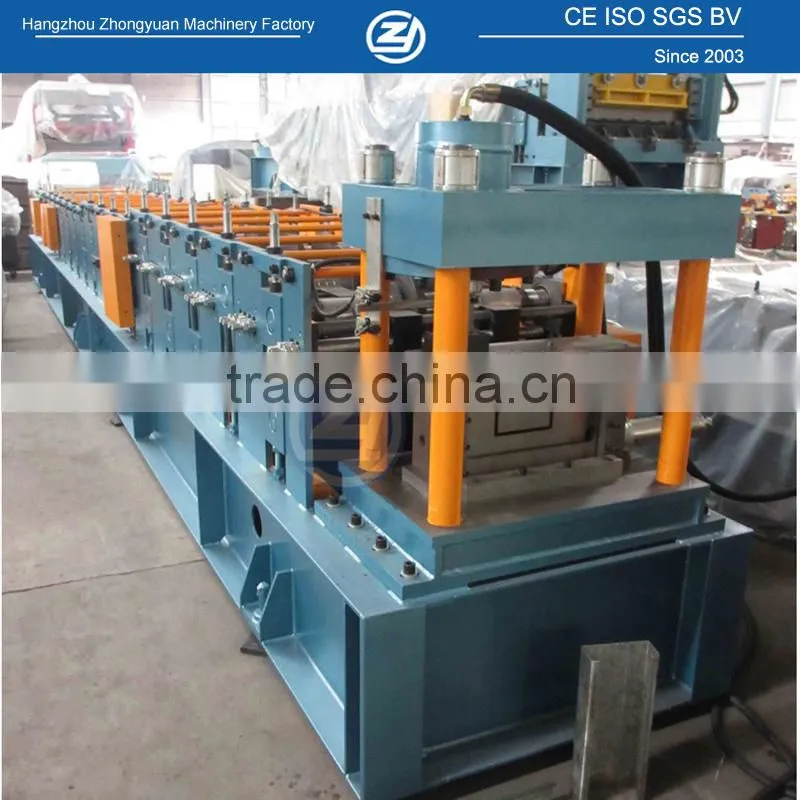

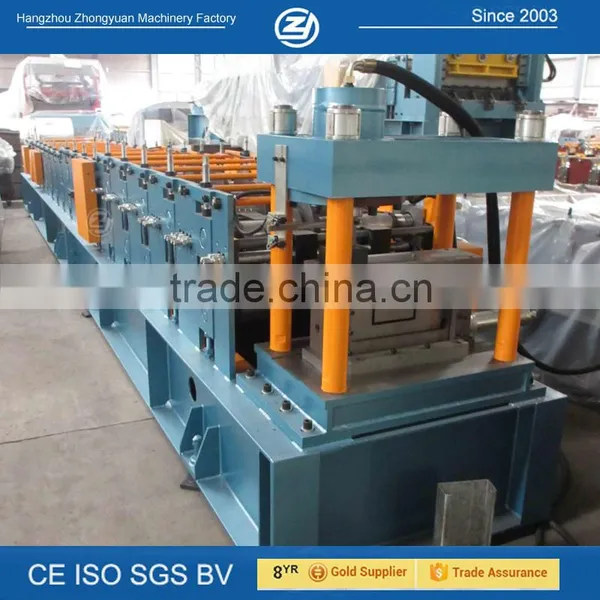

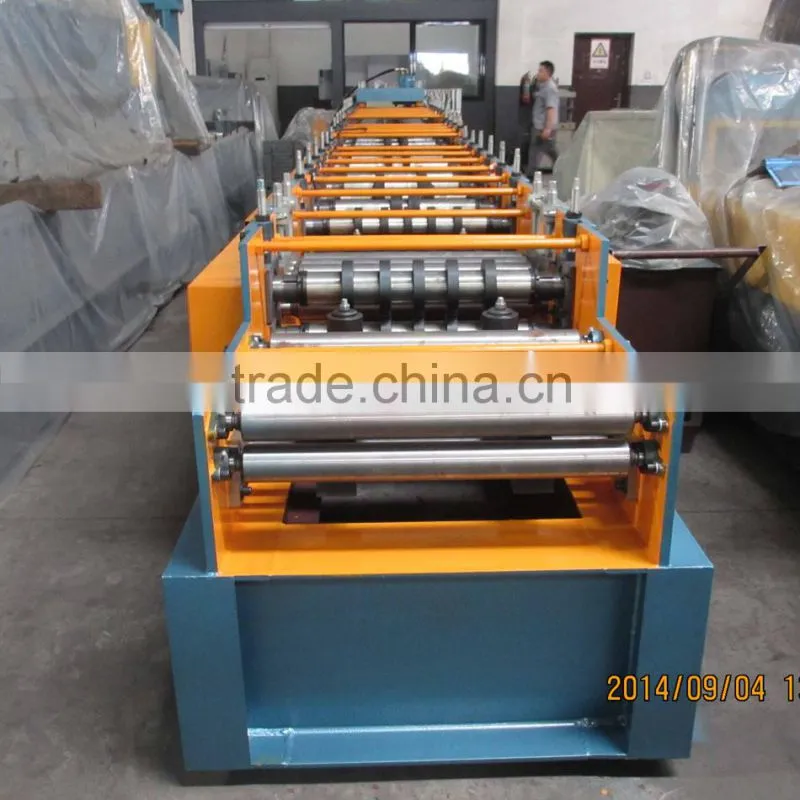

Help CenterC Channel Steel Roll Forming Machine
Related Products
-
Long Span Roof Corrugate MachineUS$ 25,000 - 55,000MOQ: 1 Set -
China Supplier Bending Machines For SaleUS$ 24,000 - 40,000MOQ: 1 Set
-
Roll Forming Machine CompanyUS$ 25,000 - 55,000MOQ: 1 Set
-
Galvanized Roofing Sheet Roll Forming MachineUS$ 24,000 - 55,000MOQ: 1 Set
-
Shearing Machine for Steel StlittingNegotiableMOQ: 1 Set

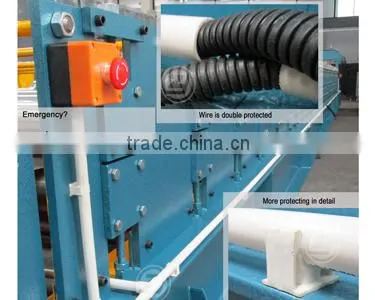

Why choose this machine?
This C channel steel forming machine was designed by 15 years experienced R&D members; Lifetime services
Introduced Mitsubishi PLC with touch screen.
Roller cover with 0.05mm chrome, ensure lifetime>10years
Cr12 mould steel cutter with quenched treatment. Blade heat treatment.

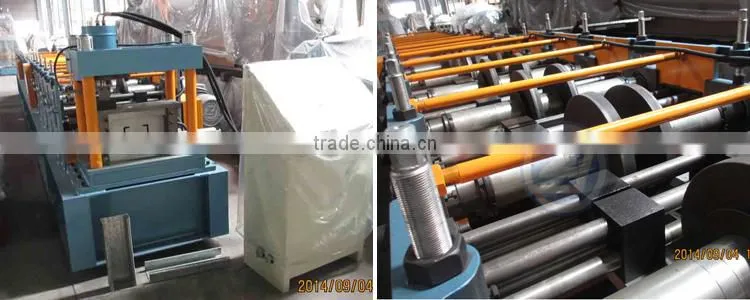

Machine detail
| |
| Suitable material: galvanize | |
| Steel thickness: 0.8-1.2mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 7*1*1.6m | |
| Machine weight: About 7 tons |
|
Manual decoiler
|
| Loading capacity: 3ton (10ton for option) |
| Coil inner diameters: 508/610mm |
| Max coil width: 1250mm |
| Coil car: For option |
| Auto decoiler motor: 4kw*2 (for 5 ton) / 5.5kw*2 (for 10 ton) |

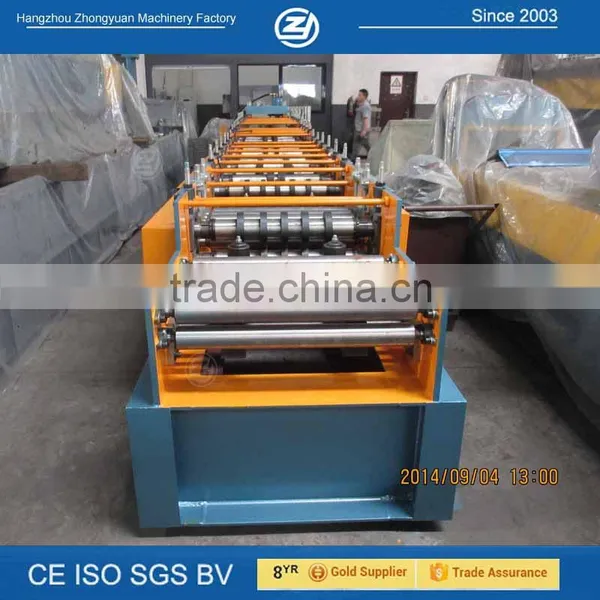

Feeding device |

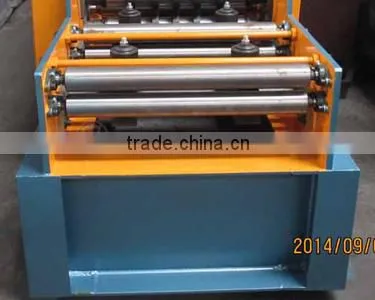

| Level device: yes |
| Film cover device: for option |
| |

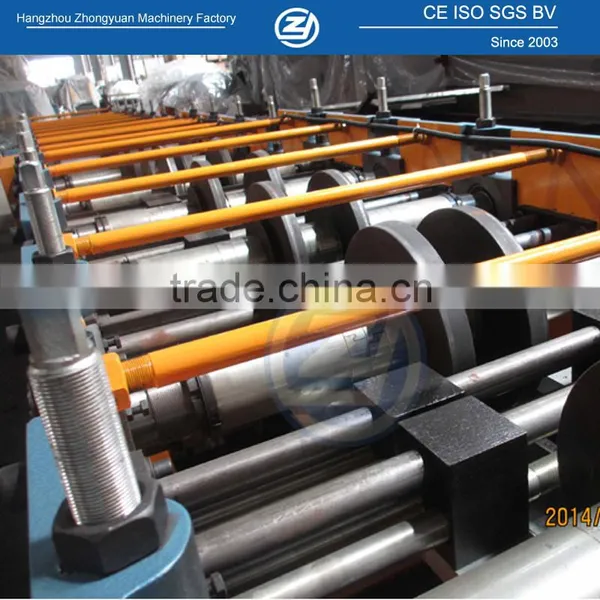

| Roller material: No. 45 forged solid steel; processed by CNC | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 82mm | |
| Transimission: By chain | |
| Main motor: 15 kw | |
| Forming speed: 10m/min | |
| Out put speed: 5-8 m/min |
|
Cutter
|
|
| Cutter material: Cr12 mould steel | |
| Cutting treatment: Heat treatment | |
| Cutting type: Auto cut to length | |
| Motor: 5.5kw | |
|
| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
|
| Motor: 5.5kw |
| Oil: No 46. Hydraulic oil |
| Cooling sytem: Fan (or water for option) |
|
Support table Tool box (for free)
|
| Size: 1.5m/pc, total 2 pcs |
| Automatic: Can customize |

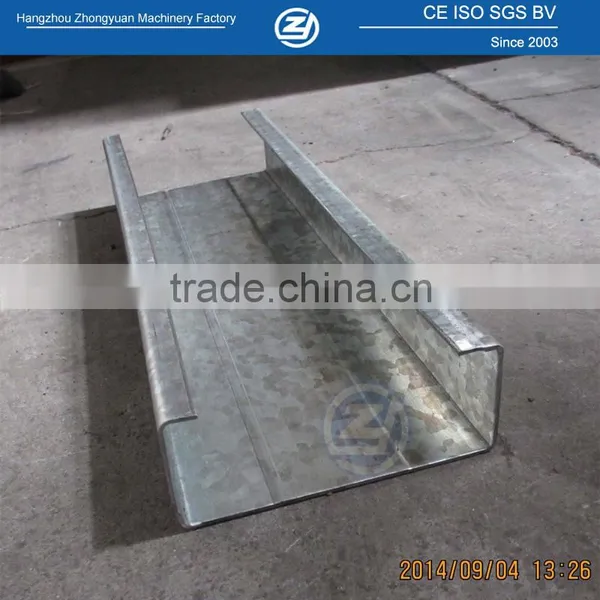

C purlin machine data sheet
| Item | Specification | |
| Material | Type | galvanized steel sheet |
| Thickness(mm) | 1.5, 2.0 | |
| Yield strength(mpa) | 235 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 10-12m/min | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 15 KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Total power(kw) | 20.5KW | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine weight | About 6000kgs | |
| Machine size | About 6.5*1.2*1.5m (Depend on final design) | |
| Components of machine: | ||
| Decoiler | 1set | |
| Feeding & guiding device | 1set | |
| Pre-cutting device | 1set | |
| Main roll forming machine | 1set | |
| Punching equipment | 1set | |
| Hydraulic cutting system | 1set | |
| PLC Controlling system | 1set | |
| Run out table | 1set | |
|
Process flow: | ||
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this c channel steel roll forming machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
