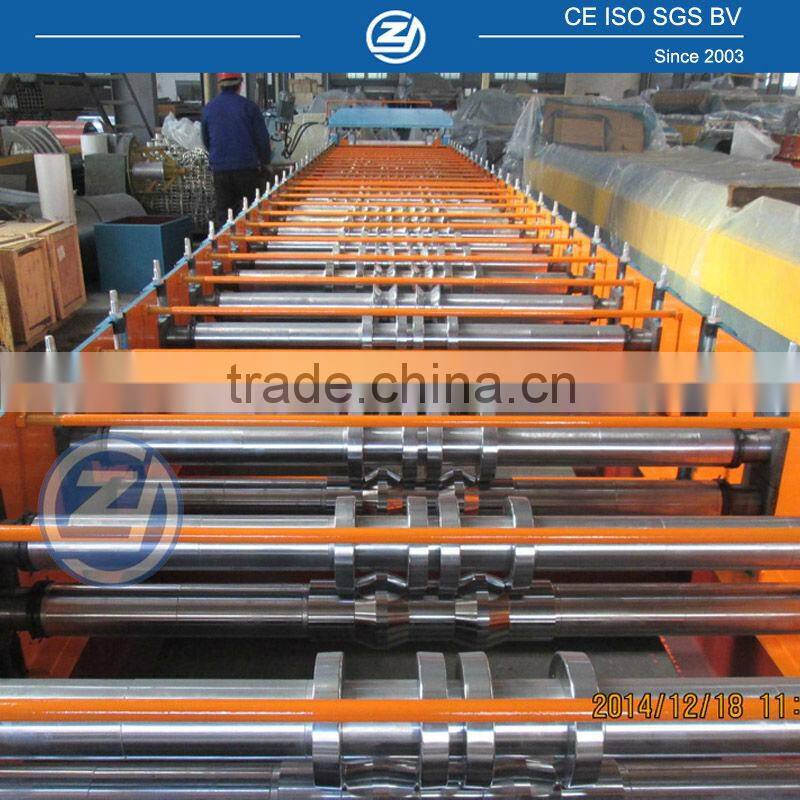

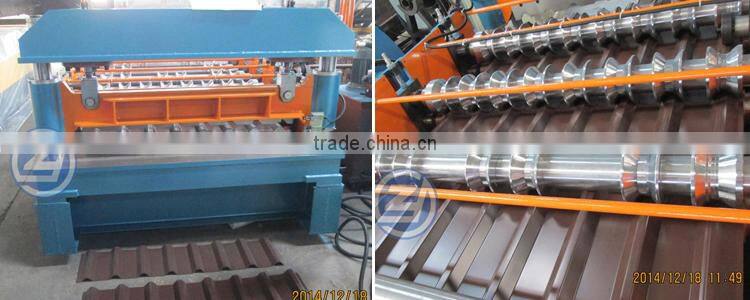

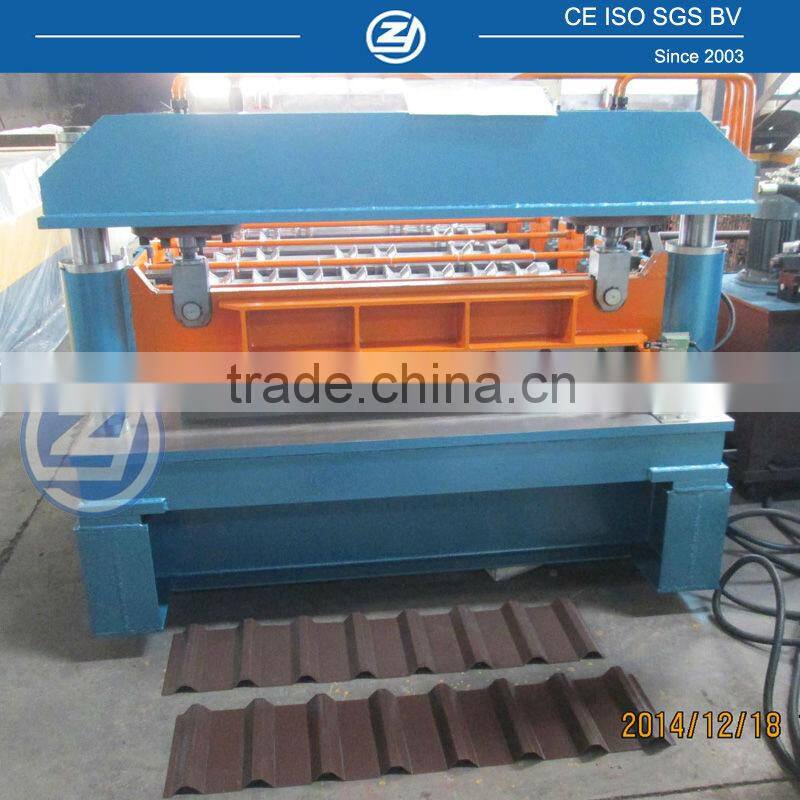

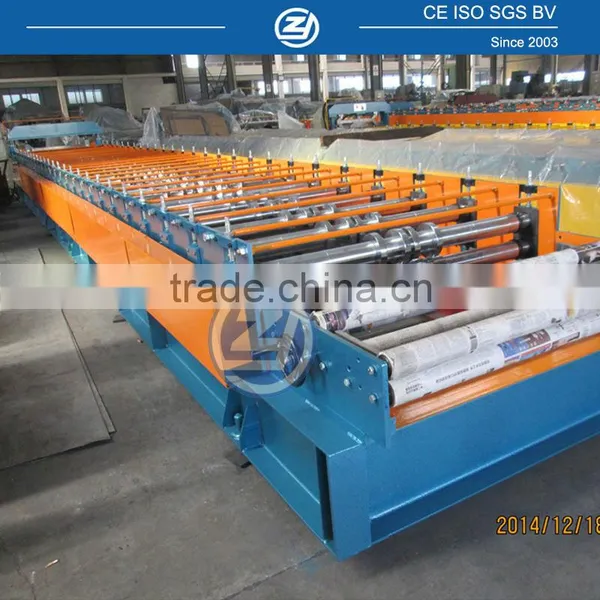

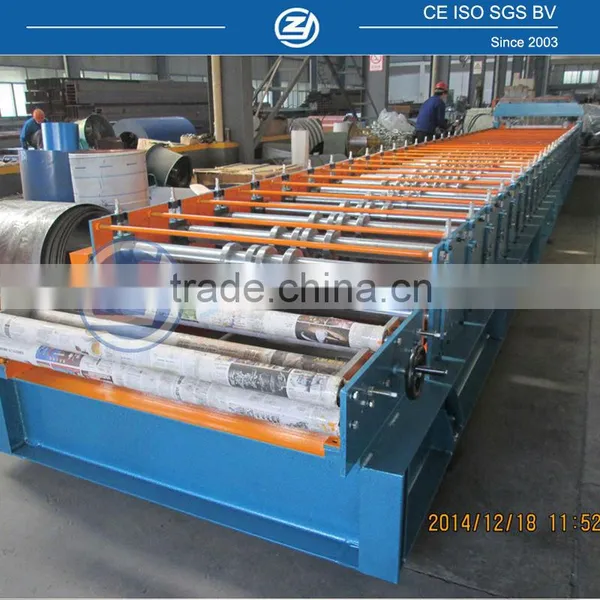

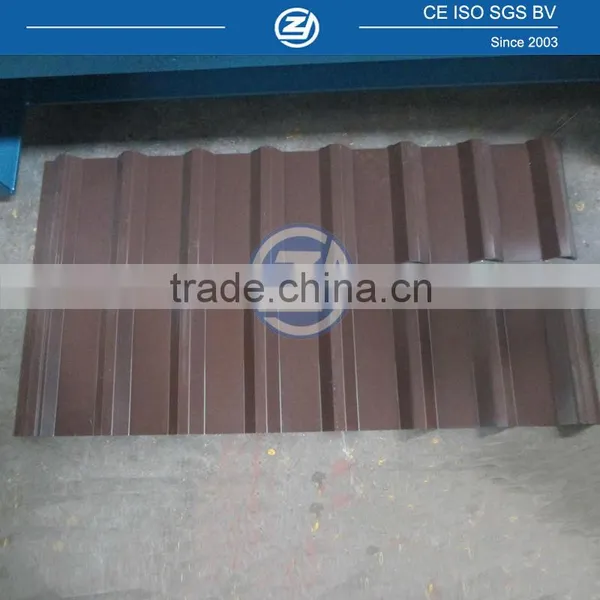

Long Span Roof Corrugate Machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. Cr12 mould steel cutter with quenched treatment. Cutting blade with heat treatment.
6.Technician overseas installing and training available
Machine detail
| |
| Suitable material: glazed/ galvanize/ color coated steel | |
| Steel thickness: 03.-0.8mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 10*1.7*1.6m | |
| Machine weight: About 8 tons |
|
Manual decoiler
|
| Loading capacity: 5ton (10ton for option) |
| Coil inner diameters: 508/610mm |
| Max coil width: 1250mm |
| Coil car: For option |
| Auto decoiler motor: 4kw*2 (for 5 ton) / 5.5kw*2 (for 10 ton) |
|
Feeding device Pre-cutter
|
| Level device: yes |
| Film cover device: for option |
| Pre-cutter: for option |
| Cutting blade material: Cr12 mould steel |
| Cutting blade process: heat treatment |
| |

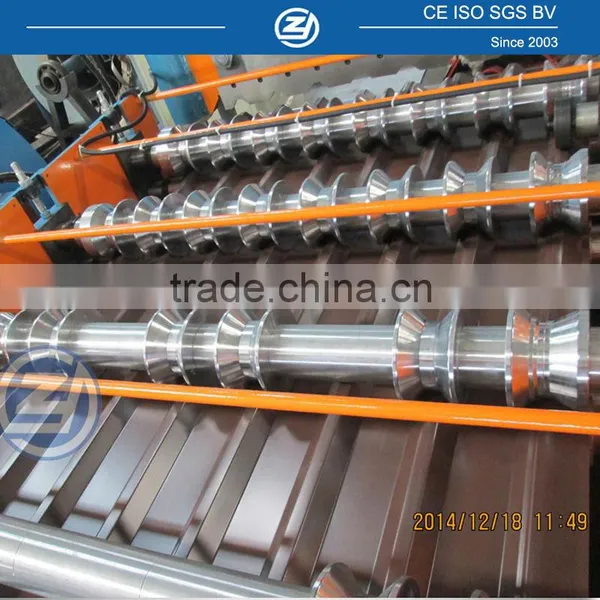

| Roller material: No. 45 forged solid steel; processed by CNC | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 72mm | |
| Transimission: By chain | |
| Main motor: 7.5 kw | |
| Forming speed: 20m/min | |
| Out put speed: 8-10 m/min | |
|
|
|
Cutter
|

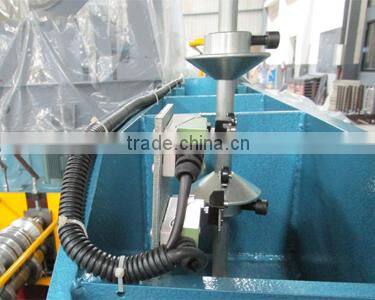

Limit switches
|
| Cutter material: Cr12 mould steel | |
| Cutting treatment: Heat treatment | |
| Cutting type: Auto cut to length | |
| Motor: 2.2kw | |
|
| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
|
| Motor: 2.2kw |
| Oil: No 46. Hydraulic oil |
| Cooling sytem: Fan (or water for option) |
|
Support table Tool box (for free)
|
| Size: 1.5m/pc, total 2 pcs |
| Automatic: Can customize |
Machine data sheet
1. Parameters
| Item | Specification |
| Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.3-0.7 |
| Yield strength (mpa) | 235 |
| Roller material | 45#Chrome steel |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 7.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 10*1.6*1.5m (Depend on final design) |
2. Components
|
Decoiler (manual/ hydraulic decoiler for option) |
1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |
| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
| Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs | |
3. Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this long span roof corrugate machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
