China Supplier Bending Machines For Sale
Certificate: ISO, CE,
Lifetime services
Control system: Mitsubishi PLC with touch screen.
Product cut-to-length.
Engineer overseas installing and training available
15 years skillful engneers to design and make your machines
Machine detail
| |
| Suitable material: glazed/ galvanize/ color coated steel | |
| Steel thickness: 03.-0.8mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 10*1.7*1.6m | |
| Machine weight: About 8 tons |
|
Manual decoiler
|
| Loading capacity: 5ton (10ton for option) |
| Coil inner diameters: 508/610mm |
| Max coil width: 1250mm |
| Coil car: For option |
| Auto decoiler motor: 4kw*2 (for 5 ton) / 5.5kw*2 (for 10 ton) |
|
Feeding device Pre-cutter
|
| Level device: yes |
| Film cover device: for option |
| Pre-cutter: for option |
| Cutting blade material: Cr12 mould steel |
| Cutting blade process: heat treatment |
| |
| Roller material: No. 45 forged solid steel; processed by CNC | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 72mm | |
| Transimission: By chain | |
| Main motor: 7.5 kw | |
| Forming speed: 20m/min | |
| Out put speed: 8-10 m/min | |
|
|
|

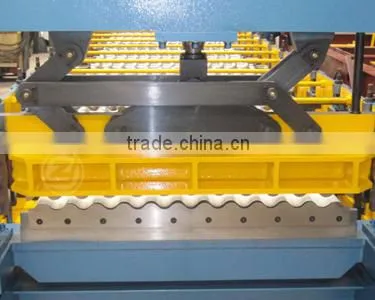

Cutter
|
Limit switches
|
| Cutter material: Cr12 mould steel | |
| Cutting treatment: Heat treatment | |
| Cutting type: Auto cut to length | |
| Motor: 2.2kw | |
|
| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
Roofing sheet pressing equipment data sheet
1.Technical parameter:
2. Components of machine:
3.Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this bending machines for sale in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
