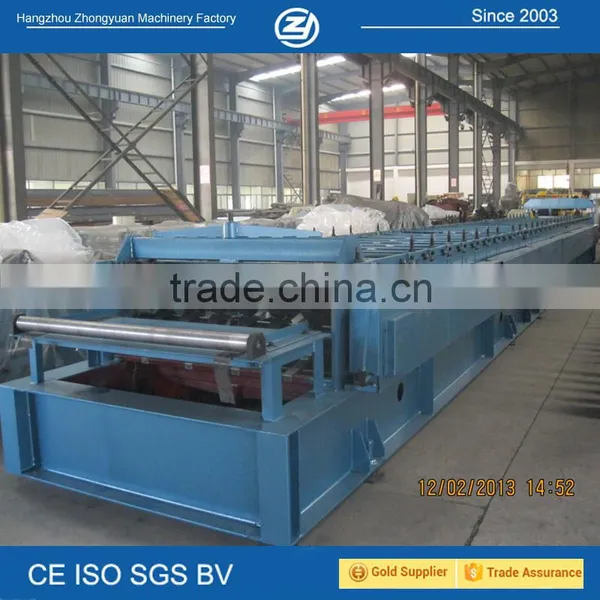

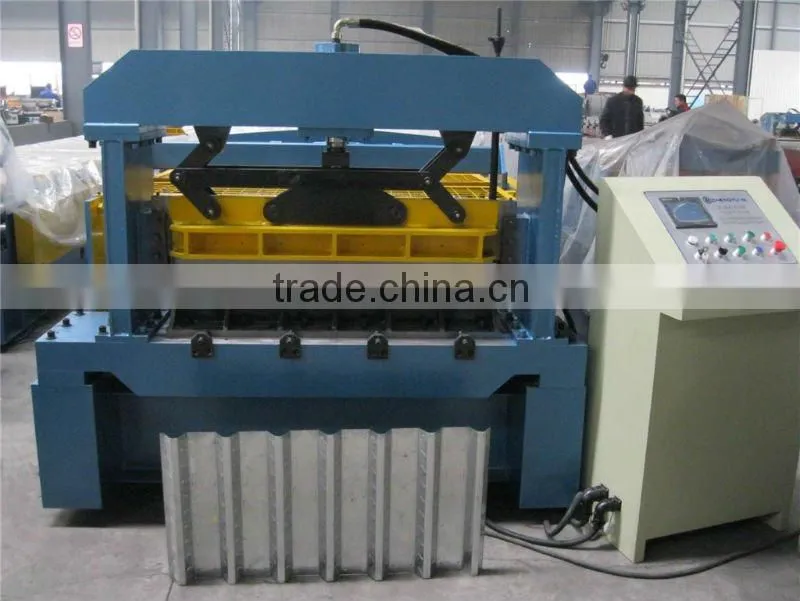

Construction Floor Decking Cold Roll Forming Machine
A good design makes machine performs outstanding.
We have 15 year experience R&D, devoted to design your machine.
1. Components of machine
2. Formng process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting – Product to Run Out Table
3.Technical parameters of machine
Item |
Specification |
|
|
Material |
Type |
galvanized coils |
Thickness |
0.8-1.2mm |
|
Yield strength |
235Mpa |
|
Forming speed |
15m/min |
|
Output speed |
8m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|

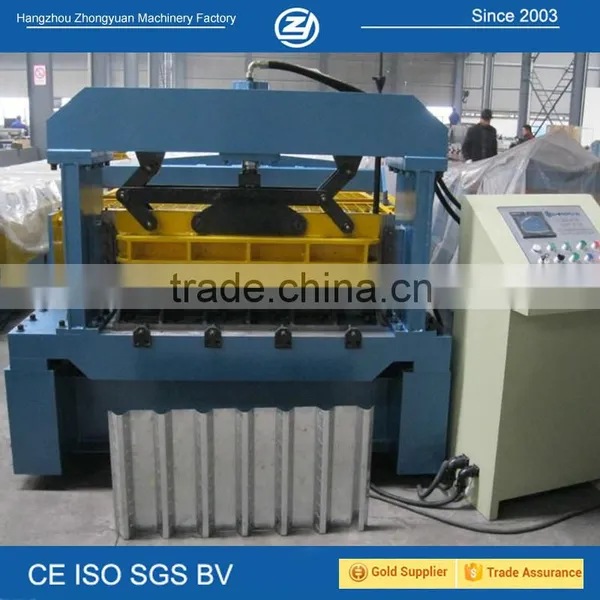

Cutting mode |
Hydraulic cutting |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor |
18.5 kw |
|
Hydraulic station motor |
5.5 kw |
|
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!
Inside of PLC Controller for reference
82mm solid steel shafts; chrome covered rollers
Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision.
What is the main process of our machine rolllers and shafts?
Produce Process
Addictional information:
| Production Capacity: | |
| Product Line Name | Production Line Capacity |
| Metal Roll Forming Machine | 150 Sets per year |
| Production Machinery: | ||
| Machine Name | Brand & Model No. | Quantity |
| Sawing machine | GB4240x60, GZK4235 | 6 |
| CNC manufacturing center | ETC3650, G-210 | 12 |
| Horizontal lathe | CW6180B | 14 |
| Milling machine | XT700D | 14 |
| Milling planer | BXM20 | 4 |
| Shaving machine | B665, B690 | 3 |
| Drilling machine | Z3050x16/1 | 3 |
| Grinding machine | ME1332A, M7160x20 | 7 |
| Testing Machinery: | |
| Machine Name | Quantity |
| Caliper | 20 |
| Micrometer | 15 |
| Depth ruler | 8 |
| Angle ruler | 6 |
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this floor decking cold roll forming machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
