Home > Products > LED Power Supply > 2015 k-53 25w series ygy power ac dc switch power supply 25w for led strips

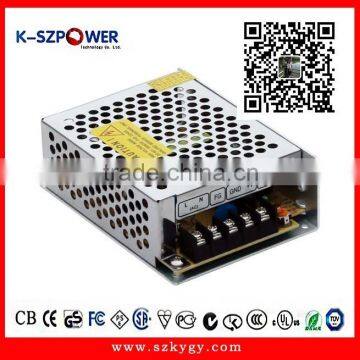

2015 k-53 25w series ygy power ac dc switch power supply 25w for led strips

FOB Price

USD $1 - $100 / Unit

500 Units(Min.Order)

Supply Ability 50000 Unit / Units per Month
Port shenzhen&Hongkong&Guangzhou
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	K-szpower
Model Number	K-53	Output Power	Other, 25wmax
Output Type	Single	Input Voltage	Other, 100-265Vac, AC 100-265vac
Output Voltage	3-48v	Output Frequency	50/60HZ
Output Current	300ma /5000mA

Product Description

25W Single Output Switching Power Supply(M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Size:85×58×36mm
AC input voltage range--------------------------85-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
K-25M-3.3	3.3V,5A	2%	100mV	67%
K-25M-5	5V,5A	2%	100mV	72%
K-25M-7.5	7.5V,3.3A	1%	100mV	73%
K-25M-12	12V,2.1A	1%	120mV	76%
K-25M-13.8	13.8V,1.8A	1%	120mV	77%
K-25M-15	15V,1.7A	1%	150mV	77%
K-25M-24	24V,1.1A	1%	200 mV	78%
K-25M-48	48V,0.5A	1%	240 mV	78%
