2015 K-57 75w Series 24V 75W Led Strip Switching Driver Led Power Supply 12v

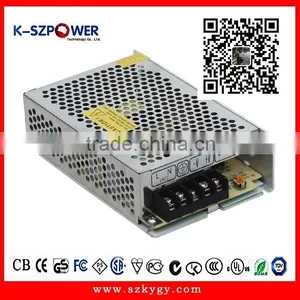

2015 K-57 75w Series 24V 75W Led Strip Switching Driver Led Power Supply 12v thumbnail-1
2015 K-57 75w Series 24V 75W Led Strip Switching Driver Led Power Supply 12v photo-1
US$ 1 - 100 MOQ: 500 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
K-szpower
Model Number:
K-57
Contact Supplier Request Quote Chat Now
Shenzhen You Guan Yuan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen&Hongkong&Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name K-szpower
Model Number K-57
Output Power Other, 75wmax
Output Type Single
Input Voltage Other, 85-264VAC, 85-264VAC
Output Voltage 3.3v ~48v
Output Frequency 50/60HZ
Output Current 1500ma /15A
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v


75W Single Output Switching Power Supply (M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:806 Size:159×98×42mm
AC input voltage range--------------------------85-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model

DC output

Load regul.

R&N

Efficiency

k-75M-3.3

3.3V,15A

2%

100mV

70%

k-75M-5

5V,15A

2%

100mV

75%

k-75M-7.5

7.5V,10A

1%

100mV

76%

k-75M-12

12V,6.25A

1%

120mV

78%

k-75M-13.8

13.8V,5.5A

1%

120mV

78%

k-75M-15

15V,5A

1%

150mV

79%

k-75M-24

24V,3.2A

1%

200 mV

80%

k-75M-48

48V,1.6A

1%

240 mV

80%



2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
 2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
2015 K-57 75w series 24V 75W led strip switching driver led power supply 12v
