Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 2015 K-61 200w Series Switching ac /dc Industrial 200w Power Supply Led Stripe With CE UL

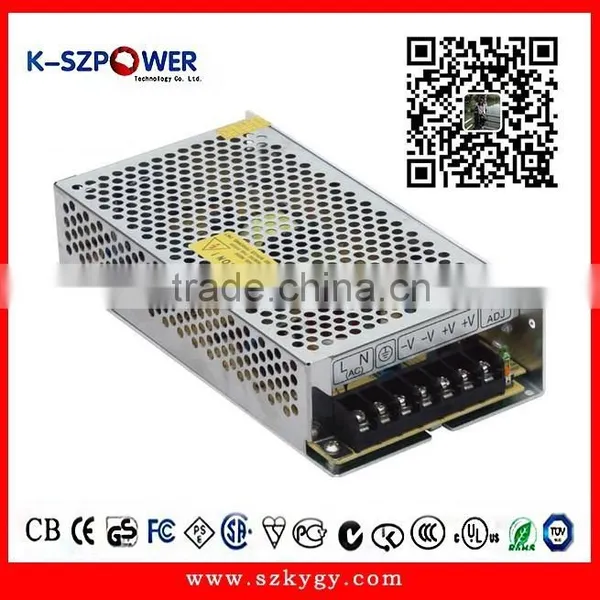

2015 K-61 200w Series Switching ac /dc Industrial 200w Power Supply Led Stripe With CE UL

2015 K-61 200w Series Switching ac /dc Industrial 200w Power Supply Led Stripe With CE UL thumbnail-1
2015 K-61 200w Series Switching ac /dc Industrial 200w Power Supply Led Stripe With CE UL photo-1
US$ 1 - 100 MOQ: 500 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
K-szpower
Model Number:
K-61
Contact Supplier Request Quote Chat Now
Shenzhen You Guan Yuan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen&Hongkong&Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name K-szpower
Model Number K-61
Output Power Other, 200wmax
Output Type Single
Input Voltage Other, 85-264VAC, 85-264VAC
Output Voltage 3.3v ~48v
Output Frequency 50/60HZ
Output Current 4.2A ~40A
2015 K-61 200w series switching ac /dc industrial 200w power supply led stripe with CE UL


200W Single Output Switching Power Supply (M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:822 Size:199×99×50mm
AC input voltage range-----------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model

DC output

Load regul.

R&N

Efficiency

K-200M-3.3

3.3V,40A

2%

100mV

75%

K-200M-5

5V,40A

2%

100mV

79%

K-200M-7.5

7.5V,26.6A

1%

100mV

79%

K-200M-12

12V,16.7A

1%

120mV

81%

K-200M-13.8

13.8V,14.5A

1%

120mV

81%

K-200M-15

15V,13.3A

1%

150mV

82%

K-200M-24

24V,8.3A

1%

200 mV

84%

K-200M-48

48V,4.2A

1%

240 mV

84%
