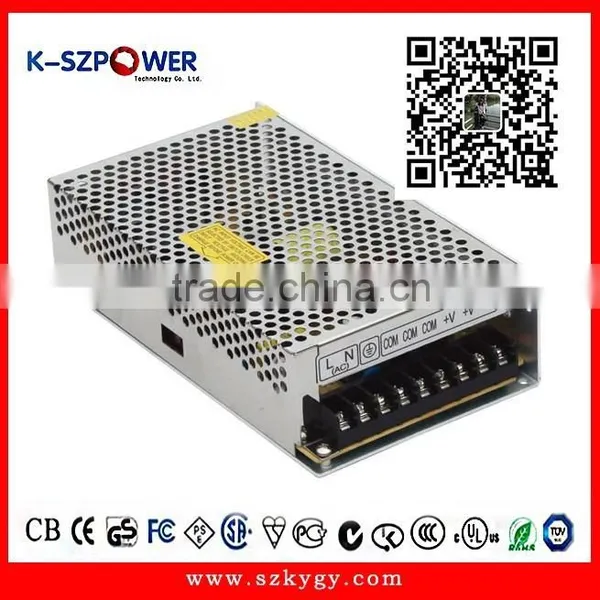

2015 K-59 120w Series Ygy Power ac dc Power Led Strip Switching Power Supply 12v 10a 24v5a With CE UL

2015 K-59 120w Series Ygy Power ac dc Power Led Strip Switching Power Supply 12v 10a 24v5a With CE UL thumbnail-1
2015 K-59 120w Series Ygy Power ac dc Power Led Strip Switching Power Supply 12v 10a 24v5a With CE UL photo-1
US$ 1 - 100 MOQ: 500 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
K-szpower
Model Number:
K-59
Contact Supplier Request Quote Chat Now
Shenzhen You Guan Yuan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen&Hongkong&Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name K-szpower
Model Number K-59
Output Power Other, 120wmax
Output Type Single
Input Voltage Other, 85-264VAC, 85-264VAC
Output Voltage 6v ~48v
Output Frequency 50/60HZ
Output Current 5A-20A
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL


120W Single Output Switching Power Supply (M Series)

Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:806 Size:159×98×42mm
AC input voltage range---------88-132VAC/ 176-264VAC selected by switch
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model

DC output

Load regul.

R&N

Efficiency

k-120M-6

6V,20A

2%

100mV

72%

k-120M-5

12V,10A

2%

100mV

78%

k-120M-15

15V,8A

1%

150mV

82%

k-120M-24

24V,5A

1%

200 mV

84%

k-120M-48

48V,5 A

1%

240 mV

84%



2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
 2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
2015 K-59 120w series ygy power ac dc power led strip switching power supply 12v 10a 24v5a with CE UL
