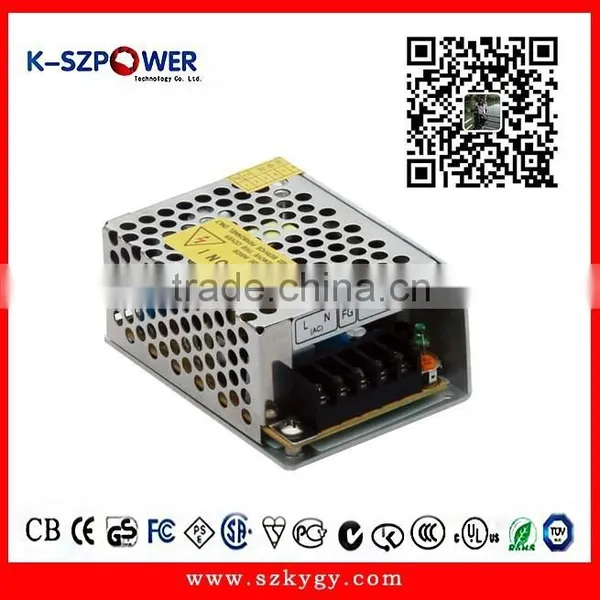

2015 K-51 15w Series Ygy Power 400w 40a Power Supply High Frequency Induction Heating Power Supply

2015 K-51 15w Series Ygy Power 400w 40a Power Supply High Frequency Induction Heating Power Supply thumbnail-1
2015 K-51 15w Series Ygy Power 400w 40a Power Supply High Frequency Induction Heating Power Supply photo-1
US$ 1 - 100 MOQ: 500 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
K-szpower
Model Number:
K-51
Contact Supplier Request Quote Chat Now
Shenzhen You Guan Yuan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen&Hongkong&Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name K-szpower
Model Number K-51
Output Power Other, 15wmax
Output Type Single
Input Voltage Other, 85-264VAC, AC 100-265vac
Output Voltage 3.3v ~48v
Output Frequency 50/60HZ
Output Current 300ma /600mA
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply


Low cost,high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Size:85×58×36mm
AC input voltage range--------------------------85-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature-----  -10-+40℃@100%,+60℃@60% load
Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model

DC output

Load regul.

R&N

Efficiency

k-15M-3.3

3.3V,3A

3%

100mV

65%

K-15M-5

5V,3A

2%

100mV

70%

K-15M-7.5

7.5V,2A

1%

100mV

71%

K-15M-12

12V,1.3A

1%

120mV

74%

K-15M-13.8

13.8V,1.1A

1%

120mV

75%

K-15M-15

15V,1A

1%

150mV

75%

K-15M-24

24V,0.7A

1%

200 mV

77%

K-15M-48

48V,0.3A

1%

240 mV

77%



2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
 2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
2015 K-51 15w series ygy power 400w 40a power supply high frequency induction heating power supply
