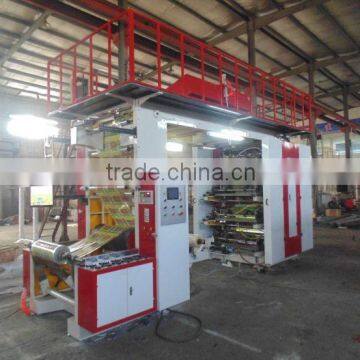

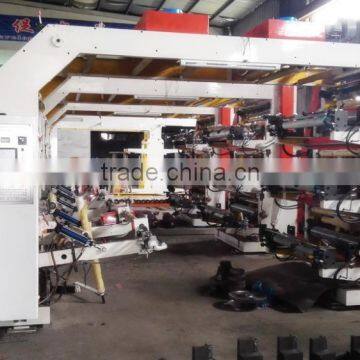

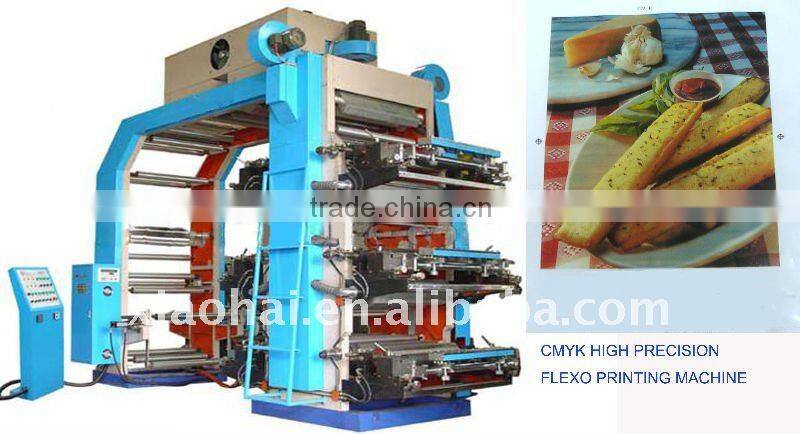

Help CenterReel to Reel Plastic Film , Paper High Speed 6 Colors Flexo Printing Machine With Anilox Roller,Doctor Blade
Related Products
-
HAS VIDEO 0.1mm Rrecision 150meter per Minute Paper Cup PrintingUS$ 150,000 - 160,000MOQ: 1 Set -
2016 New Technology ATM/POS/Fax Paper Slitting MachineUS$ 14,500 - 15,200MOQ: 1 Set
-
HAS VIDEO Two Lines Full Automatic T-shirt Bag Making MachineUS$ 1 - 9,000MOQ: 1 Set
-
Automatic Cotton BUD Making Machine With Drying and Packing Quality ChoiceUS$ 1 - 2MOQ: 1 Set
-
Medical Face Mask MakerUS$ 1 - 1,111MOQ: 1 Set
Substrates:
PVC:35~70μm,OPP:20~70μm
BOPP:20~60μm,PE:35~100μm
NY:20~50μm,PET:20~60μm
CPP:20~60μm,Paper:20~150g/m2
Main Confugurationg Specification:
1.Easy and conveniently operating,accurate color register,longer to use.
2.Adopts China TaiWan Motor,Japan frequency converter adjusting speed,saving lights,running minor trends.
3.Lower plate automatic stop ink running motor,lift plate automatic start ink running device.
4.Ink supply method:Glue net rolling Scraping blade,Singleface doctor blade 3Set.
5.Adopts special modulus straight gear driving,Printing size accuracy.
6.Have blasting heating two set device,heating adopts centre thermostatical control system and group control,cold blast sizing system.
7.Low roller adops Germany special steel processing,and specially fabrication processing,also hard chrome coverlayer of electroplate 10ounce thickness.
8. Aluminum Guide Roller: Dealing with hard oxidation,dynamic balancing,static balancing.
9.Taiwan airshaft clamp material.
10.China TaiWan pheumatic hydraulic press automatic correction control system.
11.Rewinding&unwinding Constant tension full automatic control system.
12.With lifting frame 1Set.
Model |
HYT-61000 |
Printing Width |
1000mm |
Printing Color |
6color (PC:6+0,5+1,4+2,3+3) |
Printing Length |
7.5"-70" |
Printing Plate Lifting System |
Pneumatic/Hydraulic Press Control/Manual |
Mechanical Speed |
100m/min |
Printing Speed |
80m/min |
Anilox Cylinder |
Metal:10DK~120DK(Germany) |
Register Precision |
Longitude:±0.20mm,Transverse:±0.20mm |
Rewinder/Unwinder DIA |
Φ600 |
Master Motor |
3.7kw |
Unwinder |
By cluth |
Rewinder Motor |
1.5kw |
Electrical Heater |
21kw |
Blower of Heater |
1.1kw*2 |
Blowe of Nature Wind |
60wx4 |
Inking Motor |
200w |
Master Frequency Converter |
(Panasonic)/(Toshiba)transducer Japan |
Weight |
5250kg |
Master Power |
25kw |
Dimension Size(LxWxH)(m) |
5.5*2.2*2.7 |
Main Technical and Parameter:
Printing Color: 6color
Lift and lower plater system:Japan Pneumatic/Hydraulic Press Control System

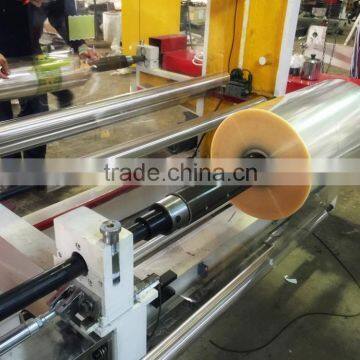

Rewinding&unwinding Paper Roller:76 mm(Inner Diameter)
Pressure of Printing: Adjusting machine
Drying Method:Electric Heating
Drying Power: 12KW – China HONGKONG
Big Air Blower:1.1KW 2PCS – China
Smaill Air Blower:60W 4PCS – China
Main Motor: 3.7KW (Reduction Ratio1:5) – China TaiWan
Master Frequency Converter:Panasonic frequency converter adjusting speed-Japan
Ink Running Motor:1PC – China TaiWan
Plain Bearing:Japan NSK
Unilateral Bearing:Germany ASNU
Aluminum Guide Roller: Dealing with hard oxidation,dynamic balancing,static balancing.
Customer Bought This Machine,Also Have Interesting To Buy Following Machines:
- 4 Colors Flexo Printing Machine
- 2 Colors Flexo Printing Machine
- 6 Colors Flexo Printing Machine
- High Speed 150meter Wide Web Flexo Printing Machine
- 50meter per minute type flexo printing machine
- Flexo Plate Making Machine For Printing Machine
- Flexo Cylinder Plate Mounter Machine
- Ultrasonic Ceramic Anilox Roller Washing Machine
