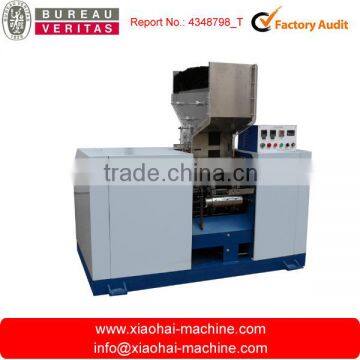

Full automatic artistic drinking straw making machine
WG-Z Series Automatic artistic straw molding machine is a bendable straw processing equipment. The entire device from input to finished product output fully automaticly, simply add artificial straight tube blank. Polypropylene straight pipe joined by forming on the top of the hopper, relying on two clamping manipulator, a master device back to back wheel. Rotating the main dial back, so that the straw through two rotatable pressure roller indentation formed on the straw. And then by the two robotic be compressed, so that was the indentation folds contraction shape the final product is automatically transported out. Main Circle usually carries 18 straws continuously run, the product has a high-speed production capacity.
Features:
mold can be heated, high production efficiency.
has a production counting function.
automatic counting, the specified batch alarms, easy manual bagging.
with automatic fault stop function.
Motor |
1.5kw inverter ( 380V 3phase) |
|
Working speed |
150--200pcs/minute |
|
|
Straw size |
Inner diameter |
5.6mm±0.05mm |
Wall thickness(single side) |
0.15~0.17mm |
|
Straw length before bending |
320mm~350mm |
|
Bending part length |
260mm~290mm |
|
Other sizes can be custom made 58teeth~60teeth | ||
Machine size |
1700mm*1300mm*1700mm |
|
Machine weight |
1000kg |
|
