napkin tissue machine
napkin tissue machine description
Automatic monolithic packing wet paper machine is a can the whole roll of base paper by unwinding, longitudinal folds, and liquid and fixed length cutting, and then the lateral fold, then after packaging film package and sealing positioning and cutting machine. The whole production process is operated by the machine, without manual contact, to ensure the health of the product.
napkin tissue machine main technical parameter
| Electric power | Three phase 380V 50HZ |
| Power | 12KW |
| Machine size | 4500×1200×2200mm(L×W×H) |
| Machine Weight | 3800kg |
| Designed production speed | 500pcs/min |
| Stable production speed | 300-500pcs/min |
| Wet wipe unfold size | (150-200)×(150-220)mm (L×W),adjustable |
| Wet wipe folded size | (75-100)×(60-80)mm(L×W) ,adjustable |
| Packing size | (145-250)×(60-120)mm,adjustable |
| Control system | PLC control system, Color touching screen, Full servo motor |
2) Raw Material Standard of napkin tissue machine
Suitable raw material | Spunlace nonwoven, dry air-laid paper |
Raw material weight | Spunlace nonwoven : 40-70g/m2 Dry air-laid paper: 50-60g/m2 |
Raw material size | (150-220)×1000mm(width×dia) |
Raw material inner dia | 76.2mm |
Packing film | PE/PET,OPP/PET |
Packaging film thickness | 0.035-0.06mm |

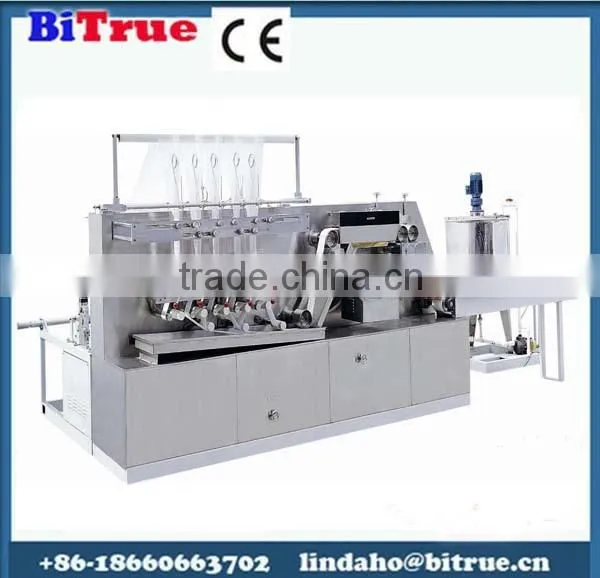

napkin tissue machine picture
napkin tissue machine sample
Packaging and shipping
Send Inquiry to This Supplier
