tissue paper folding machine
tissue paper folding machine description
Automatic monolithic packing wet paper towel machine is a can the whole roll of base paper by unwinding, longitudinal folds, and liquid and fixed length cutting, and then the lateral fold, then after packaging film package and sealing positioning and cutting machine. The whole production process is operated by the machine, without manual contact, to ensure the health of the product.
tissue paper folding machine main technical parameter
Paper: spun lace non-woven cloth, hot rolled
The parent rolls specifications: Max W350mm, 1400mm
The number of axles set: 12 axis base paper, 12 eye detection
Ventilation shaft diameter: 3"
Applicable package material: BOPP PET/AL/PE PET/PE and other heat sealing material
Film specifications: Max W420mm, 350mm
Axis number setting: 2 - axis roll film, no stop automatic transfer
Ventilation shaft diameter: 3"
Application: transparent and non transparent
Label size: Max W100mm, 400mm
Axis number setting: 2 axis label affixed, automatic conversion (can be set to the safe).
Ventilation shaft diameter: 3"
Folding style: independent and continuous extraction
Wipes size: L120-220mm W90-115mm
Expanded size: W150-330mm L12 Wipes size 0-220mm
Package size: L150-300mm, W80-120mm, H10-80mm
Production speed: 50 /min&4000 chip /min, the first one
Floor area: W2500mm H2100mm L16000mm
Power requirements: 50/60Hz 18KW AC380V
Air source requirements: 250L/min 0.6-0.8Mpa
Machine net weight: about 10000kg
Optional configuration: date marking machine line metal detector
tissue paper folding machine main features:
1.Fully automatic folding & packaging
2.Compact and hygienic design and structure
3.Control system: PLC logic control system, PC colored touchscreen data entry
4. Servo motion control, product, package and film graphics positioning are electronically
interconnected.
5.Easy operation with interface system
6.AC motor with frequency inverter speed control, synchro and phasing
7. Easy changeover and fast changeover time
8. Minimum maintenance - fewer mechanical parts, central wireway system, and lube for life
components
9.Electric eye auto-tracking, date printing device, perforating device and labelling device
10. Integrated temperature control, ensure sealing strength and quality
11.Stacking: auto-counting, quantity changeable stacking system
12.Puddling and wetting: two lotion tanks with puddlers
13.Package width adjustable, with package corner erecting device
tissue paper folding machine Function & Character
1.Control system: multi axis motion controller
2.Drive unit: servo motor
3.Operation interface: LCD touch screen
4.Packing method: end seal type packing
5.Frequency dividing detection: distribution, film, and standard interface detection
7.Automatic transfer: automatic transfer of film and film, automatic conversion
8.Flow control: 2.5-4 times flow meter measure and control, no residual liquid recovery
9.Injection method: 12 liquid pipe independent spray
10.Stirred tank: 2 600L stainless steel mixing tank
11.Liquid level control: automatic control of electronic detection

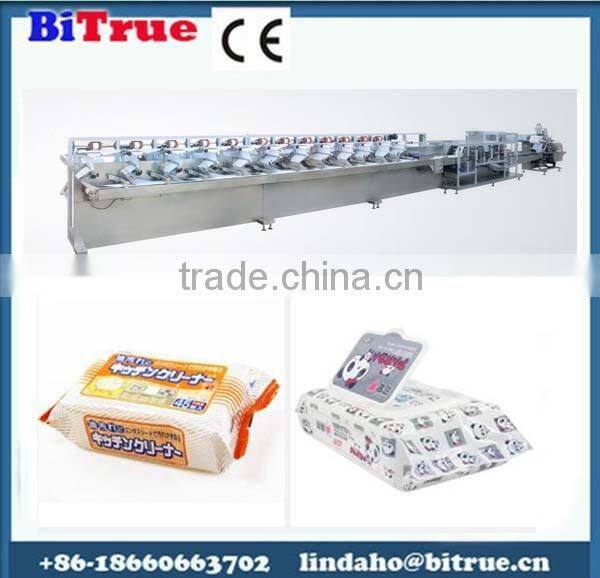

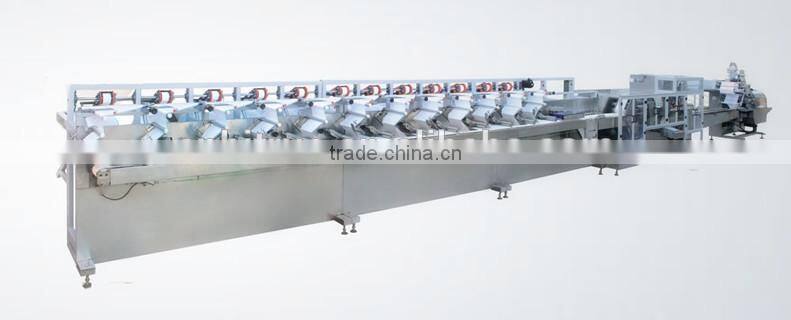

tissue paper folding machine picture

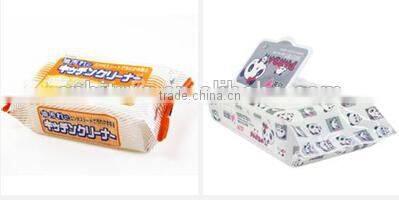

tissue paper folding machine sample
Packaging and shipping
