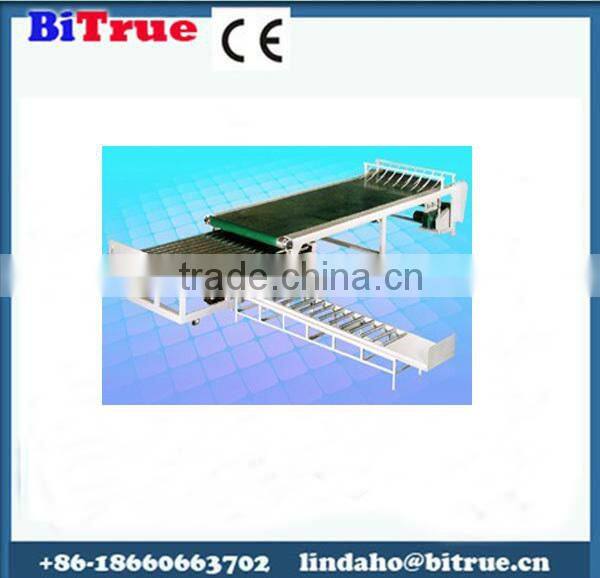

corrugated carton flexo printing machine
The description of corrugated carton flexo printing machine:
This production line is available in large amount automatic production, which can produce corrugated paperboard correspond to national standard with high quality, and adopted concentrated control, operated and repaired easily, safely, reliable, reducing manpower, This production line adopts international energy can save technology with oil heating, which can save 40 percents energy than steam heating, So this can reduce costs effectively. It's an economical production in big, middle paperboard company.
1. Total Length: 40-55m
2. Total Power: 55kw
3. Two kind of frame with shaft and frame without shaft, provide the customer with the choice.
4. Corrugated paperboard marching: diameter of corrugated roller: 240-320mm, electric adjust speed motor used.
5. Double cylinder gum mounting machine: On the adoption, inside two layers draw the gun, can carry the paper lead the paper roller.
6. Oven: total length 7.8m, combined with 9-13 heating flocks.
7. Setting Part: total length 3.8-5 m, combined with some pairs of symmetrical shafts.
8. Horizontal, Length uays slicing machine: Common knife or super thin knife selected based on customer's demand, high automatically, handy operating.
9. Boiler: consumption of cad: 50kg/h , conventional pressure, almost no oil consumption as temperature raised from 0oC to working temperature in a hour.
features of corrugated carton flexo printing machine:
Design speed: 80m/min
Effective width :1400mm-2200mm
Diameter of roller:φ270mm
Driving speed-reduce box adopts immersion oil lubricating , low noise , gimbal transmission ,isolated power source
Upper roller ,pressure roller . Gluing roller lift can be controlled by pneumatically
Feeding paper adopts vacuum adsorption ,with air volume device and keep stable corrugated roller style when in high speed
Shaft of Corrugated roller and pressure roller adopts grease lubricating
Gluing part adopts automatically circulation applying glue
Upper and lower roller adopts 52CrMo excellent alloy steel and heat processing , hardness is HRC58o-60 degree after grinding
The surface of gluing roller is anilox engraving and chrome-plate
Compartment gluing device is manual or electrical
The gluing part can be moving independently or not when stop machine , main motor frequency control
advantages of corrugated carton flexo printing machine:
The machine is manufactured with the aims to meet the tough operation requirement,reliable ,good function and safe,Hence ,standard parts ,fast set-up and easy to operate are our advantages
Best materical and part are used
Gest train are hardened and ground (hardness>60HRC)
Automatic zero setting and return to the pre-set position after open
Chrome plated shafts
The machine is also equipped with an automatic lubricating system that keeps the lubricant levels in each unit uniform at all times
PLC with multifunction touch screen control
European standard specifications for all electrical and pneumatic components
Repeat orders storing and recalling for fast set-up
Main motor is inter-locked,only operatable when units are locked close
automatic feeder flexo printer slotter paper box cutter
Electrical control of corrugated carton flexo printing machine:
Electrical control system uses the microcomputer control, realized visual display from the feeding, die cutting, delivery each working state and troubleshooting method. With various safety devices to guarantee machine and human safety. Imported Japan Stepless Inverter-controlled main motor. Efficiency enhancement type high power, low energy consumption, lower noise.
The machine adopts Japan OMRON PLC program control, all kinds of electrical components, the detection switch are used German Siemens, French Schneider and other famous international brands, making the performance more stable and reliable. All electronic components are CE standard.
