tissue packing machine
tissue packing machine description
Using imported PLC program control system, the production of color touch screen, servo electric appliance, frequency conversion and imported electric appliance can be used to set the length of the product, the number of stacking pieces and the speed of production directly on the touch screen. 5-80 wipes packaging machine with our production line to do. Fully automatic completion of cutting and folding - plus liquid - cutting - counting - stacking – output
tissue packing machine main technical parameter
| Electric power | Three phase 380V 50HZ |
| Power | 18KW |
| Machine size | 9500*1200*2400 mm |
| Machine Weight | 6500kg |
| Designed production speed | 120bag/min |
| Stable production speed | 40-50bag/min |
| Wet wipe unfold size | 180 *(170-220)mm (L×W) |
| Wet wipe folded size | 90*(65-80)mm (L×W) |
| Packing size | (145-200)*(70-85)mm (L×W) |
| Folding way | "Z" size(not interfold) |
| Control system |
PLC control system, Color touching screen, Quantity changeable pile system |
| Wetting system | Automatic wetting liquid and recycle system |
| Count system | Automatic electronic meter, Set through liquid sreen |
| Feature |
Automatic electronic counter, Electrical eye tracks automatically |
| Option equipment | Steel stainless agitate tank |
2) Raw Material Standard of tissue packing machine
Suitable raw material |
Spunlace nonwoven, Hot-rolled non-woven |
Raw material weight |
Spunlace nonwoven: 40-80g/m2 |
Raw material size |
(1000-1500)×1000mm(width×dia) |
Raw material inner dia |
3inch, 76.2mm |
Packing film |
PE/PET, OPP/PET |
| Packing film thickness | 0.035-0.06mm |
tissue packing machine feature
1. The device from large volumes of non-woven material first automatic of > n auto type folding, excision and automatic liquid, automatic cutting, automatic counting, automatic stacking, automatic output products, the entire line is finished automatically.
2. the equipment processing all kinds of nonwoven cloth hot air; hot rolling; non-woven products.
3 .equipment is equipped with 1.2 sets of two meters online cutting device, pneumatic automatic feeding device, gas - up - shaft, pneumatic wide belt conveyer.
4 .device is equipped with a set of folding device, can be folded, with more than half of N, adjust the tension device.
5 .the whole system adopts imported conveyer belt conveyor, firm, durable and none polluting.
6. the equipment is equipped with a water free alarm system and a complete set of automatic liquid adding system (including stainless steel sterilizing liquid mixing cylinder)
7. equipment electrical control system: the use of imported PLC program control system, with color touch screen, servo electric, frequency conversion, import electrical control of production, can be directly on the touch screen to set the product length, stacking number, production rate, human operation, greatly improve the efficiency and product rate.
8. electrical wiring is reasonable, beautiful and easy to operate.
9. compact structure, high speed, stable performance, stable performance, simple operation, equipment sealing plate and related to the product parts all adopt stainless steel material production, accord with health products production conditions, the design concept is advanced, has been domestic and foreign users.
tissue packing machine applications:
1.This machine is suitable for wet tissue packaging, toweltoilet paper packaging mask packaging,
napkins, facial tissue packaging, etc.
2.The wet wipes manufacturing packaging machine is a fully automated production line can be
separated into two parts, the front part has wetting functions,also,you can adding other functions according to customer requirements,the other parts iswet tissue packaging machine.
You can buy the packaging machine alone.
3.Working steps: raw material--slitting--folding-wetting--cutting--packing .

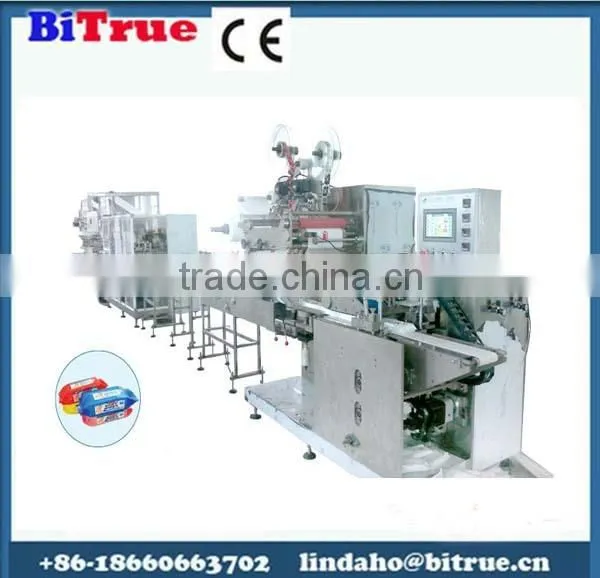

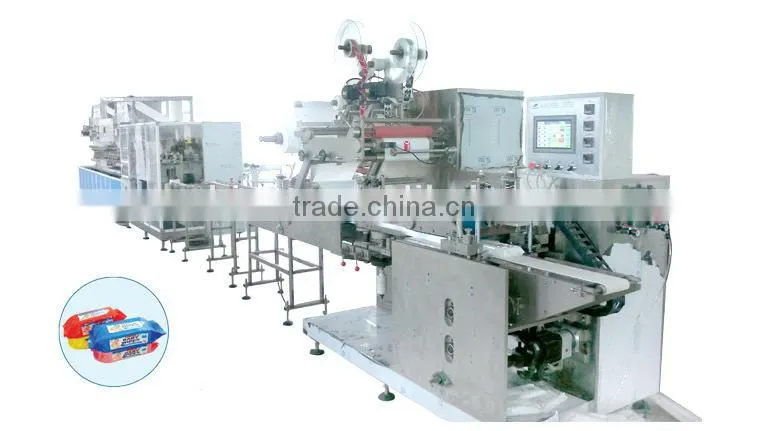

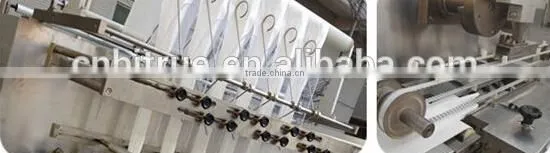

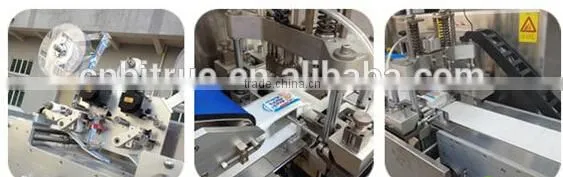

tissue packing machine picture

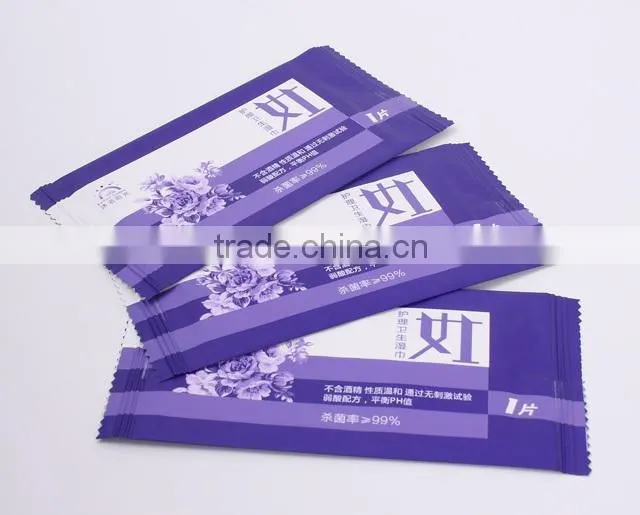

tissue packing machine sample
