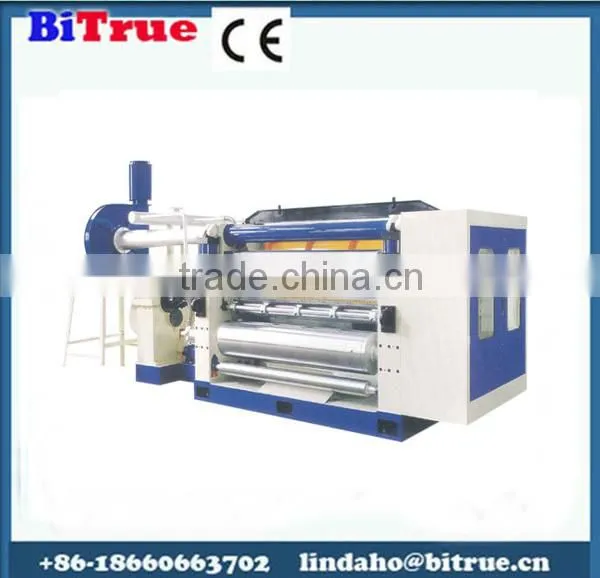

Corrugated Making Machine

corrugated making machine

Description of corrugated making machine:

This line is the special equipment for corrugated board production. It may mainly includes mill roll stand, single facer, conveyor bridge, glue machine, double facer, slitter, cut-off, stacker and steam(or oil) heating system and glue preparing and supplying system.

We offer corrugated lines of advanced, medium and simple level, for single wall, double wall and triple wall board production, with speeds varying from 40m/min to 150m/min, widths available from 1400mm to 2500mm.

We are the biggest manufacturer for corrugated carton machinery in North China.

The features of our machine are high autoimmunization, easy operation and maintenance, high efficiency, good quality of paperboard, compact structure and nice appearance.

Uses and features of corrugated making machine:

advantages of corrugated making machine:

• Numerical control thin blade corrugated cardboard nc slitter scorer
• Design speed: 200m/min
• Design width: 1400mm
• 999 group of orders storage is available, changing order automatically without stopping the line, manual changing order is available too.
• Just need 3-8seconds for the quick order changing, with the helical cross cutter machine together to achieve qucik order changing without speed down.
• Automatically follow up the speed of production line, synchronize with the production, also can be implanted into production management system.
• The CNC control system is composed of imported high quality industrial PC and PLC.
•  Equipped with three type of scores: concave-convex(3ply), convex-concave(5ply), convex-flat, these 3 type could be electrical converted automatically, as well as the depth of scores.
• The blades are made of tungsten alloy steel, the lifetime will over 3 million meter.
• Both automatic self blade sharpening system and manual blade sharpening system are available, and both systems could be operated without stopping the line, which improves the working efficiency.
• Equipped with imported synchronous belt drive device, which has the advantages of high precision and low noise.

Electrical control of corrugated making machine:

  Electrical control system uses the microcomputer control, realized visual display from the feeding, die cutting, delivery each working state and troubleshooting method. With various safety devices to guarantee machine and human safety. Imported Japan Stepless Inverter-controlled main motor. Efficiency enhancement type high power, low energy consumption, lower noise.

  The machine adopts Japan OMRON PLC program control, all kinds of electrical components, the detection switch are used German Siemens, French Schneider and other famous international brands, making the performance more stable and reliable. All electronic components are CE standard.
