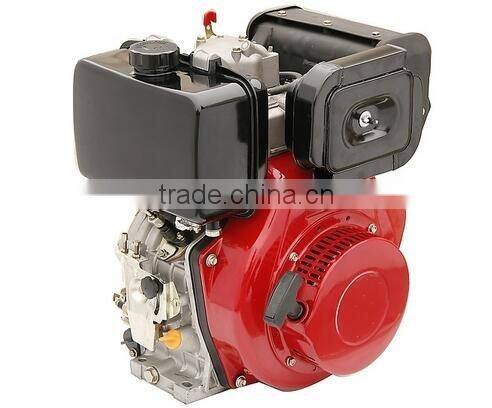

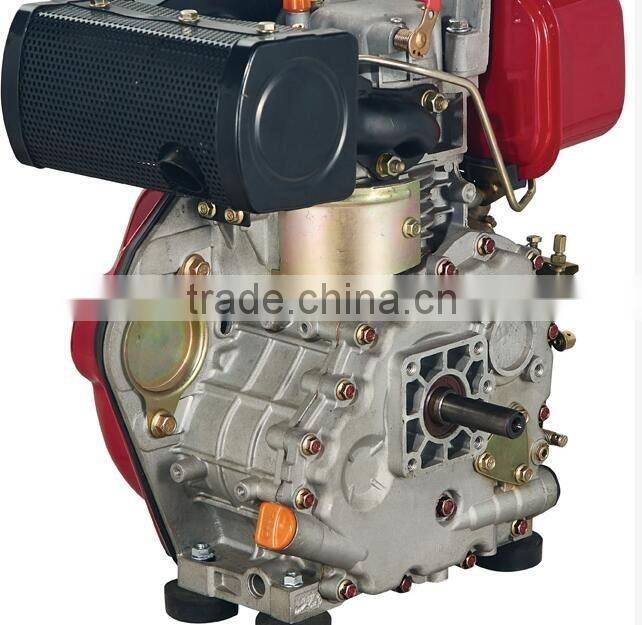

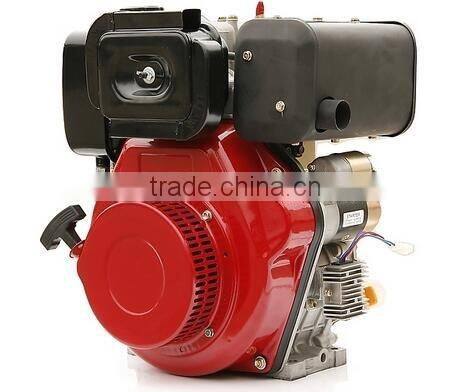

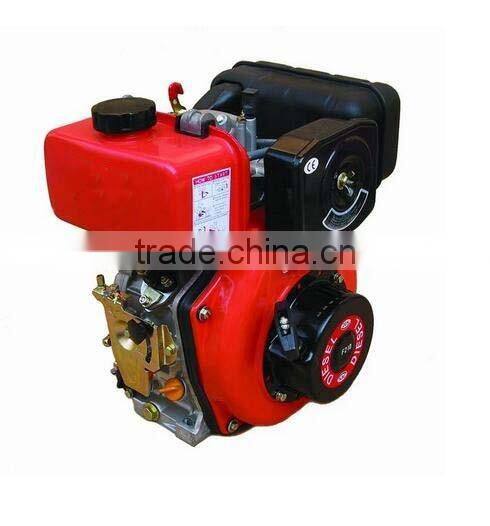

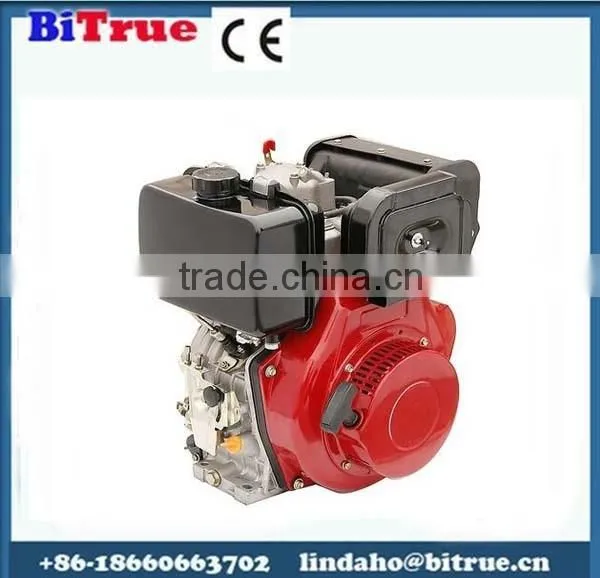

Power for generator,water pump,tiller etc.agricultural area, or industrial area.
1.Direct injection combustion system
2.Efficient air cleaner system
3.Compact in structure and small in size
4.Different type of PTO shafts meet different demands
5.Recoil starter and optional electric starting
google search engine parameter
| Model | 170F | 178F | 186FA | 188FA | 192FB | |||||
| Type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | |||||||||
| Combustion System | Direct Injection | |||||||||
| Bore×Stroke(mm) | 70×55 | 78×62 | 86×72 | 88×75 | 92×75 | |||||
| Displacement capacity(cc) | 211 | 296 | 418 | 438 | 498 | |||||
| Speed(rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Max.output(kw) | 2.8 | 3 | 4.1 | 4.4 | 6.5 | 7.1 | 7.5 | 8 | 8.5 | 9 |
| Rated output(kw) | 2.5 | 2.8 | 3.7 | 4 | 5.9 | 6.5 | 7 | 7.5 | 8 | 8.5 |
| Fuel | o# or-10# light diesel oil | |||||||||
| Fuel oil tank volume(l) | 2.5 | 3.5 | 5.5 | 5.5 | 5.5 | |||||
| Lubricatiom oil volume(l) | 0.75 | 1.1 | 1.65 | 1.65 | 1.65 | |||||
| Fuel oil consumption rate(g/kw.h) | 295 | 295 | 280 | 280 | 280 | |||||
| Starting system | Recoil or Electric | |||||||||
| PTO rotation direction | It is clockwise as viewing from the flywheel end | |||||||||
| Dimension(mm) | 332×348×416 | 383×412×450 | 417×470×494 | 510x470x560 | ||||||
| Net weight(kg) | 26 | 33 | 44 | 45 | 58 | |||||
| 20FT QTY | 480 | 350 | 240 | 220 | ||||||
google search engine feature
Economic
This type is the larger type of this series.High Compression ratio,high efficiency.Low fuel
consumption rate till 283g/kw.h.The muffler system greatly lowers exhaust noise.With the addition of
advanced design air induction system,intake noise is reduced to a low level.
Advanced
Unique gear drive is adopted in the engine,which can reduce noise and vibration of the engine.It can bear many hard working conditions.The fuel system assures high efficiency operation:Precision machined and precisely timed injection pump and direct-injection design leads to lower fuel consumption and reduced tailpipe emissions.
Reasonable
Light weight and compact design,suit for wide application scope,such as agricultural equipment,
garden machinery,engineering machines... .
Main features: single cylinder,4 stroke,vertical,air cooled.Equip with muffler,reduce a lot of noise from exhaust noise.The design of cylinder block,engine cover and valve train can reduce noise level.
Others
The engine can start by recoil or electric ,easy and fast.
All the engines achieve CE, ISO90001 and many domestic standards.
google search engine advantage
1. Portable gasoline generator
2. Economic, low fuel consumption.
3. Compact in structure, low in noise & pollution and high in efficiency.
4. Stable voltage and frequency.
5. Overload protection for safety operation.
6. Exceptional performance at reasonable price.
7. High quality power output
8. Qualified mechanical seal device
9.Compact in structure and convenient for carry
10. Easy starting by both recoil starting and electric starting
11.Special balancer shaft inside reduces the vibration to the minimum level
google search engine picture
Packaging and shipping
Packaging:
1. Plastic Foam
2. Wooden Case
Shipping
1. Plastic for full container load
2. Wooden Case for Less container load
our services
1. Warranty:
Our all products with 1 year warranty.
2. OEM Acceptable:
We accept your brand and customize packing carton available
In follow orders, we can provide spare parts charge lower price.
3. Samples:
Sample is available for checking our quality.
4. Delivery time:
Either sample order or batch order.
