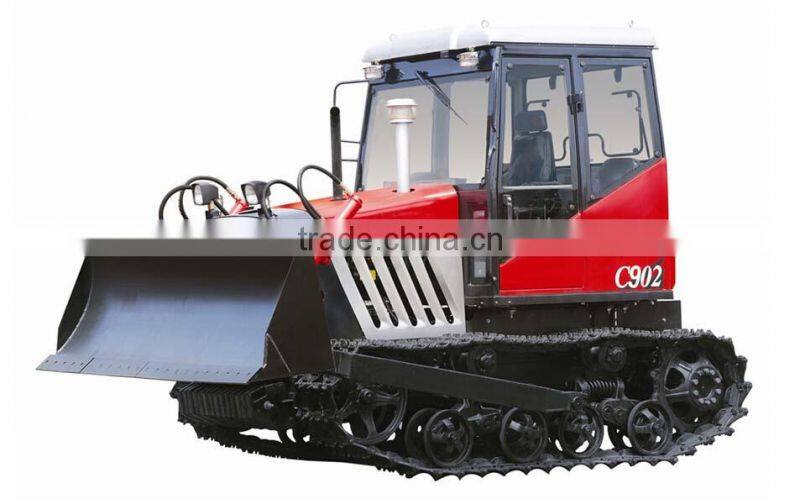

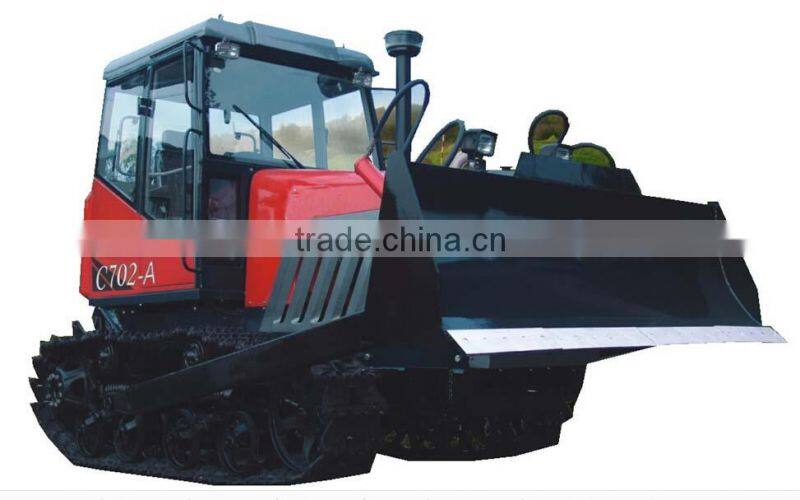

70-90HP crawler 4wd tractor
4wd tractor specifications
The distributor of the hydraulic system is 2-valve distributor, and the joystick is in the middle position for convenient and low-effort operation.
The utilization of hydraulic power steering greatly reduces the driver’s labor intensity.
The novel enclosed cab can be equipped with an air conditioning system for high comfort.
4wd tractor parameter
Model |
C702-A |
C802 |
C902 |
Tractor | |||
Overall dimension with dozer blade |
4870×2462×2766mm |
||
Overall dimension without dozer blade |
4466×1835×2766mm |
||
Min. operating mass |
6630mm with dozer blade |
6890mm without dozer blade |
|
Track gauge |
1435mm |
||
Wheelbase |
1622mm |
||
Track shoe width |
390mm |
||
Ground pressure |
47.4kPa with dozer blade |
49.2kPa without dozer blade |
|
Diesel engine | |||
Model |
LR4B3-22 |
LR4A3Z-22 |
LR6B5-22 |
Type |
In-line, water cooled, four-stroke, supercharged |
In-line, water cooled, four-stroke |
|
Rated power and rotating speed |
51.5kw/2200rpm |
58.8kw/2200rpm |
66.2kw/2200rpm |
Gearbox | |||
Gear shift (F/R) |
4/2 |
||
Speed range (F/R) |
3.67-9.03/3.51-5.59km/h |
||
Power of PTO shaft |
44kw |
49kw |
56kw |
PTO rotating speed |
750rpm |
||
Clutch |
Double disc, single acting |
||
Working device | |||
Suspension type |
Rear-mounted two-point or three-point suspension type Ⅱ |
||
Plough depth control method |
Height adjustable |
||
Lifting force |
14KN |
||
Size of dozer blade |
2462×850mm |
||
Embedded depth of dozer blade |
290mm |
||
4wd tractor feature
1.The 70-90HP crawler tractor is manufactured with fully enclosed cab. Heating system, air condition, and audio system are optional. Besides the broad vision, users can also enjoy the nice appearance and the comfortable operation.
2.For optimal trafficability and steering performance, this range of agricultural vehicle can be designed with rubber track.
3.The utilization of hydraulic power steering gear greatly reduces driver’s labor intensity.
4.To obtain good reliability, the rubber tracked crawler adopts simple beam structure for the final gear.
5.The new seal structure for the rear gear of this 70-90HP crawler tractor can reduce the steering oil intake.
6.The crawler tractor with cab adopts 4F+2R sliding-gear transmission. The reasonable gear range makes it suitable for farmland and bulldozing.
7. Equipped with the diesel engine produced on the basis of British technology, the diesel crawler tractor is quite popular due to the large torque, powerful overload capacity, low fuel consumption, and environmental protection.
4wd tractor advantage
1. Appearance with a new streamlined design, high-grade paint, bright colors, beautiful
and stylish.
2. Match dragged YTO engine power, low fuel consumption, better power ability and economy.
3. Full hydraulic steering system, light and flexible of manipulation, small turning radius and good maneuverability.
4. Full stand-alone power output shaft, which can meet the demand of rotary tillage,
straw, harvesting, planting, fertilizing and other operations.
5. This caterpillar tractor can use rubber track, which has the advantages of light weight, low noise and vibration. Wide track is also available for use in wetlands (optional).
6.The tractor is ergonomically designed for easy operation so as to reduce labor intensity of the driver.
7.The main clutch adopts new structure, resulting in longer service life.

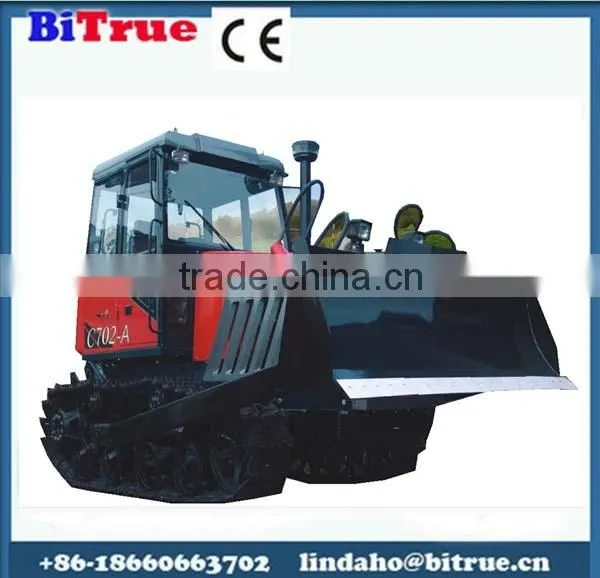

4wd tractor picture
