tractors used in agriculture
- 5000 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Condition: | New | Type: | Walking Tractor | By wheel: | 2WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 12-22hp |
Certificate: | CE | Brand Name: | BT | Model Number: | 15L/15L/18L |
Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
tractors used in agriculture
tractors used in agriculture specifications
a. Suitable for use in paddy fields,dry fields,orchards,vegetable gardens and hilly lands with a little inclination
b. Used for ploughing, rototilling,harrowing in paddy fields, Harvesting, frilling, ditching,and transportation, if suitable farm implements or accessories are attached
c. It can also be extensively used as a stationary power source for small scale drainage and irrigation,sprinkling,grain threshing, cotton ginning,flour milling, and fodder cutting
Model of Power Tiller | 12L | 15L | 18L | |
Structure weight | Without rotavator | 350 kg | 360 kg | 380 kg |
With rotavator | 460 kg | 470 kg | 480 kg | |
Working weight | With rotavator | 503 kg | 513 kg | 523 kg |
Turning speed of rototilling shaft | 199/250 rpm | |||
Overall dimensions (L×W×H) | 2950×980×1240 mm | |||
Number of blades | 18/20 PCS | |||
Rototilling width | 600 mm | |||
Type of tractor | Single axle, dual-purpose for both traction & drive | |||
Travelling speed | Forward | 1.41, 2.51, 4.21, 5.22, 9.27, 15.56 Km/h | 1.55, 2.76, 4.63, 5.74, 10.19, 17.11 Km/h | |
Reverse | 1.11, 4.12 Km/h | 1.22, 4.53 Km/h | ||
Type size | 6.00-12 | |||
Wheel track | 810, 750, 690, 570 mm (normally 810mm) | |||
Min. ground clearance | 210 mm | |||
Min. turning radius | 1.1 m with no rotavator | |||
Model of engine | ZS195N | ZS1100N | ZS1105N | |
Type of engine | Horizontal 4-stroke | |||
Bore ×stroke | 95×115 mm | 100×115 mm | 105×115 mm | |
Total displacement | 0.815 L | 0.903 L | 0.9959 L | |
Compression ratio | 20:1 | 20:1 | 17:1 | |
Turing speed of crankshaft | 2000 rpm | 2200 rpm | 2200 rpm | |
1-hour rated output | 9.7/13.2KW/hp | 12.13/16.5KW/hp | 13.34/18.15KW/hp | |
12-hour rated output | 8.82/12 KW/hp | 11.03/15 KW/hp | 12.13/16.5 KW/hp | |
Specific fuel consumption | ≤245 g/kw.h | ≤245 g/kw.h | ≤246.2 g/kw.h | |
Specific lube oil consumption | ≤2.00 g/kw.h | ≤2.04 g/kw.h | ≤2.00 g/kw.h | |
Cooling mode | Condenser (Radiator) | |||
Main farm implements (optional) | Anti-skid steel wheel Model 100-680; Double-furrow plough Model 1LS-220; Disk plough Model 1LS-220Y Power driven disk plough Model 1LYQ-320; Sprinkler Model 8Y-80; Swather/reaper Model 4GL-120; Trailer 7C-1.5 (Standard); Trailer 7C-1.5BH (Hydraulic dumping) |
tractors used in agriculture advantage
1. Beautiful outer appearance, large capacity fuel tank, the engine works longer
2.Single balance, engines work more stable
3. The specific fuel is low, the engines work more economics
4.Excellent start ability, easy to start
5. Oil bath air-filter makes the engine more suitable to the bad circumstance
tractors used in agriculture main features
*Farm Hand Tractors is the kind of traction and driving,it has compact structure,
flexible operation,high horsepower,light weight and good passing ability.
*Farm Hand Tractors has a wide range of uses,with different farm tools for different
farm operations.
*Farm Hand Tractors enjoys the reputation of stable performance,good reliability
strong applicability.
*According to the actual needs,customers can match ther models of diesel engine
which matching power is less than the specified value.
tractors used in agriculture characteristics
1.This series of walking tractor uses traction power as well as driven power.
2. It has compact structure, reliable and durable performance, flexible operation, good trafficability characteristic, and passenger accommodation.
3.15L and 18L have larger power and higher efficiency than GN-12L type. It can be applied to the cultivation in paddy field, dry farm, orchard, vegetable garden, and hills.
4.It can also be equipped with some agricultural implements and accessories to be used for ploughing, rotary tillage, harrowing, ditching, sowing, reaping, transportation, and other works.
5. It can be used as the power of drainage-irrigation, sprinkling irrigation, threshing, milling, feed processing, and other stationary work.
tractors used in agriculture product detail
a. Tractorsurface is treated by three layers as priming paint, surface paint and shining paint for better erosion resistance use reinforced transmission case for firmer structure
b. Hang frame and wheel rim adopt nodular cast iron materials for casting, which is abrasion-resist and impact-resist with longer life span equip with special and durable brand tyres
c. All gears adopt national brand gears with abrasion-resistance, lower noise and more reliable quality
d. Manipulating shaft such as gearlever etc should be plating treated twice for anti-abrasion and anti-erosion and durable usage
two wheel tractor application:
*Farm Hand Tractors is used in paddy field,dry land,orchard,vegetable garden,
hilly land farming.
*With agricultural machinery and accessories for the corresponding,it can plough,
rotary tillage,harrow land,ditching,sowing,harvesting,transportation and other
operations, but also can be used as irrigation and drainage,irrigation,threshing,
grinding, feed processing.

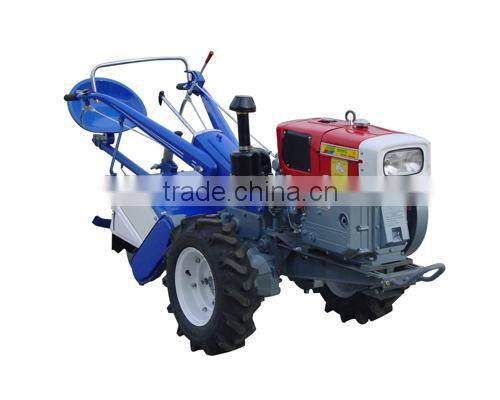

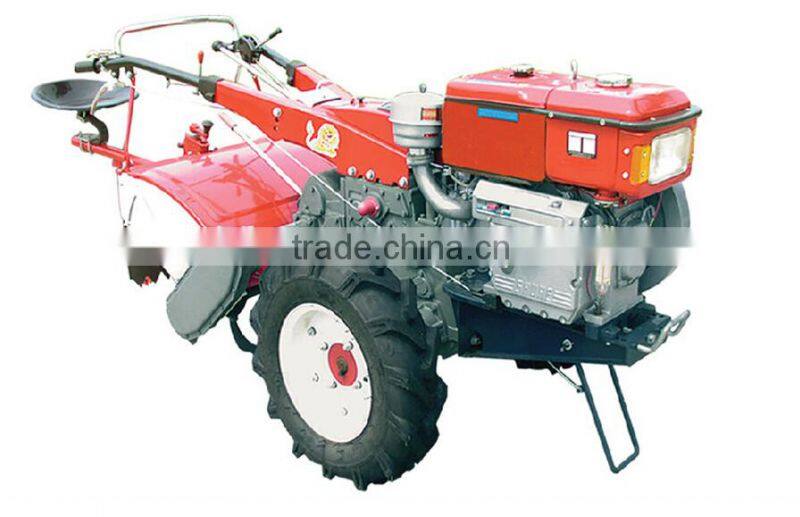

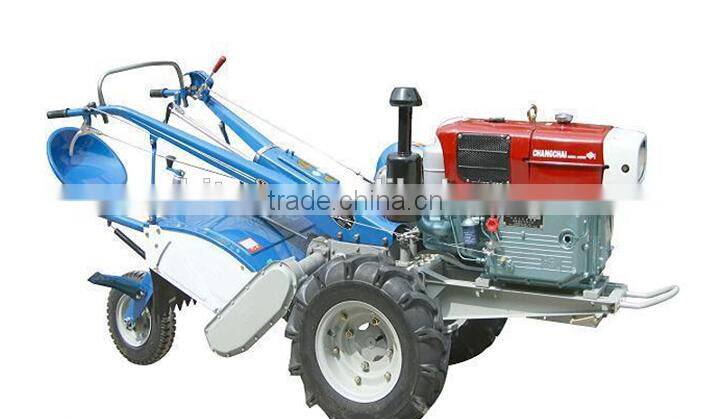

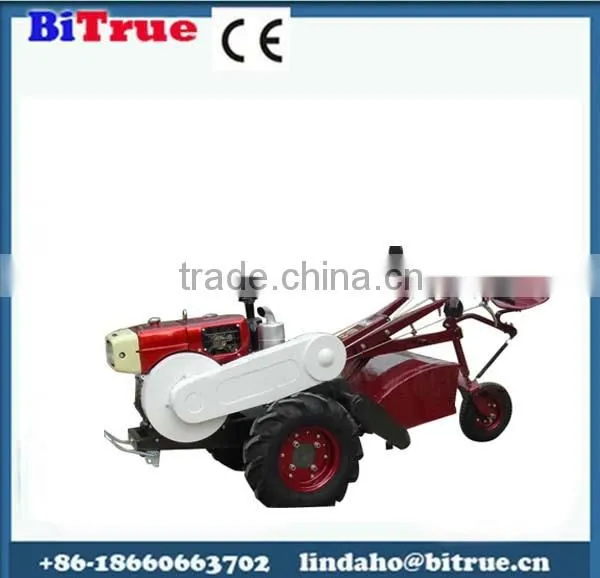

two wheel tractor picture
two wheel tractor working show
packaging and shipping
