Tractor Cabs

Tractor Cabs thumbnail-1
Tractor Cabs photo-1
US$ 5,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Bitrue I/E Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Other, Farm Tractor, Farm Tractor
Drive Type Gear Drive
Power(W) 100-130HP
Certificate CE
Brand Name BT
Model Number 100-130HP wheeled tractor
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

                                                                                    tractor cabs

tractor cabs specifications

1.Adopt DONGFANGHONG diesel engines, better reliability, more back coefficient for torsion;

2.Clutch with independent operation and double actions;

3.Gear-box shows 16 forwards, 8 returns, shift in mesh;

4.Driving force output device with postposition, peaceful and stable transmission, stronger bear the weight of loading;

5.Adopt front-wheel turning with full liquid-pressure and independent oil way, turn agilely, reliably, power-saving;

6.Adopt strong pressure lifter, independent oil supply, system performance reliable, multi-liquid output optional;

7.The final driving is planet-gear style, smaller volume, bigger decelerating ratio;

8.Istalled adjustable chair with elasticity and shock absorption, comfortable driving;

9.The whole trator is beautiful, taste, modern, fashion.



tractor cabs parameter



Model

X1004

X1104

X1204

X1254

X1304

Tractor

Drive type

4×4

Dimension

5010×2192×3060 mm

5040×2255×3060

mm

5040×2380×2100 mm

5050×2370×2890

mm

Wheel base

2688.5 mm

Min. ground clearance

450 mm

470 mm

Min. operating mass

4750kg

4820kg

4850kg

4910kg

Tire size (F/R)

14.9-24

/16.9-38

14.9-26

/18.4-38

Wheel track (F/R)

1672-2003

/1600-2200 mm

1672-2003

/1662-2262 mm

1822-2153

/1662-2262 mm

Gear shift (F/R)

12/4

Speed range (F/R)

2.06-28.4

/4.95-13.28 km/h

2.19-29.63

/4.72-13.83 km/h

Lifting force (610mm)

25.5KN

25.9KN

Lifting force (link joint)

28KN

29KN

Diesel engine

Model

LR6A3-23

LR6B5-23

LR6M5-23

Type

6-cylinder, vertical, water cooled, four-stroke direct injection diesel engine

Displacement

6.49L

6.87L

7.43L

7.7L

Rated power/rotating speed

73.5kw/

2300rpm

81kw

/2300rpm

88.2kw

/2300rpm

92kw

/2300rpm

95.6kw

/2300rpm



 tractor cabs

tractor cabs feature

1. Utilizing UK technology for the diesel engine, this wheeled tractor has large torque and powerful overloaded capacity. The low fuel consumption contributes to energy saving and environmental protection.

2. Reliable and durable, the transmission system for eco-friendly wheeled tractor is manufactures using advanced Italian technology, characterized by forced cooling, forced lubrication, and heavy load transmission.

3. The impact-free and noise-free gear shifting is realized due to the synchronizer. The 12F+4R or 24F+8R good adaptability and high working efficiency of this wheeled tractor. The independently controlled LUK dual clutch has good reliability and durability.

4. This agricultural machinery can be manually controlled through the operation on the steering wheel. The hydraulic wet disc brake is safe and reliable for use. Two independent PTO output speed adjusts automatically to guarantee the speed consistency between the product and the farm implements.

5. There is a return oil filter device offered for the hydraulic system. The accurate flirtation makes for low system contamination and high reliability. The adjustable single or double-acting multi-way valve, as well as the 2 or 3-group hydraulic outputs, is conducive to the outstanding adaptability of this farming equipment.

6. The totally enclosed cab of this wheeled tractor is specially designed for wide vision, moreover, the heating equipments, air conditioner, acoustic and dust filtration system bring comfortable working environment for the driver.

tractor cabs advantage

1. Appearance with a new streamlined design, high-grade paint, bright colors, beautiful

and stylish.
2. Match dragged YTO engine power, low fuel consumption, better power ability and economy.
3. Full hydraulic steering system, light and flexible of manipulation, small turning radius and good maneuverability.
4. Full stand-alone power output shaft, which can meet the demand of rotary tillage,

 straw, harvesting, planting, fertilizing and other operations.
5.Suspension system to enhance the force, can be suspended with large farm machinery and other agricultural operations.
6.Traction, optional air brake device for towing vehicles for transport operations.
7.1-3 slices optional hydraulic output multi-way valve used tomanipulate the folded target,

flip plow a variety of farm implements and shovel carriers, motor graders and dump trailers

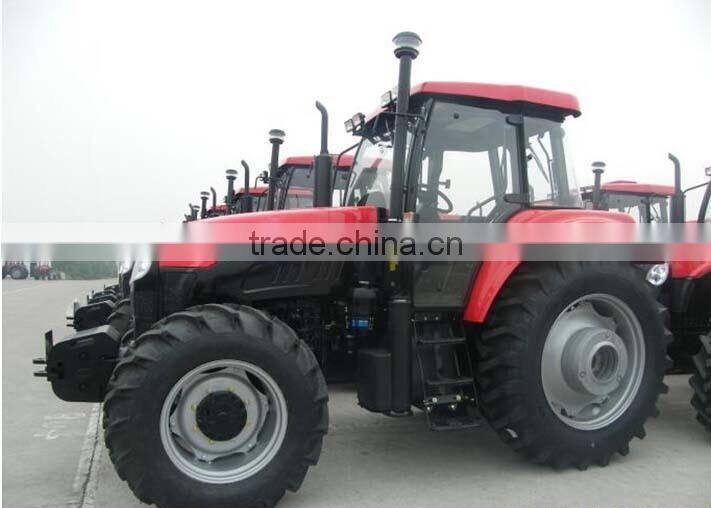

china tractor picture

 tractor cabs





tractor cabs

packaging and shipping



tractor cabstractor cabs
