High quality farm tractors for sale
farm tractors specifications
This series tractor is versatile,high-horsepower agricultural tractors,this model has compact structure,convenient operation,flexible steering,traction,versatile and easy maintence Characteristics.
The heavy duty tractor is manufactured with reliable and durable transmission. So, it is quite suitable for the operation with heavy load. Moreover, the shuttle shift structure of the transmission system makes for high working efficiency.
farm tractors parameter
Model |
BT704F |
BT804F |
Tractor | ||
Overall dimension |
4250×1500×1500mm |
|
Wheelbase |
2184mm |
|
Min. ground clearance |
300mm |
|
Min. operating mass (including anti-tilt stand and counterweight rack) |
3000kg |
|
Tire specification (F/R) |
9.5-20/14.9-24 |
|
Wheel track (F/R) |
1260/1150mm |
|
Gear number |
12F+4R |
|
Speed range (F/R) |
1.73-28.5/4.49-13.49km/h |
|
Lifting force (610mm behind the suspension point) |
16KN |
|
Lifting force (link joint) |
19.2KN |
|
Diesel engine parameters | ||
Model |
LR4A3-23 |
LR4B5-23 |
Type |
Vertical, water cooled, 4-stroke, direct injection, natural aspiration |
|
Displacement |
4.33L |
4.95L |
Rated power/rotating speed |
51.5KW/2300RPM |
59KW/2300RPM |
farm tractors feature
1. This tractor is specially designed in compact structure, characterized by light weight, small wheel track, and mid-mounted anti-tilt stand. Coming with 4-cylinder diesel engine produced from UK Ricado technology, this four-wheel tractor has large torque, strong overloading capacity, and low fuel consumption.
2.The transmission system adopts European technology. It uses sliding sleeve gear shifting and 12F+4R gear position. Durable and reliable, the front axle uses technology from Europe.
3.This tractor has two independently controlled clutches, which makes it possible for normal driving during gear shifting. In addition to the high reliability, the working efficiency is improved accordingly.
4.The agricultural tractor is engineered with hydraulic steering system, resulting in easy manual operation. For safe and reliable operation, the tractor is installed with hydraulic wet disc brake.
5.In order to use in conjunction with a variety of farm implements, the farm tractor comes with double-speed PTO shaft, and two multi-way valves. This tractor is installed with rear three-point suspension Ⅰ. The quick trailer connecting device is optional.
farm tractors advantage
1. Appearance with a new streamlined design, high-grade paint, bright colors, beautiful
and stylish.
2. Match dragged YTO engine power, low fuel consumption, better power ability and economy.
3. Full hydraulic steering system, light and flexible of manipulation, small turning radius and good maneuverability.
4. Full stand-alone power output shaft, which can meet the demand of rotary tillage,
straw, harvesting, planting, fertilizing and other operations.
5.Suspension system to enhance the force, can be suspended with large farm machinery and other agricultural operations.
6.Traction, optional air brake device for towing vehicles for transport operations.
7.1-3 slices optional hydraulic output multi-way valve used tomanipulate the folded target,
flip plow a variety of farm implements and shovel carriers, motor graders and dump trailers

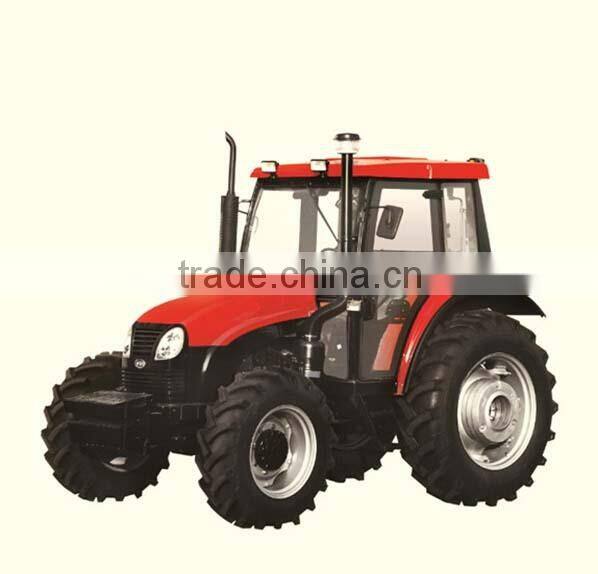

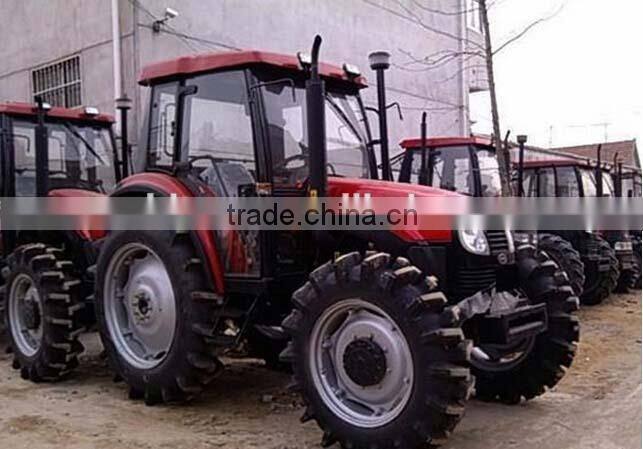

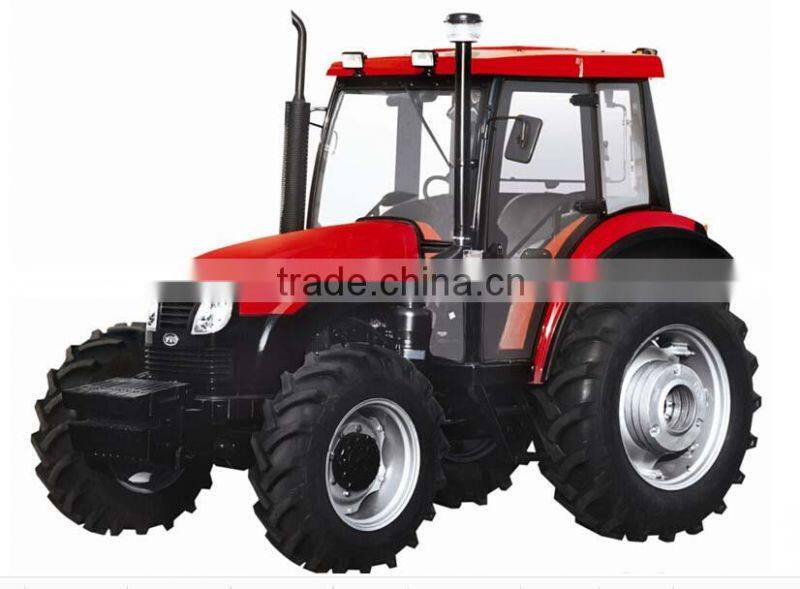

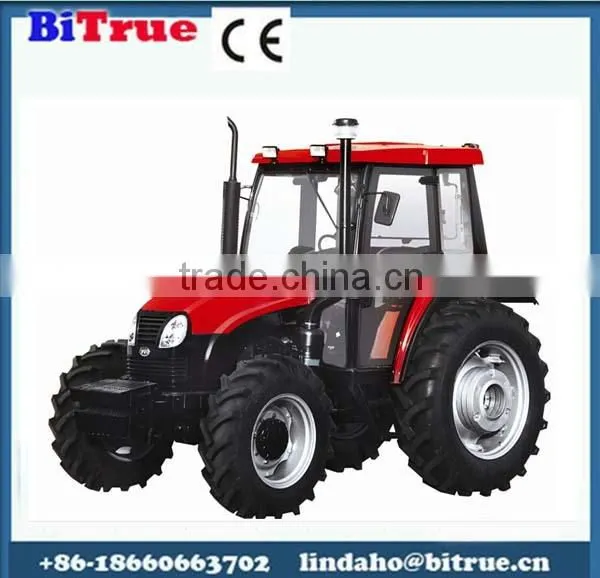

farm tractors picture
