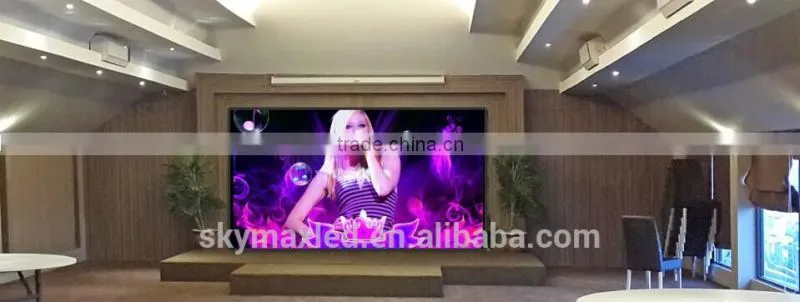

Help CenterP10 Hotel Meeting Room Indoor Full Color Led Advertising Billboard
Related Products
-
P16 Full Color Outdoor Traffic Information Electron Digital LED BillboardNegotiableMOQ: 10 Square Meters -
P16 Full Color Outdoor Traffic Information Electron Digital LED Double Side BillboardNegotiableMOQ: 10 Square Meters
-
P24 Outdoor Special Letter Led DisplayNegotiableMOQ: 10 Square Meters
-
P10 Column Outdoor Full Color Decoration Electron Led Display ScreenNegotiableMOQ: 10 Square Meters
-
P5 SMD Indoor Full Color Round Led Display ScreenNegotiableMOQ: 5 Square Meters
number |
Item name |
Parameter and index |
unit module | ||
1 |
LED encapsulation mode |
φ4oval DIP |
2 |
Horizontal axis |
120° |
3 |
Vertical axis |
60° |
4 |
Pixel composition |
2R1G1B |
5 |
Pixel pitch |
10mm |
6 |
Virtual pixel pitch |
8mm |
7 |
Scan method |
1/2 |
8 |
Drive method |
Constant current |
9 |
Module resolution |
16×16pixels |
10 |
Module dimensions |
256mm×128mm |
11 |
Module type |
incorporated lamp and drive |
12 |
Module working voltage |
+5V |
13 |
Module average power |
5W |
14 |
Module maximum power |
20W |
15 |
Module mask material |
PC |
16 |
Module shell material |
PC |
|
|
|
unit cabinet | ||
1 |
Module layout |
6×6 pieces |
2 |
Cabinet resolution |
96×96 pixels |
3 |
Cabinet virtual resolution |
No |
4 |
Cabinet maximum power |
720W |
5 |
Cabinet average power |
180W |
6 |
Cabinet dimension |
960mm×960mm |
7 |
Cabinet material |
steel/aluminum alloy |
8 |
Cabinet color |
black/gray |
9 |
Protection grade |
IP65/IP54 (front/back) |
Entire screen | ||
1 |
Application environment |
outdoor |
2 |
Brightness |
>8000 cd/m2 |
3 |
White balance coordinates |
X=0.29,Y=0.31 |
4 |
contrast |
64000:1 |
5 |
Color temperature |
8000K |
6 |
Pixel density |
10000 (pixels/ m2) |
7 |
Average consumption |
244 (W/m2) |
8 |
Maximum consumption |
977(W/m2) |
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
10 |
Operating temperature |
-20°C~ +50°C |
11 |
Operating humidity |
10%~90% |
12 |
Storage humidity |
-30°C ~ +50°C |
13 |
Refresh frame rate |
60Hz |
14 |
Refresh rate |
480Hz |
15 |
Viewing distance |
10-300m |
16 |
grayscale/color |
16.7M |
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
18 |
Control method |
synchronous with the computer display |
19 |
Data transfer range |
Network cable:100m |
20 |
Computer operating system |
WINDOWS(98,2000,XP,Vista,7) |
21 |
Video signal |
VGA, DVI,RF S-Video, RGB, RGBHV, YUV, YC,COMPOSITION and so on. |
|
||
23 |
Longevity |
≥100000 hours |
24 |
Certification |
UL/CE/CCC/ROHS/FCC/ ISO9001:2008 |
The project show:
This is the special customed led display, we adopt the battery group and AC power for it. It could work more than 15 hours with the battery group outside. Also, we could use the AC power ,it is very good for some temporary activities or some will without AC power.
