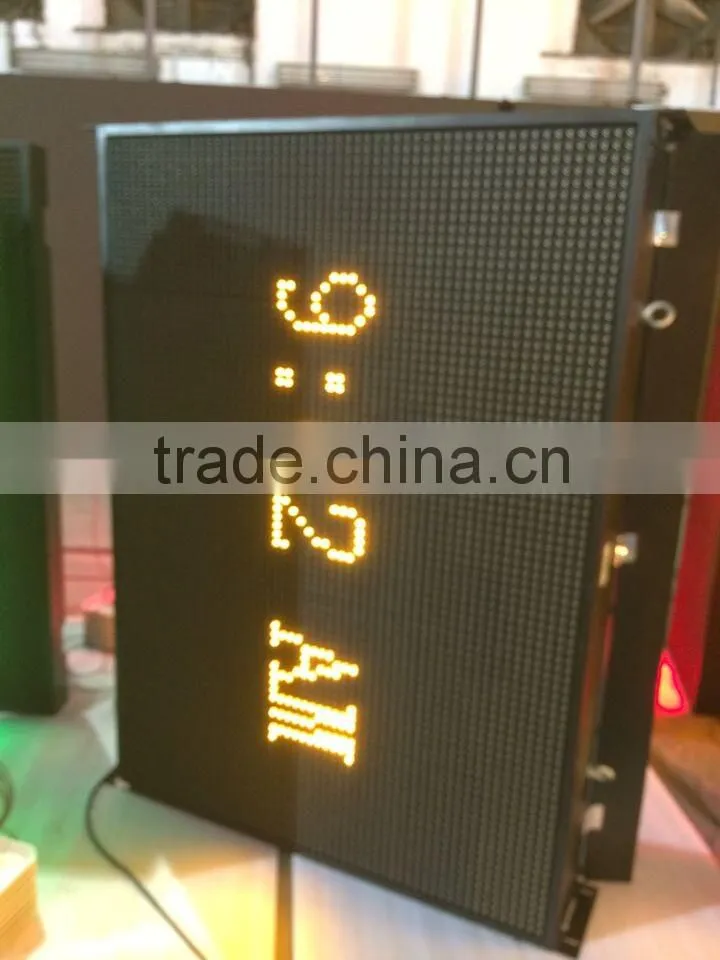

Help CenterP16 Full Color Outdoor Traffic Information Electron Digital LED Double Side Billboard
Related Products
-
P24 Outdoor Special Letter Led DisplayNegotiableMOQ: 10 Square Meters -
P10 Column Outdoor Full Color Decoration Electron Led Display ScreenNegotiableMOQ: 10 Square Meters
-
P5 SMD Indoor Full Color Round Led Display ScreenNegotiableMOQ: 5 Square Meters
-
Led Ball(sphere Led Display) Diameter 1m Indoor Full Color Led DisplayUS$ 1 - 9,500MOQ: 3 Pieces
-
Ceiling Indoor Full Color LED Display ScreenUS$ 1 - 2,500MOQ: 10 Square Meters
Specifications
>Saving energy up to 50%>Durable in high temperature&rainy weather
>Increase your business 15 to 50%
>Good price to you!
|
Features:
1>Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
2>High flexibility: our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of out products in various bad circumstances outdoors.
3>Rich colors: with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
4>High brightness: the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
5>High reliability: the products adopt the static scanning technology and the module design technology to offer higher reliability and stability.
6>Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
7>Easy operation: the products adopt popular video playing software to facilitate system operations 8>P16 Outdoor LED Billboard is widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places. |
number |
Item name |
Parameter and index |
unit module | ||
1 |
LED encapsulation mode |
φ4oval DIP |
2 |
Horizontal axis |
120° |
3 |
Vertical axis |
60° |
4 |
Pixel composition |
1R1G1B |
5 |
Pixel pitch |
16mm |
6 |
Scan method |
1/2 |
7 |
Drive method |
Constant current |
8 |
Module resolution |
16×8 pixels |
9 |
Module dimensions |
256mm×128mm |
10 |
Module type |
incorporated lamp and drive |
11 |
Module working voltage |
+5V |
12 |
Module average power |
5W |
13 |
Module maximum power |
20W |
14 |
Module shell material |
PC |
15 |
Module mask material |
PC |
unit cabinet | ||
1 |
Module layout |
4×6 pieces |
2 |
Cabinet resolution |
64×48 pixels |
3 |
Cabinet maximum power |
600W |
4 |
Cabinet average power |
150W |
5 |
Cabinet dimension |
1024mm×768mm |
6 |
Cabinet material |
steel/aluminum alloy |
7 |
Cabinet color |
black/gray |
8 |
Protection grade (front/back) |
IP65/IP54 |
Entire screen | ||
1 |
Application environment |
outdoor |
2 |
Brightness |
>8000 mcd |
3 |
White balance coordinates |
X=0.29,Y=0.31 |
4 |
contrast |
64000:1 |
5 |
Color temperature |
8000K |
6 |
Pixel density(pixels/m2) |
3906 |
7 |
Average consumption(W/m2) |
191 |
8 |
Maximum consumption(W/m2) |
763 |
9 |
Power source |
AC220V/50HZ or AC110V/60HZ |
10 |
Operating temperature |
-20°C~ +50°C |
11 |
Operating humidity |
10%~90% |
12 |
Storage humidity |
-30°C ~ +50°C |
13 |
Refresh frame rate |
60Hz |
14 |
Refresh rate |
480Hz |
15 |
Viewing distance |
15-300m |
16 |
grayscale/color |
16.7M |
17 |
Brightness adjustment |
100 manual levels /100 auto levels |
18 |
Control method |
synchronous with the computer display |
19 |
Data transfer range |
Network c able:100m |
20 |
Computer operating system |
WINDOWS(98,2000,XP,Vista,7) |
21 |
Video signal |
VGA,DVI,RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION and so on. |
22 |
MTBF |
≥10000 hours |
23 |
Longevity |
≥100000 hours |
24 |
Certification |
UL/CE/CCC |
The projects show:
Our workshop:
