P10 column outdoor full color decoration electron led display screen

Specifications

Indoor Screen:
>Hight refresh rate, vivid color.
>Adop pixel inspection technology.
>Installed guidance by the engineer.

> SMD (3-in-1) LED Package:  Provide wider viewing angles and extremely close viewing distances.

> Advanced Video Processing:  Produce crystal-clear, detailed image with smooth motion reproduction.

> HD-Ready Delivery: Deliver image feeds in both standard and high-definition formats.

> Full-Depth Image Calibration: Provide a uniform display picture through factory and field calibration.

> Complete System Integration :  Integrate seamlessly with a variety of other, SkyMax video products.

 > We adop pixel inspection technology which can find out the broken lamp or other parts of LED Screen

     automatically, it is more convenient for maintenance.











Technical parameter:



number	Item name	Parameter and index
unit module
1	Pixel composition	1R1G1B (SMD3528)
2	Pixel pitch	10mm
3	Horizontal axis	120°
4	Vertical axis	120°
5	Scan method	1/2
6	Module resolution	16×16 pixels
7	Module dimensions	160mm×160mm
Entire screen
1	Brightness	>7500 cd/m2
2	Average power consumption	212(W/m²)
3	Maximum power consumption	848(W/m2)
4	Refresh rate	1200Hz
5	Viewing distance	6-100m
6	Brightness adjustment	100 manual levels /100 auto levels
7	Data transfer method	Network, optical fiber
8	Lifetime	100,000 hours

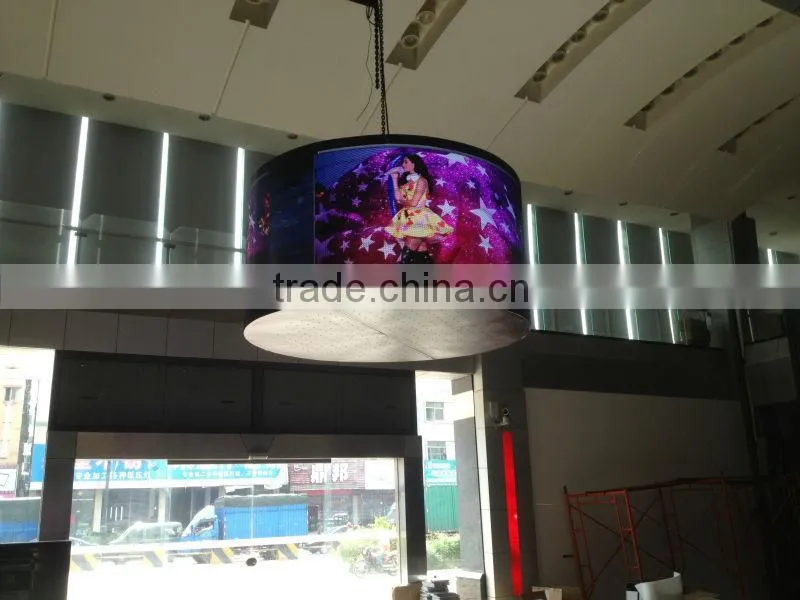

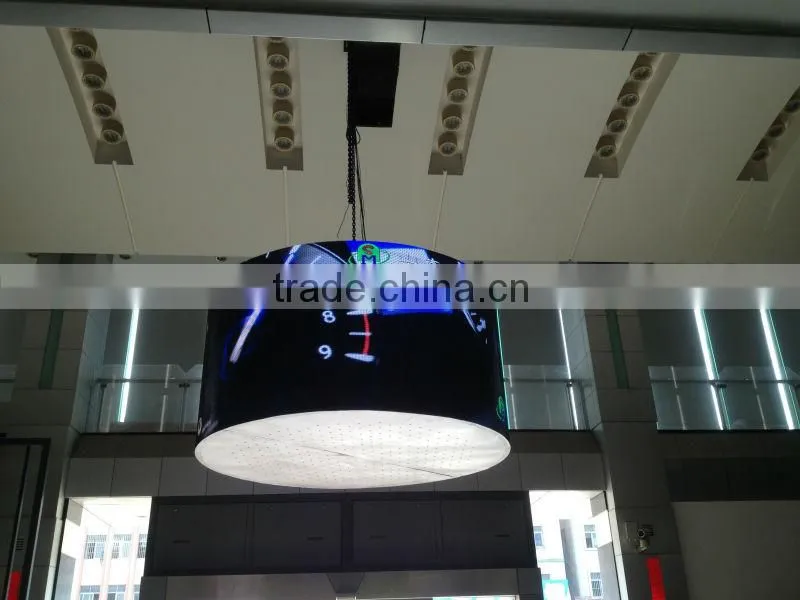

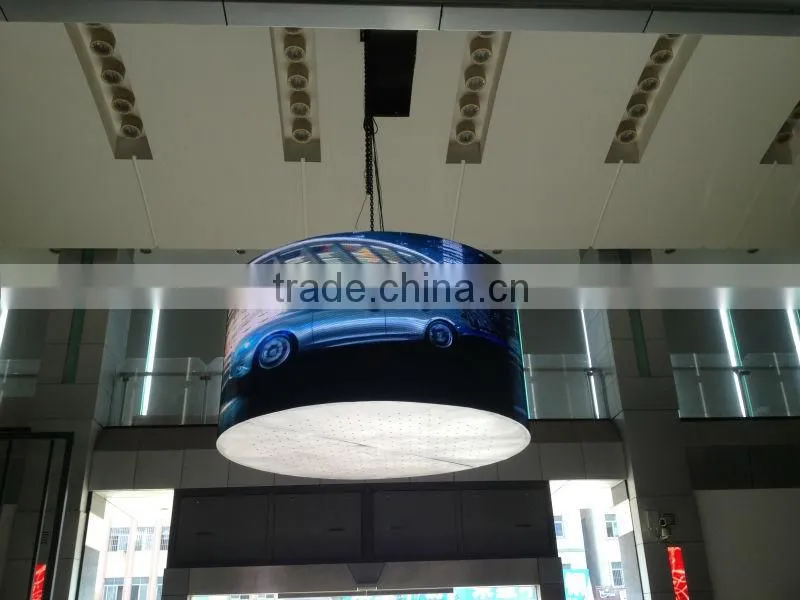

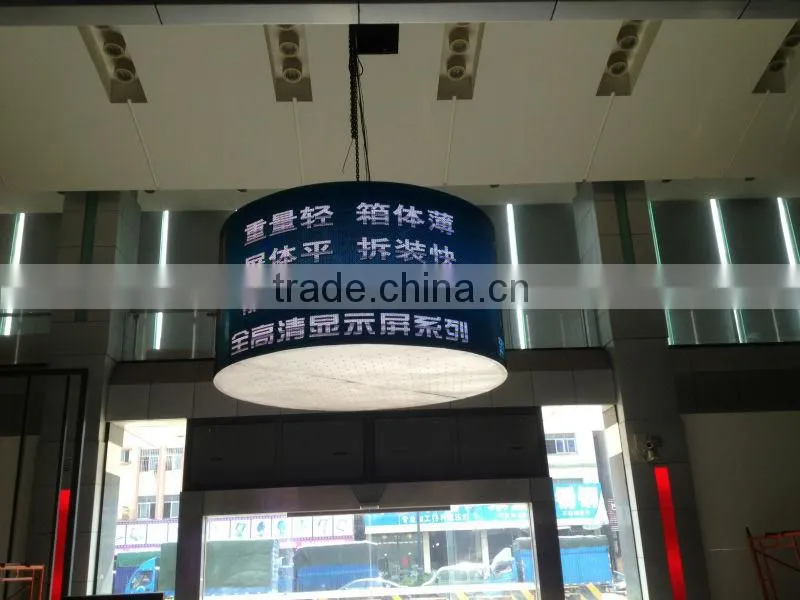

This is the special customed pillar led display, It is very nice for the decoration of the hall. From P4 to P10 indoor full color led display could be accepted.
