120V 15W Soldering Heating Element

Name: 120V 15W Soldering Heating Element
Brand: GREEN
Availability: InStock

FOB Price

US$ 1.5 - 3 / Piece

1000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China		Brand Name	GREEN
Model Number	E6038TI

1,Soldering Element 15W
2,OD*Length: 3.8mm*60mm
3,120V/15W
4,Heating zone :23.5mm
5,Eco-friendly

Product Description

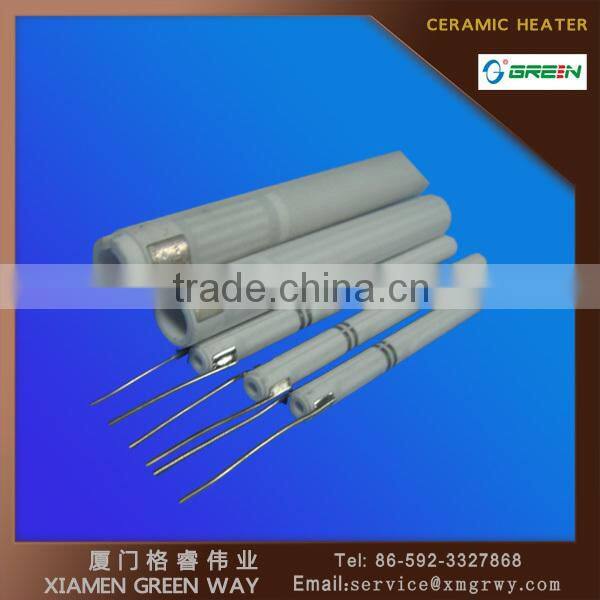

Xiamen Green Way Electronic Technology is a professional ceramic heater manufacturer with

more than 10 years experience .

Ceramic Heaters are New Eenergy-efficient material which are widelu apply in soldering iron,

soldering station, lamba sensor and Wood pellet burners.

Soldering Heating Element E6038TI( 120V,15W) USED for 15W soldering iron with the advantages

of long lifetime, energy-efficient,high insulation,super fast heating up and eco-friendly.

There are a series of serious quality control systems to make sure the quality of heaters.

Mass customization is available.

1	Part No.	E6038TI
2	Usage	for 15W soldering iron
3	Voltage &wattage	120VAC;15W
4	Resistance	309Ω±10%(23°C±2°C)
5	Dimension	length: 60mm, diameter: 3.8mm
6	Electrode	Welding two nickel wires on the surface
7	Advantages	(1)Long lifetime:airproof constructure for conquering the disintegration problem (2)Quick temperature rising and availablestable temperatures achievement make ceramic heater suitable for many heating systems. (3)Excellent insulativity (4)Energy efficient and high efficiency thermal conductivity—heat is able to be generated internally and externally simultaneously. (5)Small volume and compact structure (6)Equalized heat distribution and high power density. (7)Safe and eco-friendly electronic product complying to the RoHS requirements: MCH contains no harmful materials. (8)High cost performance.
