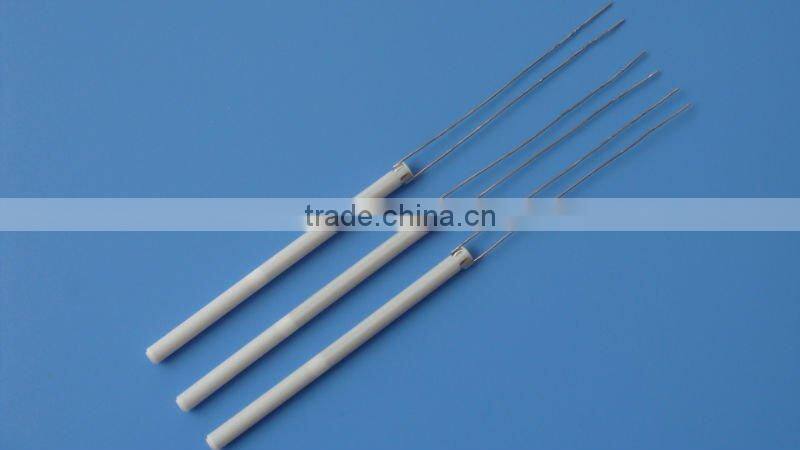

120V 25W Soldering Element for Solder Iron
- Xiamen China
- Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | GREEN | |
| Model Number | GR467 |
Product Description
Specifications
1,for soldering iron 120V2,OD*Length: 3.8mm*60mm
3,Wattage:25W
4,Heating zone :23.5mm
5,Heating resistance :136ohm
We are producing every kind of good quality 120V,25W soldering element for soldering iron with the advantages of long lifetime, energy-efficient,high insulation,super fast heating up and eco-friendly.
There are a series of serious quality control systems to make sure the quality of heaters.
Mass customization is available.
1 | Part No. | GR467
|
2 | Usage | for soldering iron
|
3 | Working Voltage &wattage | 120VAC;25W |
4 | Resistance | 136Ω±10%(23°C±2°C)
|
5 | Dimension of product | length: 60mm, diameter: 3.8mm
|
6 | Electrode | Welding two nickel wires on the surface
|
7 | Advantages | (1)Long lifetime:airproof constructure for conquering the disintegration problem
(2)Quick temperature rising and available stable temperatures achievement make ceramic heater suitable for many heating systems.
(3)Excellent insulativity
(4)Energy efficient and high efficiency thermal conductivity—heat is able to be generated internally and externally simultaneously.
(5)Small volume and compact structure
(6)Equalized heat distribution and high power density.
(7)Safe and eco-friendly electronic product complying to the RoHS requirements: MCH contains no harmful materials.
(8)High cost performance. |
