Specifications
RG59 Series Coaxial Cables With Power cable1.LOWEST PRICE AND BEST QUALITY
2.FACTORY PRICE
3.CE,ISO,RoHS
RG59 Series Coaxial Cables With Power cable
(Coaxial cable , RG59 with power coaxial cable)
Specifications:
1) Inner conductor: Ø1.00CCS, Cu or Ø1.02CCS, Cu
2) Dielectric: Ø4.7 formed PE
3) Foil: Al foil, Al + Pol + Al, bonded Al foil
4) Braided wire material: Cu, AL-Mg, T-C
5) Braided wire diameter: 0.12, 0.15, 0.16mm
6) Wire net number: 32, 48, 64, 80, 96, 112 and up
7) Coverage: 40%, 50%, 60%, 70%, 80%, 90%, 93%and up
8) Jacket:
a) Standard shield: Ø6.80mm
b) Quad-shield: Ø6.80mm
10) Customized orders accepted
11) Impedance: 75&Plusmn;3Ω;
Welcome to our factory for a visit.
RG59 with power cable
1)BC or CCS conductor
2)solid PE or Foam PE insulation,95% coverage
3)stranded or solid DC power
we are manufacturer for RG59 + power CCTV cable
1)Lowest price and best quality
2)CE RoHS Certificate
3)Delivery on time

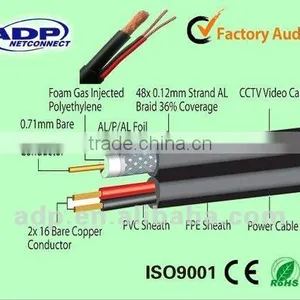

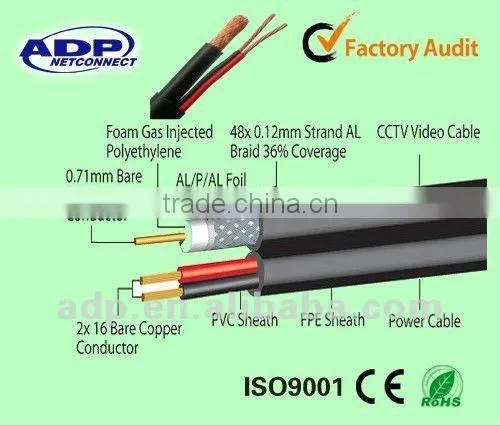

RG59 + power CCTV cable Physical Dimensions
Component Material
Inner Conductor 0.81 (mm) BC/CCS
Dielectric 3.7(mm) Foamed PE
Braid(coverage%) 96*0.12 CCA/AL-MG
Jacket 6.1(mm) PVC
RVV Cable: 30*0.15mm CCA
Jacket 1.8mm PE
Out Jacket: 4.5mm PVC
| Packaging Detail: | Package as per customer's request |
| Delivery Detail: | 15days |
