Siamese RG59 Coax + 18/2 Power Cable1.LOWEST PRICE AND BEST QUALITY
2.FACTORY PRICE
3.CE,ISO,RoHS

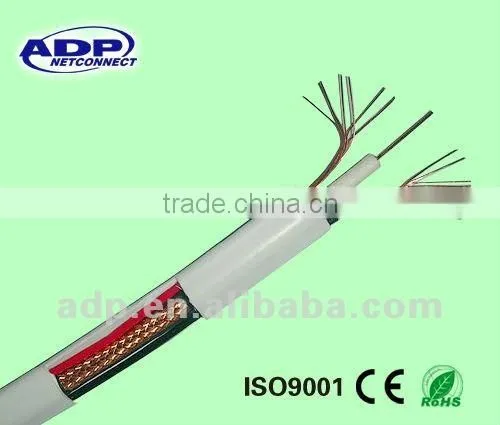

Siamese RG59 Coax + 18/2 Power Cable
Construction:
RG59 Coaxial Siamese CCTV Cable:
20AWG0.81mm BC CCA/BC+3.66FPE/PE+AL Foil+80-90% braiding 80*0.16AL-MG+6.1PVC+2*(7*0.37CCA/BC
Advantages of RG59 Siamese coax cable :
- Runs both video and power in one cable
- Video run in RG59 Coax cable
- Power run through 18 guage pair
- Cable can be cut to exact length
- Works with twist-on, crimp-on, and compression BNC connectors
- Can be run up to 1000ft without amplification
- Heavily shielded to minimize interference
- Available in Black or White
1.Specification:
Physical Dimension |
Standard Shield |
Tri-Shield |
Super-Shield |
|||
Component |
Inches |
mm |
Inches |
mm |
Inches |
mm |
Nominal Center Conductor Diameter |
0.032 |
0.81 |
0.032 |
0.81 |
0.032 |
0.81 |
Nominal Diameter Over Dielectric |
0.144 |
3.66 |
0.144 |
3.66 |
0.144 |
3.66 |
Nominal Diameter Over First Shield(Tape) |
0.151 |
3.84 |
0.151 |
3.84 |
0.151 |
3.84 |
Nominal Diameter Over Jacket |
0.240 |
6.10 |
0.240 |
6.10 |
0.265 |
6.73 |
Nominal Jacket Wall Thickness |
0.032 |
0.81 |
0.030 |
0.76 |
0.034 |
0.86 |
Nominal Diameter of Steel Messenger |
0.051 (Single) |
1.30 |
0.051 (Single) |
1.30 |
0.051 (Single) |
1.30 |
|
0.072 (dual) |
1.83 |
0.072 (dual) |
1.83 |
0.072 (dual) |
1.83 |
|
2.Attenuation
Attenuation |
|
|
Frequency(Mhz) |
Maximum(dB/100ft.) |
Maximum(dB/100m) |
5 |
0.86 |
2.82 |
55/Channel2 |
2.05 |
6.73 |
83/Channel6 |
2.45 |
8.04 |
187/Channel9 |
3.60 |
11.81 |
211/Channel3 |
3.80 |
12.47 |
250 |
4.10 |
13.45 |
300 |
4.45 |
14.60 |
350 |
4.80 |
15.75 |
400 |
5.10 |
16.73 |
450 |
5.40 |
17.72 |
500 |
5.70 |
18.70 |
550 |
5.95 |
19.52 |
600 |
6.20 |
20.34 |
750 |
6.97 |
22.87 |
865 |
7.52 |
24.67 |
1000 |
8.12 |
26.64 |
Cable Features
- Siamese type configuration to run video and power in one cable jacket
- RG-59/U Type coax plus one pair 18 AWG stranded
- (Coax) solid bare copper conductor 20 AWG
- Gas injected polyethylene coaxial core Nom. OD .142 inch (3.61 mm) with an aluminum polyester tape barrier
- Bare copper braid shield 95% coverage
- Unshielded 18 AWG twisted pair employing PVC insulation and PVC fillers
- Overall PVC jacket Nom. OD .232 x .460" (5.89 x 11.68 m)
| Packaging Detail: | Package as per customer's request |
| Delivery Detail: | 15days |
