Home > Products > rg slmr coaxial cable > RG59/20AWG and 2/18AWG SIAMESE rg59 2 core power cable
RG59/20AWG and 2/18AWG SIAMESE rg59 2 core power cable
- 600 Kilometer / Kilometers per Month
- SHENZHEN
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | RG59+power |
Type: | Coaxial | Number of Conductors: | 1 |
Product Description
Specifications
RG59/20AWG and 2/18AWG SIAMESE rg59 2 core power cable1.LOWEST PRICE AND BEST QUALITY
2.FACTORY PRICE
3.CE,ISO,RoHS

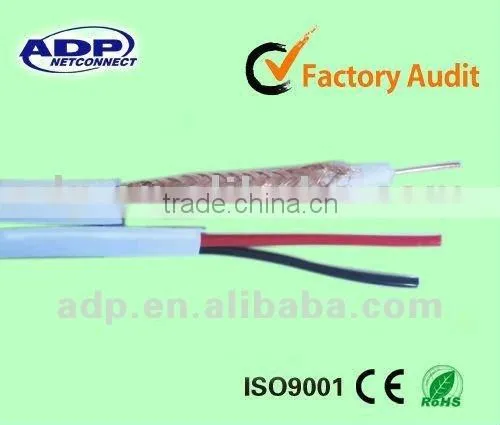

RG59/20AWG and 2/18AWG SIAMESE rg59 2 core power cable
1)Specifications of RG59+2C power cable Coaxial Cable
Inner Conductor: 0.81mm (20awg) , 1.0mm (18awg) Bare Copper or CCA
Shielding: 3.66mm Foam PE and 64 x 0.12mm Al Braiding
Cable OD: 6.1mm PVC
2 Cores Power Cable:
Conductor: 0.5mm2 (20awg) / 0.75mm2 (18awg)
Solid Cable or Stranded Cable
2)Customers' specifications are wellcomed.
Note:
1) Center conductor: TC, and BC available,CCS;
2) Braiding coverage: Between 40- 97% available;
3) PVC jacket of Flame retardant ,UV, or UL available
2) Electrical Characteristics
Characteristic Impedance ----75 Ohm± 3 Ohm
Nominal Velocity of Propagation-----85%
Nominal Capacitance -----16.2 pF/ft
Return Loss -----20dB min (5-2250 MHz)
Attenuation Performance [@68 ° F. (20 ° C)] | ||
Frequency(MHz) | Maximum (dB/100ft) | Maximum (dB/100m) |
5 | 0.86 | 2.82 |
55 | 1.95 | 6.39 |
211 | 3.59 | 11.77 |
250 | 4.00 | 13.11 |
300 | 4.27 | 14.00 |
350 | 4.64 | 15.21 |
400 | 4.88 | 16.00 |
450 | 5.30 | 17.38 |
500 | 5.60 | 18.36 |
550 | 5.90 | 19.34 |
600 | 6.05 | 19.84 |
750 | 6.96 | 22.82 |
865 | 7.50 | 24.59 |
1000 | 8.09 | 26.52 |
Packaging Detail: | Package as per customer's request |
Delivery Detail: | 15days |
Contact Us
- Shenzhen ADP Cables Co., Ltd.
- Contact nameSherry Zhu
- Phone86-755-83980229
- AddressHeng li industry park ,xia keng 168 Rd ,long gang District ,Shenzhen City, Guangdong Province. China Shenzhen,Guangdong
