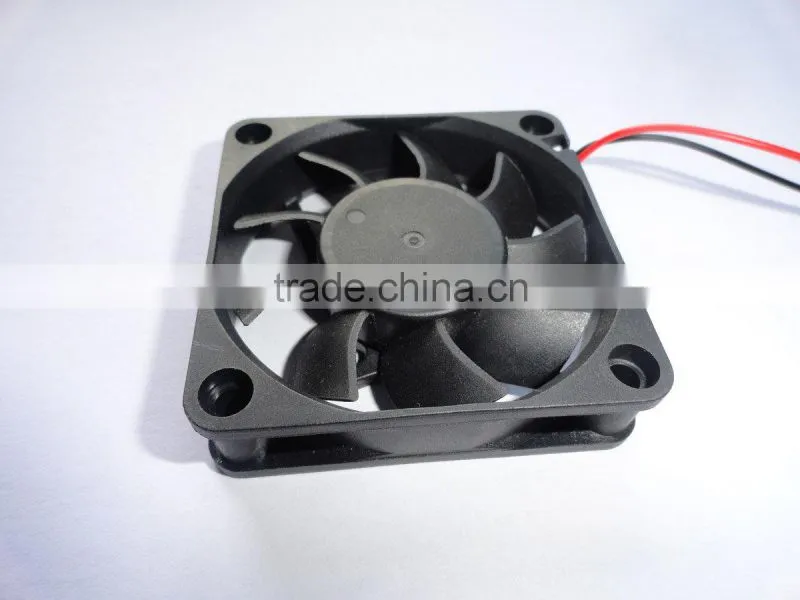

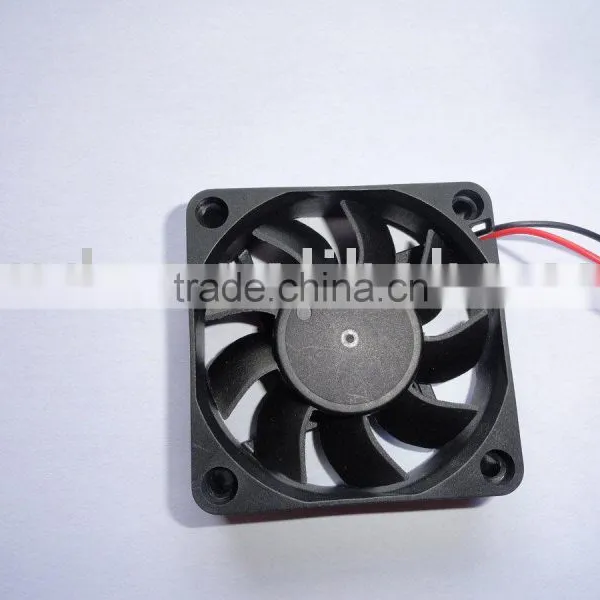

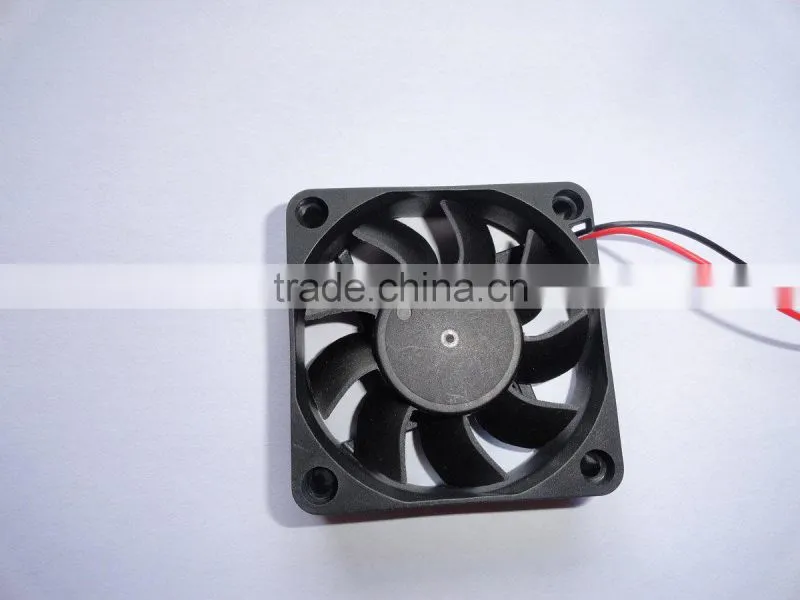

dc 5v/12v24v Axial Fan 60*15mm

Name: dc 5v/12v24v Axial Fan 60*15mm
Brand: SON TIMES
SKU: 100834185

US$ 0.3 - 1.3 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen china

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST6015HS

Voltage 5V/ 12V/24V

Power 1.2-3.12W

Air Volume 12.91-16.8CFM

Speed 3500-4500RPM

Certification CE

Specifications

1. dc axial cooling fan
2.size:60*60*15mm
3.sleeve,ball bearing
4.rated voltage:5v/12v/24v
5.low noise,large airflow

	Frame size(mm)	606015mm
	Bearing type	ball bearing/sleeve
	Rated voltage	12/24v/48v
	Rated speed	3500-4500RPM
	Max air flow	30-50CFM
	Max pressure	0.07-0.11inch-H2O
	Max noise	29-31dBA
	Functions	by impedance,FG
	Safety approvals	CE ROHS
	Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
	Insulation resistance	100M ohm between lead wire and frame(DC 500V)
	Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
	Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
	Operation temperature	-10~80 degree C(+14~176 degree F)
	Storge temperature	-40~75 degree C(-40~167 degree F)
	Protection	Motor protection and polarity protection
	Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
	fan blade material	Black PBT (UL94V-0) glass filled
	frame material	PBT
	Weight	42g
