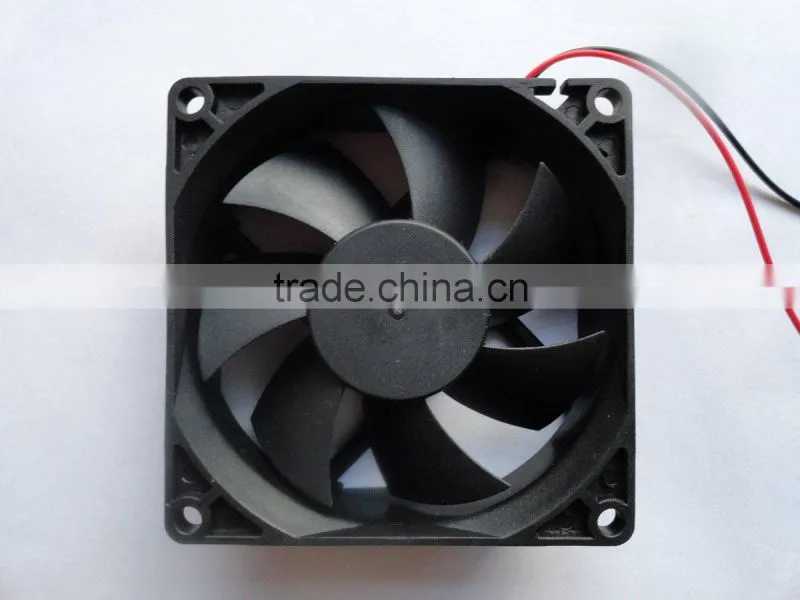

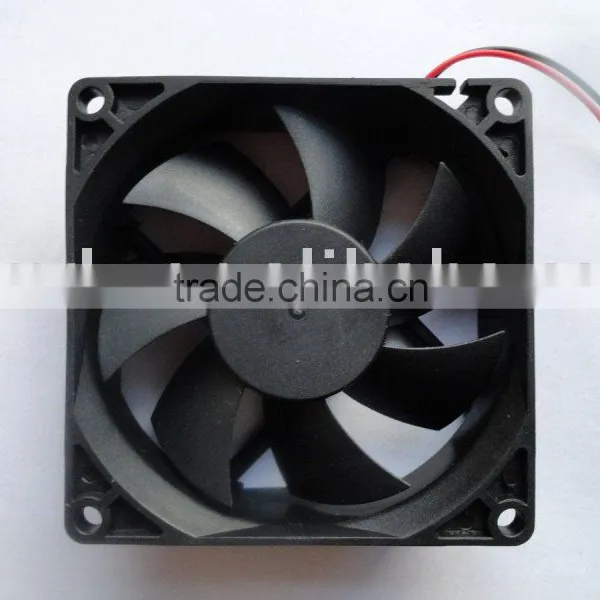

12 Volt Brushless Fan 808025mm

Name: 12 Volt Brushless Fan 80*80*25mm
Brand: SON TIMES
SKU: 100834281

US$ 0.32 - 1.5 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen china

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST8025HS

Voltage 12V/24V/48V

Power 1.20-3.64W

Air Volume 75-85CFM

Speed 2500-3000RPM

Certification CE

Specifications

1. 12 volt brushless fan
2.size:80*80*25mm
3.sleeve,ball bearing
4.rated voltage:12v/24v/48v
5.low noise,large airflow

Frame size(mm)	808025mm
Bearing type	ball bearing/sleeve
Rated voltage	12/24v/48v
Rated speed	2000-3500RPM
Max air flow	75-90CFM
Max pressure	0.24-0.31inch-H2O
Max noise	25-33dBA
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material	Black PBT (UL94V-0) glass filled
frame material	Aluminium alloy
Weight	58g
