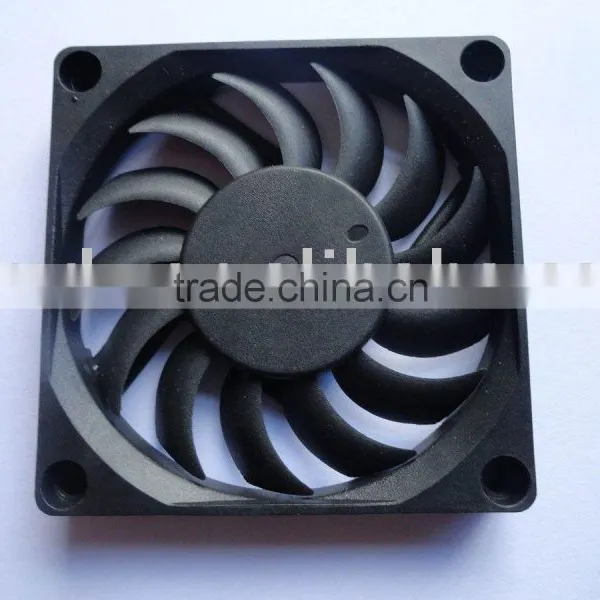

dc cooling fan 12v 24v 48v 70*10mm
- 1000000 Piece / Pieces per Month
- shenzhen china
- Credit Card
Product Details
| Electric Current Type: | DC | Mounting: | Free Standing | Blade Material: | Plastic |
| Place of Origin: | Guangdong, China | Brand Name: | SON TIMES | Model Number: | ST7010HS |
| Voltage: | 12V/24V/48V | Power: | 1.44-2.64W | Air Volume: | 30-50CFM |
| Speed: | 3500-4000RPM | Certification: | CE |
Product Description
Specifications
1. dc axial cooling fan2.size:70*70*10mm
3.sleeve,ball bearing
4.rated voltage:12v/24v/48v
5.low noise,large airflow
Frame size(mm) 70*70*10mm Bearing type ball bearing/sleeve Rated voltage 12/24v/48v Rated speed 3500-4500RPM Max air flow 30-50CFM Max pressure 0.07-0.11inch-H2O Max noise 29-33dBA Functions by impedance,FG Safety approvals CE ROHS Dielectric Strength 5mA max at 1500VAC for 1 min between lead wire and frame Insulation resistance 100M ohm between lead wire and frame(DC 500V) Life expectancy(ball bearing) 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% Life expectancy(hypro bearing) >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% Operation temperature -10~80 degree C(+14~176 degree F) Storge temperature -40~75 degree C(-40~167 degree F) Protection Motor protection and polarity protection Lead wire UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 fan blade material Black PBT (UL94V-0) glass filled frame material PBT Weight 48g
