Hot Sale CE Approved air-conditioning Fan Filter manufacturer
- 50000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T Credit Card
- 2014 New Product electrical breaker box electrical pull box
- 65*95*50mm abs plastic electrical outlet box size
- Hinged IP65 terminal junction box With lids
- ABS Waterproof plastic circuit breaker box
- China new type ABS/PC waterproof box for antenna connector junction box
- 2013 good designed DS-AT series clear door switch box price
Product Details
Electric Current Type: | AC | Mounting: | Other, fixing to the outside of enclosure | Blade Material: | Other, synthetic fibre with progressive construction |
Place of Origin: | Zhejiang, China | Brand Name: | Saip | Model Number: | FF 018 |
Voltage: | 120/230VAC | Power: | 13-15W | Air Volume: | 200m3/h |
Certification: | CE, CCC, GS, ROHS |
Packaging Details
Standard Export Packing or neutral for Filter Fan .
Product Description
Specifications
Hot Sale CE Approved air-conditioning Filter Fan1.Low noise .
2.Minimal depth.
3.Functional design.
4.Weather proof.
Hot Sale CE Approved air-conditioning Filter Fan FF 018
Features:
• Weather proof and UV resistant
• CE, RoSH Certificates
• 2 Years warranty
• OEM Service
cleanable air filter
Introduction:

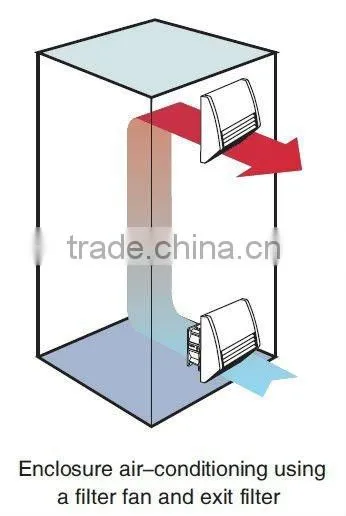

air-conditioning fan with filter
1. The self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet.
2. Functional design of the intake and exit fan hoods very effectively prevents direct intrusion of falling water and dust. The advantage is that the filter mat does not get so quickly contaminated with dirt and thus does not need to be exchanged so often.
3. The air channelling makes the filter fan particularly quiet in operation.
4. Functional and modern design enables time-saving assembly and maintenance.
5. All filter fan models are also available with integrated airflow monitor.
6. EMC versions and other voltages on request.
7. The direction of air can easily be switched by reversing the axial fan (sizes 1 to 3).
Industrial ventilation Fan Filter wholesale date :
Axial fan, ball bearing | service life min. 50,000h at 25°C/77°F (65% RH) fan body aluminium, rotor plastic |
|
Connection | 2 wires with pressure clamps 2.5mm2, length 100mm |
|
Casing (filter fan and exit filter) | plastic according to UL94 V-0,light grey |
|
Hood (filter fan and exit filter) | plastic according to UL94 V-0,light grey weather proof and UV light resistant according to UL746C (f1) |
|
| ||
| ||
Mounting frame | with double-sided industrial adhesive band for fixing to the outside of enclosure; certain operating circumstances can make the additional use of screws necessary (see drilling template); included in the delivery of the filter fans is a template for the enclosure cut-out |
|
| ||
| ||
| ||
| ||
Filter mat | G4 acc. to DIN EN 779, filtering degree 94% |
|
Filter material | synthetic fibre with progressive construction, temperature resistant to 100°C, self-extinguishing class F1; moisture resistant to 100% RH, reusable-cleaning by washing or vacuuming |
|
| ||
| ||
| ||
| ||
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
|
Protection type/Protection class | IP54 / I (earthed) |
cleanable air filter
Order Information:
Art. No. | Operating voltage | Air volume free flow | Air volume free flow | Current consumption | Power consumption | Average noise level (DIN EN ISO4871) | Depth in enclosue | Enclosure cut-out | Weight(approx.) |
01800.0-00 | 230VAC, 50Hz | 21m3/h | 16m3/h | 80mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.60kg |
01801.0-00 | 230VAC, 50Hz | 55m3/h | 42m3/h | 100mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.00kg |
01802.0-00 | 230VAC, 50Hz | 102m3/h | 68m3/h | 100mA | 15W | 39dB (A) | 86mm | 176 x 176mm + 0.4 | 1.30kg |
01800.0-01 | 120VAC, 60Hz | 24m3/h | 18m3/h | 160mA | 13W | 31dB (A) | 45mm | 97 x 97mm + 0.4 | 0.60kg |
01801.0-01 | 120VAC, 60Hz | 63m3/h | 48m3/h | 180mA | 15W | 40dB (A) | 58mm | 125 x 125mm + 0.4 | 1.00kg |
01802.0-01 | 120VAC, 60Hz | 117m3/h | 78m3/h | 180mA | 15W | 39dB (A) | 86mm | 176 x 176mm + 0.4 | 1.30kg |
air-conditioning fan filter

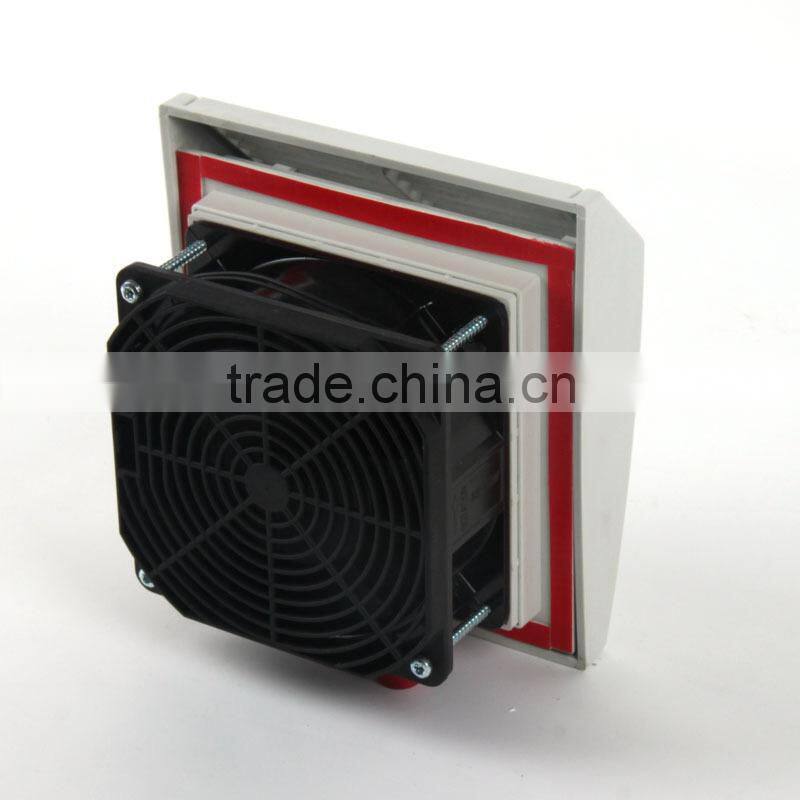

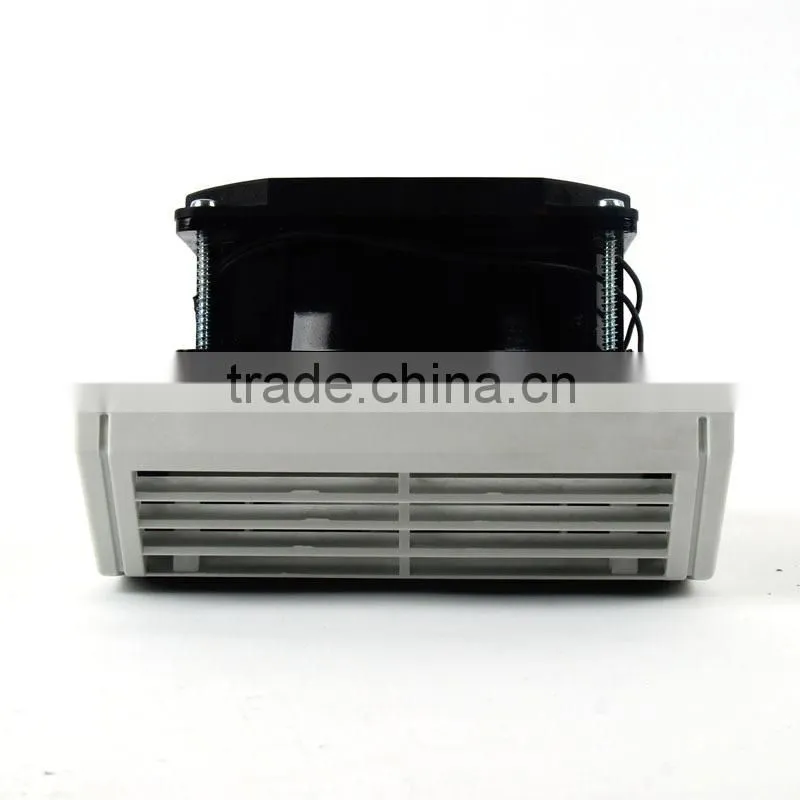

air-conditioning fan with filter Details:
air-conditioning fan filter
Drawing :

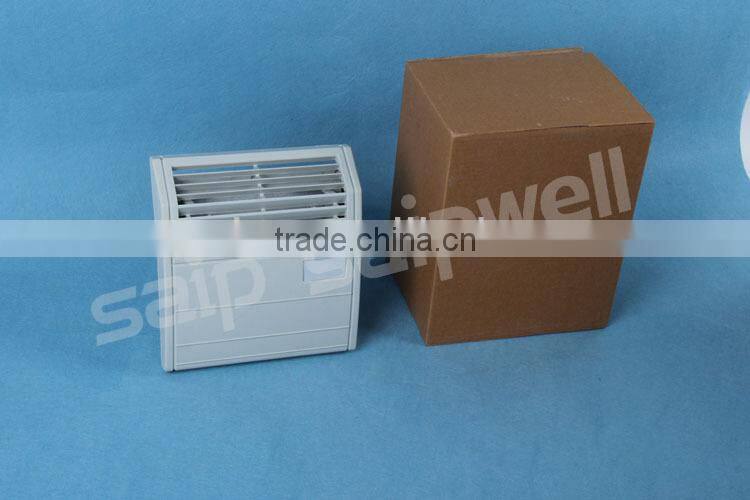

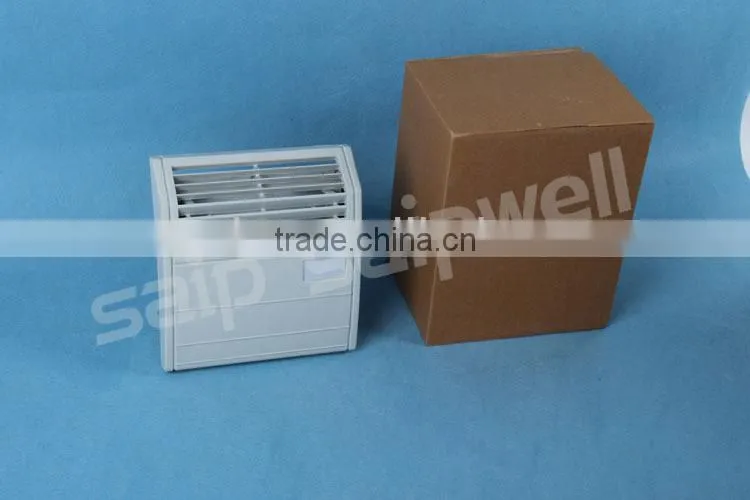

Air conditioning Fan with filter Package:
air-conditioning fan filter
air-conditioning fan filter
Product show:
Certification:

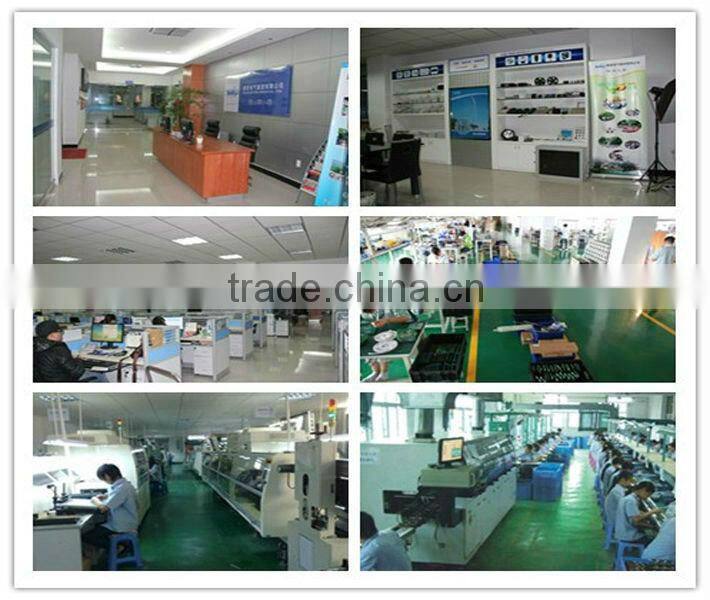

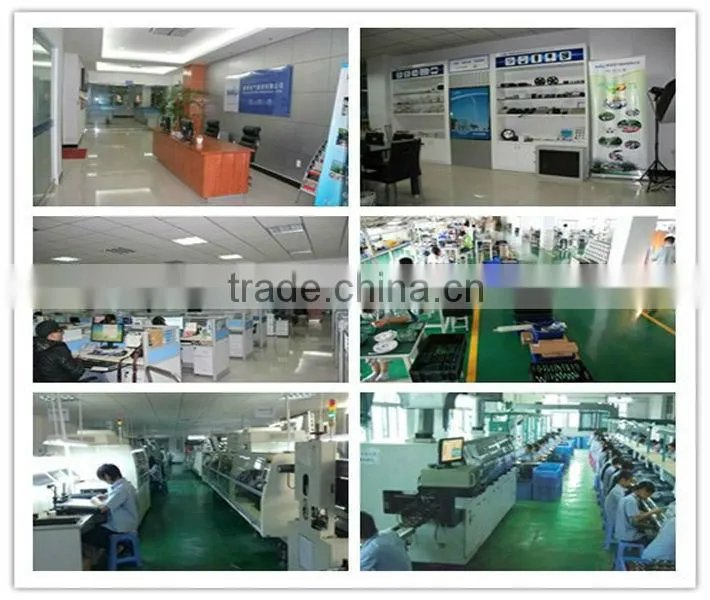

Factory Image:
About us :
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments., is an integrated enterprise which is focus on the , ODM, OEM as well as domestic & oversea sales in the field of industrial.We sells small industrial fan heater,electric ptc fan heater,industrial heater,portable low noise fan heaters,industrial semiconductor heater,240v electric mini fan heater,electric fan heater,cabinet fan heater,intelligent mechanical fan heater,electric fan heaters,high power fmechanical an heater,fan forced electric wall heater,2013 new din rail heater,compact fan heater,fan heater 1500w,intelligent din rail ptc heater,fan heaters parts,high power industrial fan heater,desktop heater fan,high power intelligent ptc heater,explosionproof fan heater,industrial semiconductor heater,portable electrical fan heater,elegant fan heater,industrial ptc heater,personal fan heater,industry semiconductor fan heater,1500w fan heater.
For industrial heaters, we can package and deliver any ways you like. We can answer your questions about industrial heaters within 24 hours in professional knowledge. We can also solve the industrial heaters problems for you with our professional service.
More products,you can visit our web : to check.
Contact Person:John Wu
Tel:0086-18067787929
Skype:saip373
fan filter unit|fan filter|exhaust fan filter|hepa filter exhaust fan|kitchen exhaust fan filter|price fan filter unit|hepa fan filter unit|electrical panel fan filter|carbon filter fan|panel fan filter|hepa filter fan box|filter fan|cabinet fan filter|axial fan filter|
window fan filter|electric fan filter|fan powered hepa filters|floor fan filter|blower fan filter|fan filter cover|
....
Company Profile
Our company (called "Saip" for short) is an enterprise specialized in the design, production and sales of electric equipment. Our office is located in the largest manufacturing base of electric equipment of Wenzhou, which is called "the Electric Equipment Capital of China".
Saip has five specialized branches, and over 300 specialized cooperative partners. Saip, an ISO9001 certificated enterprise, has modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams, technicians and skilled workers.
Now, Saip has five design and production bases in Hong Kong, Taiwan, Singapore, Turkey and Wenzhou (China Mainland) respectively, 28 sales organizations in the world and more than 50 holding member enterprises.
Saip products cover low-voltage apparatus, welding equipment, instruments and meters, photoelectrons, and electrical products for construction, automobile apparatus and industrial automation. The products are sold to more than 100 countries and regions. All exported products have passed the certification of CE and partial products have passed several kinds of international certifications like RoHS, TUV, UL, KEMA, S, SIRIM and so on. Saip as always insists on the tenet of "high quality and sincere service".
Saip will be your successful cooperative partner.
