dc Fan 12v 50*20mm
US$ 0.5 - 1.45
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
DC
Mounting:
Free Standing
Blade Material:
Plastic
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen china
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
dc 5v/12v24v Axial Fan 60*15mmUS$ 0.3 - 1.3MOQ: 1000 Pieces -
Waterproof 12volt Brushless FanUS$ 0.65 - 1.5MOQ: 1000 Pieces
-
Low Noise Axial dc Fan 12v 24v 48v 70*70*15mmUS$ 0.52 - 1.5MOQ: 1000 Pieces
-
dc Cooling Fan 12v 24v 48v 70*10mmUS$ 0.32 - 1.5MOQ: 1000 Pieces
-
Low Noise dc Axial Fan 80*15mmUS$ 0.32 - 1.5MOQ: 1000 Pieces
Electric Current Type
DC
Mounting
Free Standing
Blade Material
Plastic
Place of Origin
Guangdong, China
Brand Name
SON TIMES
Model Number
ST5020HS
Voltage
5V/ 12V/24v
Power
0.96-2.64W
Air Volume
30-50CFM
Speed
5300-6000RPM
Certification
CE
Specifications
1. dc fan 12v2.size:50*50*10mm
3.sleeve,ball bearing
4.rated voltage:5v/12v/24v
5.long life ,large airflow
| Frame size(mm) | 50*50*20mm |
| Bearing type | ball bearing/sleeve |
| Rated voltage | 12/24v/48v |
| Rated speed | 4000-6000RPM |
| Max air flow | 30-50CFM |
| Max pressure | 0.19-0.28inch-H2O |
| Max noise | 29-33dBA |
| Functions | by impedance,FG |
| Safety approvals | CE ROHS |
| Dielectric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation resistance | 100M ohm between lead wire and frame(DC 500V) |
| Life expectancy(ball bearing) | 70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life expectancy(hypro bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation temperature | -10~80 degree C(+14~176 degree F) |
| Storge temperature | -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30 |
| fan blade material | Black PBT (UL94V-0) glass filled |
| frame material | PBT |
| Weight | 29g |

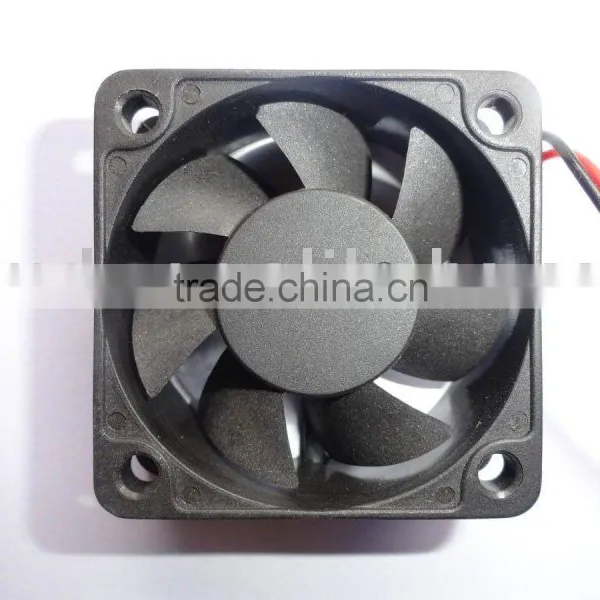

dc fan 12v 50*50*20mm
