Indoor FTTH Cable/Fiber Optical Cable 2/4/6/8 Cores With FRP/Steel Wire Strengthen Member

FOB Price

US$ 0.15 - 0.15 / Meter

2000 Meters(Min. Order)

Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ADP or OEM
Model Number	FTTH Cable		Number of Conductors	4

Product Description

Indoor FTTH Cable/Fiber Optical Cable 2/4/6/8 cores with FRP/Steel wire Strengthen Member

Products Specification

FTTH Cable

* special curved optical fiber, providing greater bandwidth and enhanced network transmission characteristics;
* two parallel fiber optic cable, FRP has a good compression performance, can protect the fiber;
* cable structure is simple, light weight, strong practical;
* unique groove design, easy peeling, convenience for connect, and simplify installation and maintenance;
* LSNHP fire-retardant jackets, environmental protection and safety.

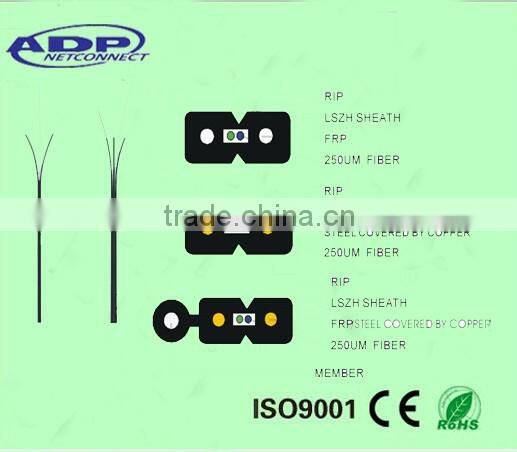

Descriptions: The struture of indoor optical FTTH cable :In the centre is the optical communication unit,with the parallel non-metical enhanced FRP of the two side.The sheath materiar is LSZH or PVC.

Type	Cores	Cable diameter(mm)	Short stretch(N)	Long-term tensile(N)	Short squash(N/100cm)	Long-term squash(N/100cm)	Static	Dynamic	Weight (Kg/Km)
FTTH--1Xn	1	2.0*3.0	30	60	300	1000	15D	30D	8
FTTH--2Xn	2	2.0*3.4	30	60	300	1000	15D	30D	8.5
FTTH--4Xn	4	2.0*3.8	30	60	300	1000	15D	30D	10

*The cable model specifications, size and strength can made the suitalbe adjust according to the customer's requirements.

Instructions:
1."Xn" means the table that fiber models. Can use G.652, G.657, G.655 single-mode optical fiber or A1a, A1b multimode fiber;
Delivery length: 1 km, 2km or other user-specified length;
3.According to the YD/T1258.5-2005 jacket color, or it can also be a user of other colors as customers requriements;
4. Jacket materials can also be use other materials as requriements;

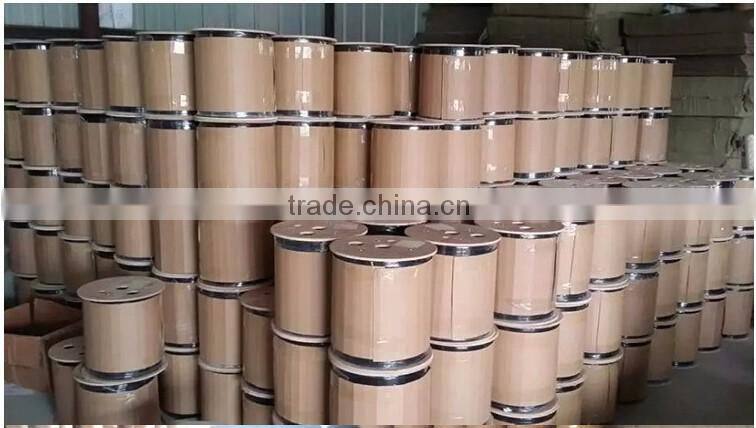

Packing

per 3-4km 6 core fiber optic cable will be packed on wooden drums

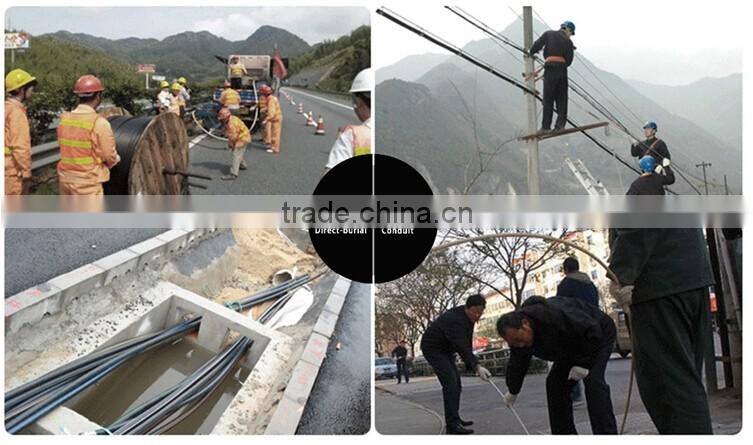

Application

• Suitable for long-distance trunk, LAN and trans-area communication

Company Info

Founded in 2002, Shenzhen ADP Cables Co., Ltd. is located in Shenzhen City, a coastal city with convenient transportation. The company specializes in production of 1mm2 to 500mm2 power cables, two cores to 288 cores of communication optical fiber cables, 1 pair to 200 pairs of communication cables, security cables, coaxial cables, other accessories, etc.

Its factory has a floor area of about 200,000 square meters. The company has constantly introduced international advanced production equipment and testing equipment to strictly control the links of its production. The company has a total staff member of more than 500 including top technical R & D talent and sale elites. The company wins high praise and wide approval from the industry by virtue of its excellent and high-quality products and service.

Its products have passed the certifications of UL, ISO9001 Quality Management System, BV, CE, ROHS, CCC, VDE, etc. The company was successively awarded “Shenzhen Top 10 E-business Members” by Alibaba in 2010 and 2011. Its export business has constantly been expanded. Its products are sold in more than 100 countries and areas. The company realizes an annual output value of USD 0.2 billion. During development, the company has established long-term cooperative relations with new and old customers around the world in the principle of “Credit, Equality, Reciprocity, Quality First, Service Supremacy”. Welcome to contact us.
