Ftth Drop Cable 4 Core With Self-supporting Wire

FOB Price

US$ 0.01 - 3 / Kilometer

20 Kilometers(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	ADP/OEM
Model Number	FTTH indoor cable

Product Description

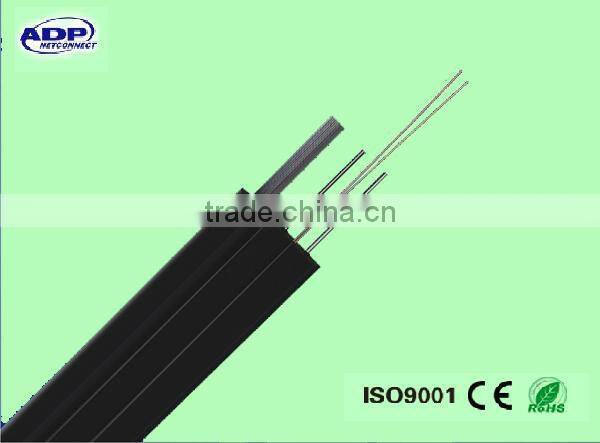

ftth drop cable 4 core with self-supporting wire

Description

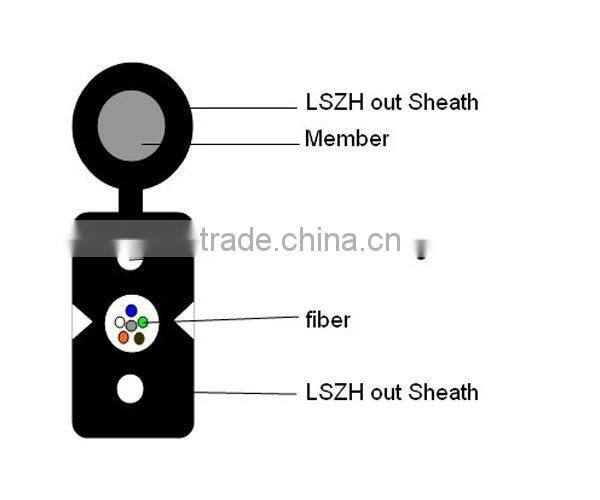

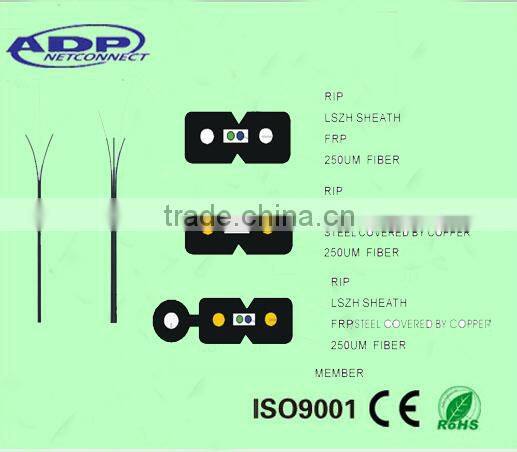

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.

·Characteristics

1 · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;

3· Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;

4· Simple structure, light weight and high practicability;

5· Novel flute design, easily strip and splice, simplify the installation and maintenance;

6· Low smoke, zero halogen and flame retardant sheath.

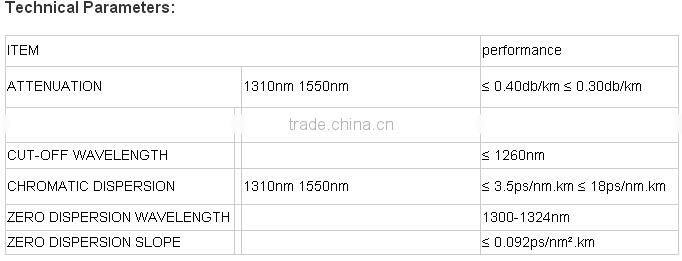

· Optical Characteristics

		G.652D	G.657A	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.5 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤ 0.45 dB/km	≤ 0.40 dB/km
	@1550nm	≤ 0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤ 1260nm	≤ 1480nm
