Rolling Machine for Ships

Rolling Machine for Ships thumbnail-1
Rolling Machine for Ships thumbnail-2
Rolling Machine for Ships thumbnail-3
Rolling Machine for Ships thumbnail-4
Rolling Machine for Ships thumbnail-5
Rolling Machine for Ships thumbnail-6
Rolling Machine for Ships photo-1
Rolling Machine for Ships photo-2
Rolling Machine for Ships photo-3
Rolling Machine for Ships photo-4
Rolling Machine for Ships photo-5
Rolling Machine for Ships photo-6
US$ 80,000 - 120,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
haiwei
Model Number:
W11-20*12500
Contact Supplier Request Quote Chat Now
Nantong Teli Forming Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name haiwei
Model Number W11-20*12500
After-sales Service Provided Engineers available to service machinery overseas
  W11-20*12500

1, main technical data:

 upper roller adding pressure:           490T

  Max width of roll board              12500mm

The length of working rolls              12600mm

Up roll diameter                    Φ380mm

Down roll diameter                 Φ320mm

Up Support roll diameter:               Φ350mm

Down support roll diameter:             Φ270mm

Distance between two down rolls       440mm

Support rolls group:                    7

No rolls of each group:               2 upper/ 4 down

Drive speed                        about 3.5m/min

Upper roll move speed while add pressure: 150mm/min

Max capacity of coiled board : T20*B125008R500(σs≤345Mpa)

Max stroke of upper roll:                 410mm

    Hydraulic system working pressure:   19.5MPa

Hydraulic motor                     22KW

Main motor                           55KW

Power:

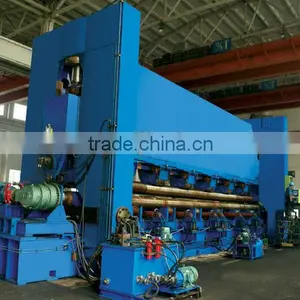

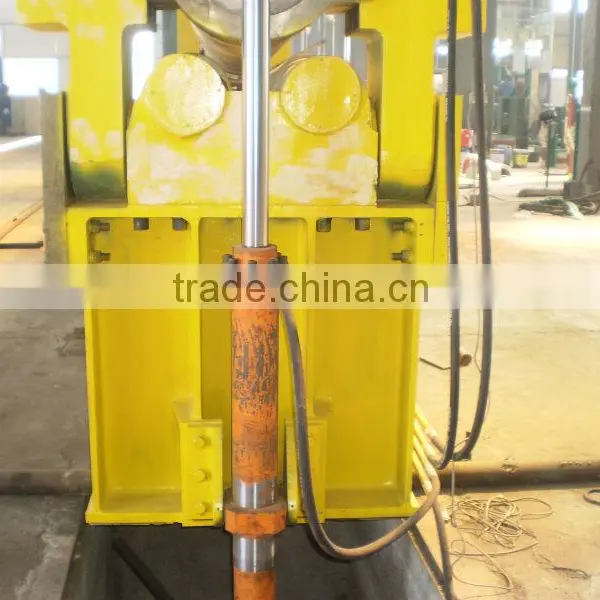

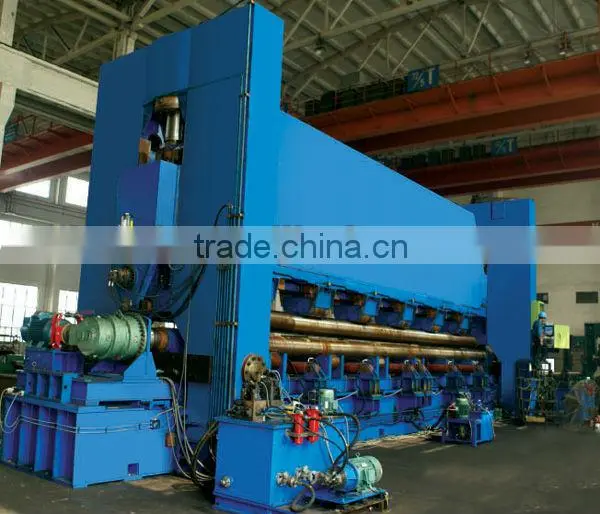

plate rolling machine for ships adopts a 3-roller symmetrical structure. the upper roller makes vertical movement at a symmetrical position in the center between the two lower rollers. the hydraulic driving is achieved through the action of the oil in the hydraulic cylinder on the posion. the two lower rollers make rotation and provide the plates with torque through the engagement between the gear of the moderator and gear of the lower roller.several groups of support rollers are devised on the lower side of the two lower rollers to enhance the rigidity of the lower rollers and enables vertical adjustment.on the upper side of the upper roller. there is a rigid beam. and between the beam and the upper roller, there are several groups of support rollers to enhance the rigidity of the upper roller. the machine is fit for bending the work-piece in arc shape and with excessive width.
