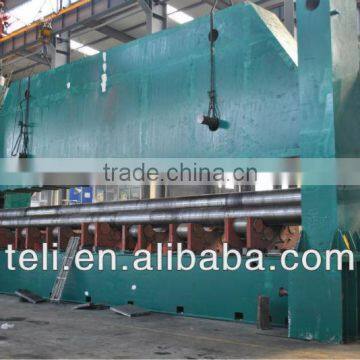

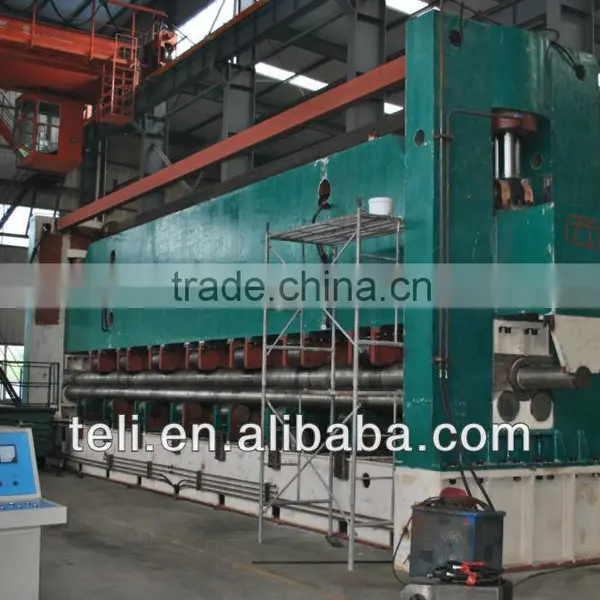

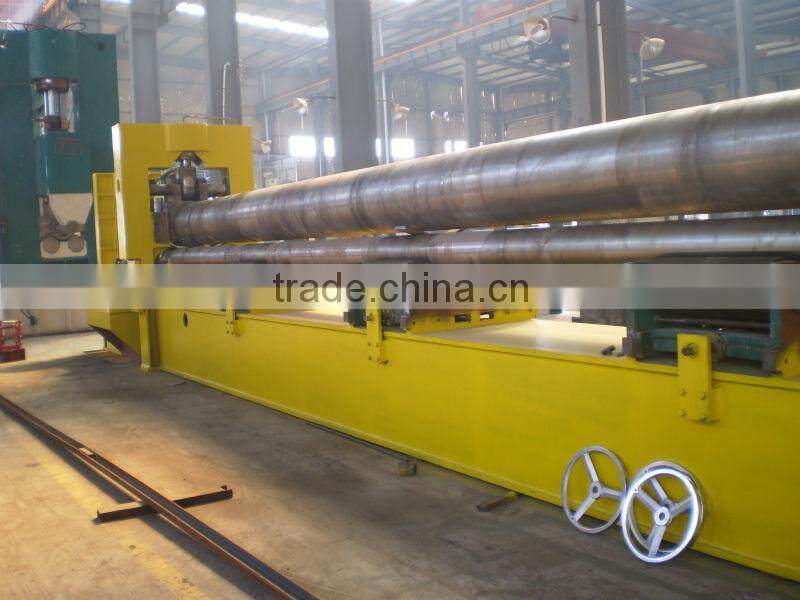

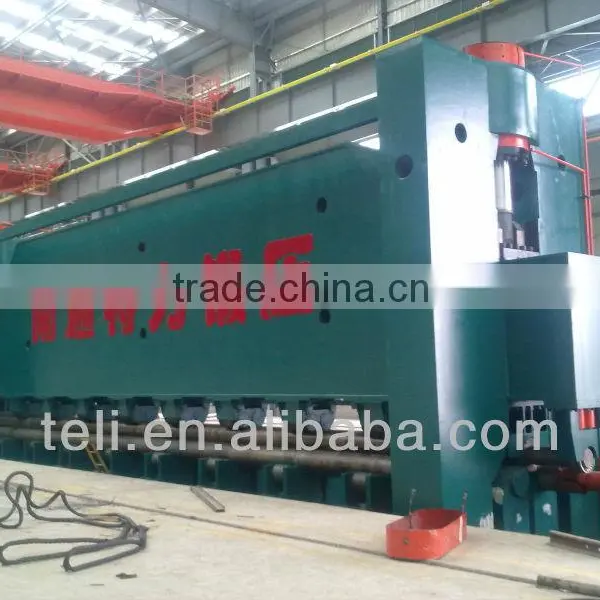

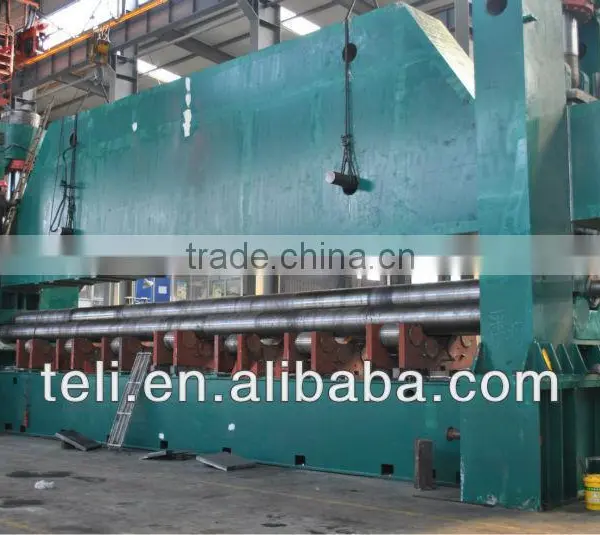

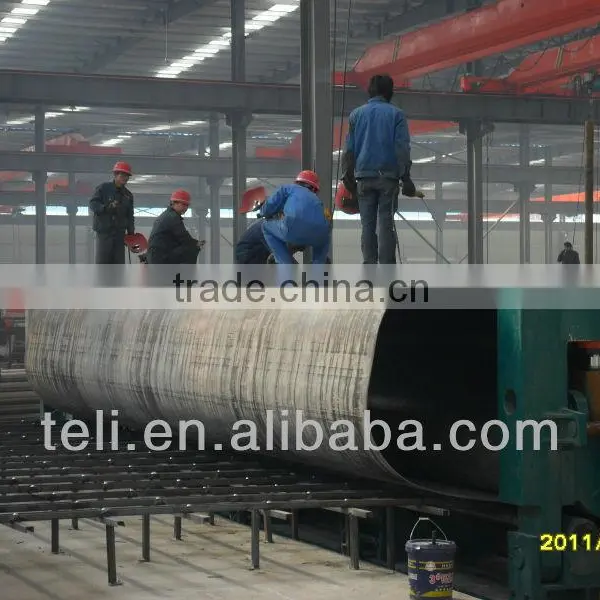

Rolling Machine for Ships

1, main technical data:

 upper roller adding pressure:           490T

  Max width of roll board              12500mm

The length of working rolls              12600mm

Up roll diameter                    Φ380mm

Down roll diameter                 Φ320mm

Up Support roll diameter:               Φ350mm

Down support roll diameter:             Φ270mm

Distance between two down rolls       440mm

Support rolls group:                    7

No rolls of each group:               2 upper/ 4 down

Drive speed                        about 3.5m/min

Upper roll move speed while add pressure: 150mm/min

Max capacity of coiled board : T20*B125008R500(σs≤345Mpa)

Max stroke of upper roll:                 410mm

    Hydraulic system working pressure:   19.5MPa

Hydraulic motor                     22KW

Main motor                           55KW

2,supplier range :

2-1 include supplier range

1) whole machine

2) electrical system

3) hydraulic system

4) lubricate device

5) motor wire parts and necessaries.

6) hydraulic pipe parts and necessaries.

7) lubricate pipe parts and necessaries.

8) painting

9) foundation bolt and cushion

10) standard tools

11) standards parts

2-2 not include supplier range

1) user factory foundation device, wires, pipes and other parts.

2) Accessional board surrounding the machine.

3) The wire from power to electrical box.

4) Grounding parts and necessaries.

5) Hydraulic oil and lubricate crease.

working processing

1. High precision pre-bending, freely setup the width of plate. Upper roller presses the plate end for pre-bending.

2. Upper roller likes drum with collaboration of carrier roller permit continual bending of any thickness of plate.

3. Safe work, fixed two down roller, upper roller does horizontal and vertical movement, and the plate don’t move during upper roller moving.

4. Unitary structure, convenient to move the whole machine as machine has a hardy under pan. No need to anchor bolt.

5. Different use has different control way, like top numerical control and below numerical control.

6.Through exclusive technology, AccurL can develop cones as easily as competitive machines can develop cylinders. And it eliminates scarring on the surface of shell or roll and also eliminates, in most cases, the need for grinding the lamination (bullnosing) on the minor diameter edge.
