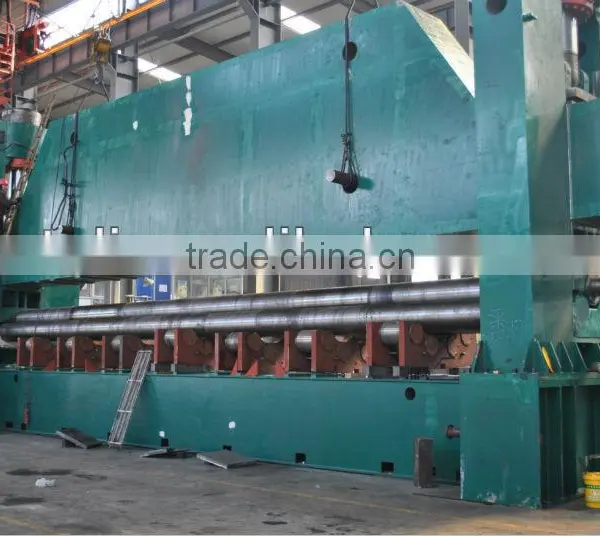

Plate Rolling Machine for Shipbuilding Industry
US$ 200,000 - 300,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HAIWEI
Model Number:
W11-20*12500
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Big Size Rolling Machine With Support DeviceUS$ 20,000 - 80,000MOQ: 1 Set -
Rolling Machine for ShipsUS$ 100,000 - 200,000MOQ: 1 Piece
-
3-roller Stainless Steel Pipe Rolling MachineUS$ 90,000 - 150,000MOQ: 1 Piece
-
3-roller Steel Plate Rolling MachineUS$ 90,000 - 150,000MOQ: 1 Piece
-
Big Size Ship 3 Roller Metal Rolling MachineUS$ 90,000 - 200,000MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
HAIWEI
Model Number
W11-20*12500
Machine Type
Roller-Bending Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Carbon Steel
Power
Hydraulic
Automation
Other, PLC
Extra Services
Other
Certification
ISO 9001:2000
Specifications
1,advanced Japan hydraulic system;2,the machine is fit for bending the work-piece in arc shape and with excessive width.
W11-20*12500
1, main technical data:
upper roller adding pressure: 490T
Max width of roll board 12500mm
The length of working rolls 12600mm
Up roll diameter Φ380mm
Down roll diameter Φ320mm
Up Support roll diameter: Φ350mm
Down support roll diameter: Φ270mm
Distance between two down rolls 440mm
Support rolls group: 7
No rolls of each group: 2 upper/ 4 down
Drive speed about 3.5m/min
Upper roll move speed while add pressure: 150mm/min
Max capacity of coiled board : T20*B125008R500(σs≤345Mpa)
Max stroke of upper roll: 410mm
Hydraulic system working pressure: 19.5MPa
Hydraulic motor 22KW
Main motor 55KW
Power:plate rolling machine for ships adopts a 3-roller symmetrical structure. the upper roller makes vertical movement at a symmetrical position in the center between the two lower rollers. the hydraulic driving is achieved through the action of the oil in the hydraulic cylinder on the posion. the two lower rollers make rotation and provide the plates with torque through the engagement between the gear of the moderator and gear of the lower roller.several groups of support rollers are devised on the lower side of the two lower rollers to enhance the rigidity of the lower rollers and enables vertical adjustment.on the upper side of the upper roller. there is a rigid beam. and between the beam and the upper roller, there are several groups of support rollers to enhance the rigidity of the upper roller. the machine is fit for bending the work-piece in arc shape and with excessive width.
