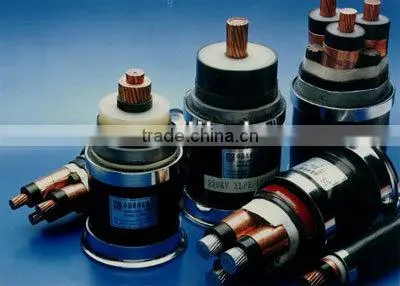

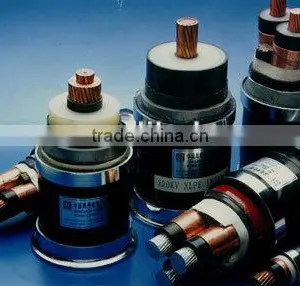

Help CenterHIGH VOLTAGE CABLES
Related Products
Specifications
The cable can be made mainly complying with standards IEC60502, can also be made complying with the ASTM, DIN, BS, CSA standardsHigh Voltage Calbe
1. Standards
The cable can be made mainly complying with standards IEC60502, can also be made complying with the ASTM, DIN, BS, CSA standards etc. In addition, under the requirement of customers we can design and manufacture the products that have special performance.
2. Property for Using
(1) The cable have excellent electric, mechanical properties
(2) they have powerful resistance against chemical corrosion, heataging and environmental stress.
(3) Their structures are simple, the permissable maximum operating temperature is 90°C.
(4) It is convenient for using and can be laid with no restriction of different elevation.
Our enterprise can produce both flame retardant and non-flame retardant series of XLPE power cable.
Our XLPE Power cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C.
We can design and manufacture special XLPE cable according to the other standards required by the customers, such as Heavy section cut apart conductors, water-resistance, defend termites, defend mouse ,and so on .
2. Scope of our Cables
Cross-section sqmm |
Rated Voltage kV |
1st class |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
Number of core |
3rd class |
6/6 |
8.7/10 |
12/15 |
18/20 |
26/35 |
||
1core |
25-2000 |
25-2000 |
25-2000 |
25-2000 |
25-2000 |
25-2000 |
||
3core |
25-400 |
25-400 |
25-400 |
25-400 |
25-400 |
25-400 |
The rate voltage cables in the 1st class available to the earth fault time within 1 minute. The cables in the 2nd class are available to earth fault time not exceeding 2 hours generally, maximum time doesn’t exceed 8 hours.

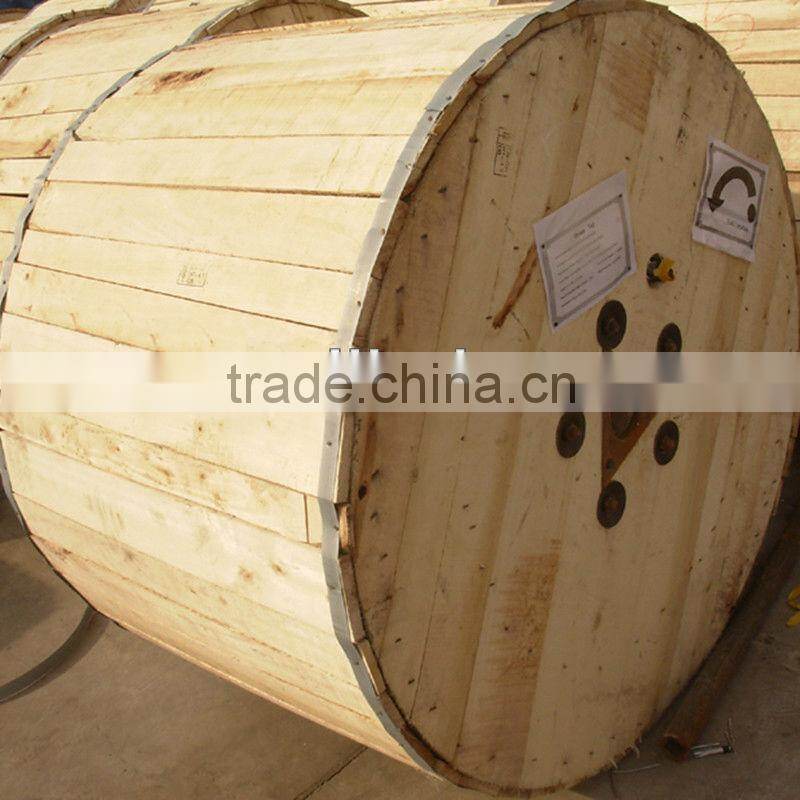

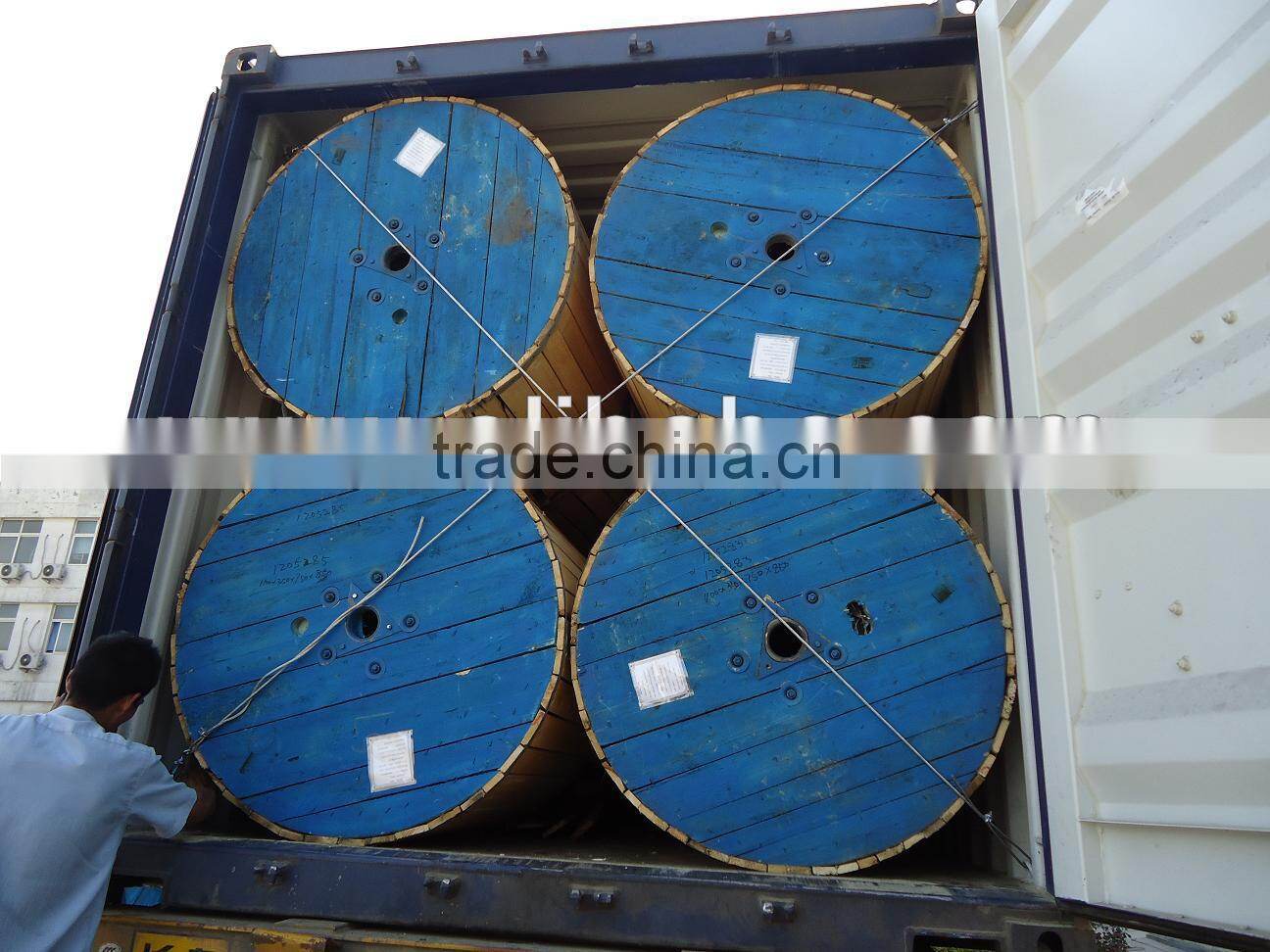

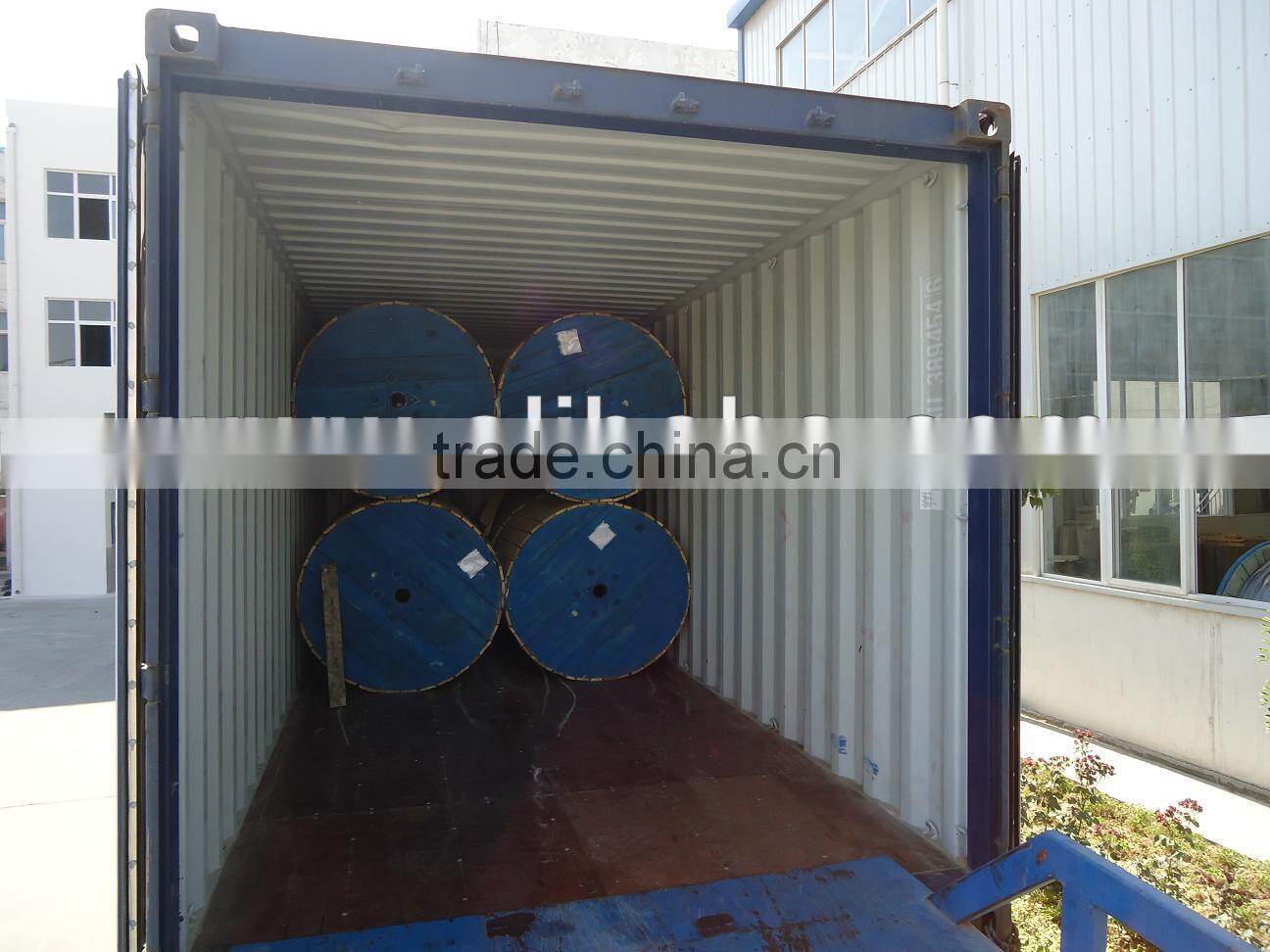

Wooden package
