Polymer Insulator
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GEM
Model Number:
GEM
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Composite Rod Post InsulatorsNegotiableMOQ: 100 Pieces -
Composite Cross- Arm Used Insulators Are Applicable to Urban Power Network Reconstruction whNegotiableMOQ: 100 Pieces
-
12KV 40.5KV 72.5KV 126KV Composite Rod Post InsulatorsNegotiableMOQ: 100 Pieces
-
12KV-36KV Polymer InsulatorNegotiableMOQ: 100 Pieces
-
10KV-500KV Polymer Suspension InsulatorNegotiableMOQ: 500 Pieces
Place of Origin
Shanghai, China
Brand Name
GEM
Model Number
GEM
Specifications
Composite Insulator includes epoxy glass fiber rod, silicon rubber umbrella skirt mental parts.
Product Description
Composite Insulator includes epoxy glass fiber rod, silicon rubber umbrella skirt mental parts.The company adopts the international advanced fitting press in technology and silicon rubber umbrella skirt once forming production. It is to improve the reliability of the composite insulator and production efficiency, and high strength, small size, light weight and beautiful appearance.
Note: special specifications can be users need to drawing production.

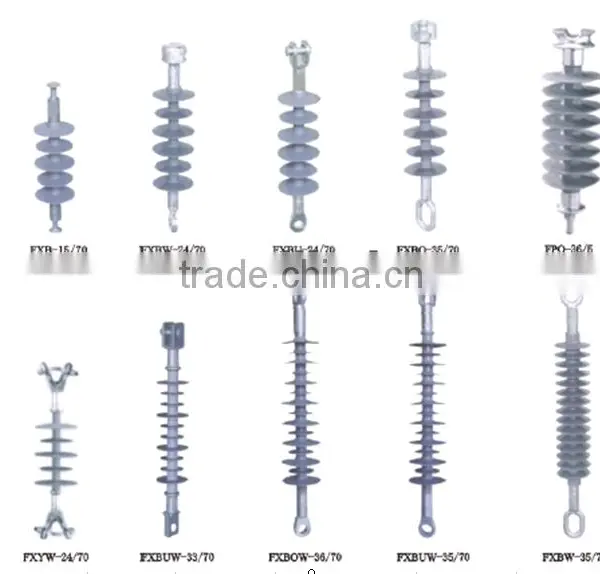

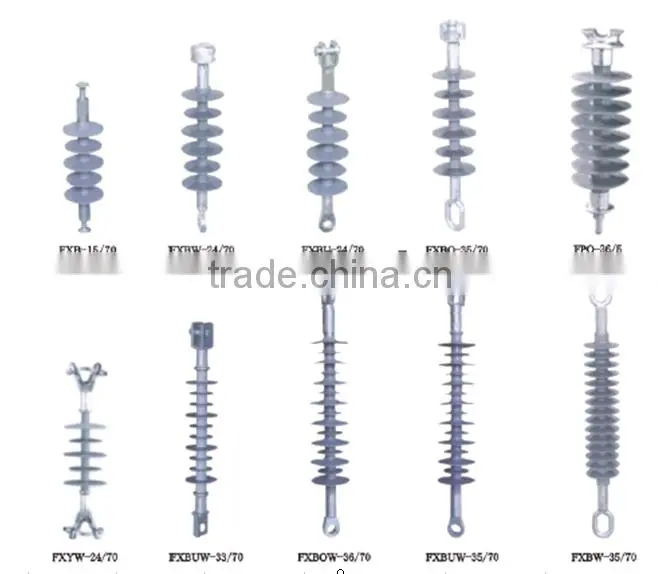

| Main technical data | ||||||||
| Type | Rated Voltage (KV) | Rated mechanical tensio load (KN) | Height (mm) | insulating distance Li. (mm) | Min norminal creepage distance (mm) | Diameter of Shed D. | 1 min power frequency wet withstand voltage not less than (KV) | Full wave lightning impulse voltage (peak value) (KV) |
| FXBUW-12/70 | 12 | 70 | 390 | 180 | 460 | 98/88 | 42 | 105 |
| FXBW-15/70 | 15 | 70 | 445 | 225 | 620 | 98/88 | 42 | 105 |
| FXB-24/70 | 24 | 70 | 450 | 235 | 635 | 148/118 | 42 | 150 |
| FXBOW-28/70 | 28 | 70 | 560 | 380 | 1250 | 88 | 95 | 230 |
| FXBUW-33/70 | 33 | 70 | 560 | 380 | 1130 | 92/62 | 95 | 230 |
| FXBUW-36/70 | 36 | 70 | 580 | 380 | 1250 | 88 | 95 | 230 |
| FXBO-36/70 | 36 | 70 | 650 | 450 | 1320 | 148/118 | 95 | 230 |

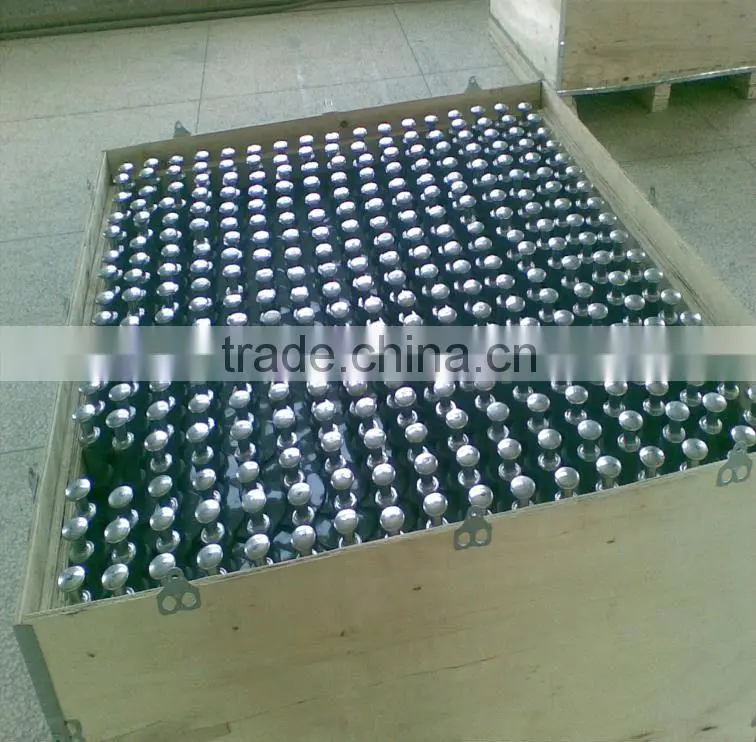

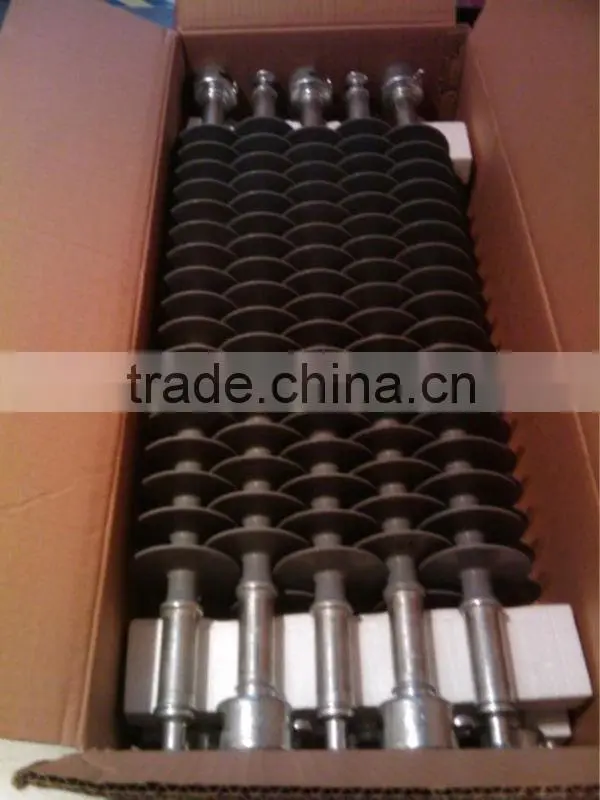

Packaging & Shipping
