Polymer Suspension Insulator
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GEM
Model Number:
GEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Polymer InsulatorNegotiableMOQ: 100 Pieces -
Composite Rod Post InsulatorsNegotiableMOQ: 100 Pieces
-
Composite Cross- Arm Used Insulators Are Applicable to Urban Power Network Reconstruction whNegotiableMOQ: 100 Pieces
-
12KV 40.5KV 72.5KV 126KV Composite Rod Post InsulatorsNegotiableMOQ: 100 Pieces
-
12KV-36KV Polymer InsulatorNegotiableMOQ: 100 Pieces
Place of Origin
China
Brand Name
GEM
Model Number
GEM
Specifications

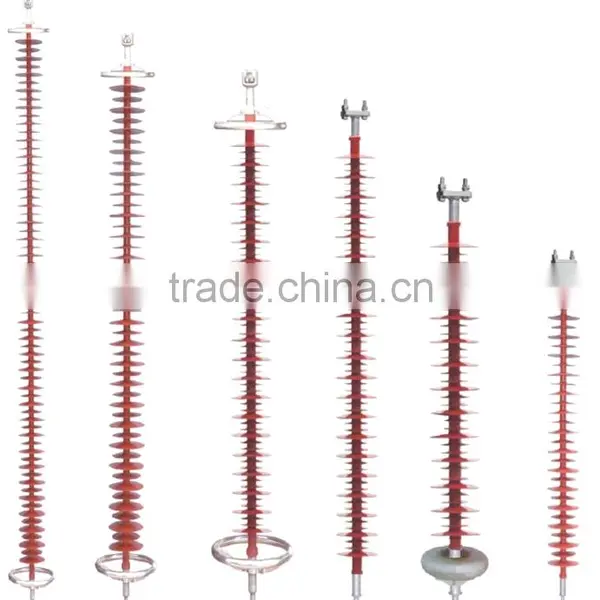

Composite Suspension Insulator includes epoxy glass fiber rod, silicon rubber umbrella skirt mental parts.Product Description
Composite Suspension Insulator includes epoxy glass fiber rod, silicon rubber umbrella skirt mental parts. The company adopts the international advanced fitting press in technology and silicon rubber umbrella skirt once forming production. It is to improve the reliability of the composite insulator and production efficiency, and high strength, small size, light weight and beautiful appearance.
Note: special specifications can be users need to drawing production.
| Size and technical data of the supension insulators | |||||||||
| Type | Rated Voltage (KV) | Rated mechanical tensio load (KN) | Structure of coupling marks | Structure Height (mm) | Min electric arc distance (mm) | Min norminal creepage distance(mm) | Full wave lightning impulse withstand voltage (peak value) not less than (KV) | 1 min power frequency wet withstand voltage not less than (KV) | Nos of voltage divider ring |
| FXBW6-10/70 | 10 | 70 | 16 | 380±15 | 190 | 480 | 115 | 45 | N/A |
| FXBW4-35/100 | 35 | 100 | 16 | 670±15 | 450 | 1260 | 230 | 95 | N/A |
| FXBW4-66/100 | 66 | 100 | 16 | 940±15 | 685 | 1870 | 410 | 185 | N/A |
| FXBW4-110/100 | 110 | 100 | 16 | 1240±15 | 1015 | 3150 | 550 | 230 | Negotiable |
| FXBW4-220/100 | 220 | 100 | 16 | 2240±30 | 1950 | 6300 | 1000 | 395 | Negotiable |
| FXBW4-220/160 | 220 | 160 | 20 | 2240±30 | 1950 | 6300 | 1000 | 395 | Negotiable |
| FXBW-330/100 | 330 | 160 | 16 | 2930±40 | 2250 | 9075 | 1425 | 570 | Negotiable |
| FXBW4-330/160 | 330 | 160 | 20 | 2990±40 | 2600 | 9075 | 1425 | 570 | Negotiable |
| FXBW4-500/160 | 500 | 160 | 20 | 4450±50 | 4000 | 13750 | 2250 | 740 | Negotiable |
