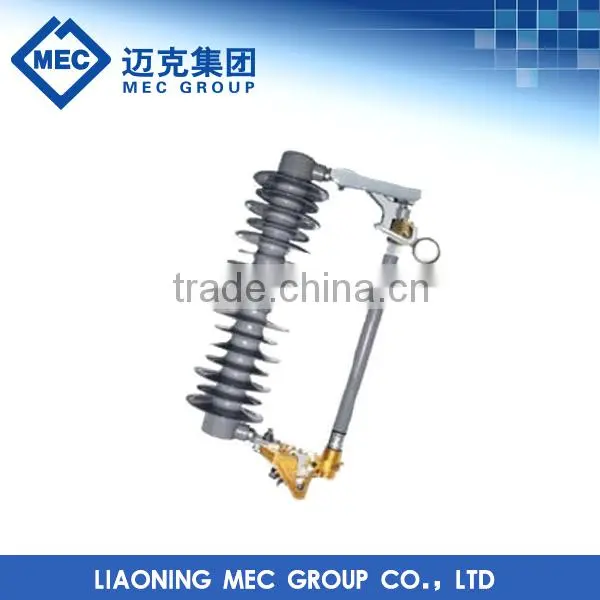

Dropout fuse cutout with good flexibility, the application of the characteristics, easy installation, long service life.Dropout Fuse Cutout Information:
RW20-15 type provides safe and reliable industrial over-current protection of long history. It may be due to the design of system load or malfunction caused damage condition of current protection equipment.
Besides, RW20-15 type has good flexibility, the application of the characteristics, easy installation, long service life and trouble-free operation etc.
Technology parameter
Rated voltage (KV) |
BIL (KV) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
FR (mm) |
Leakage distance (mm) |
Weight (kg) |
12(15) |
125 |
331.4 |
169.3 |
202.4 |
462.8 |
124.9 |
412.8 |
325.1 |
6.58 |
24(27) |
125 |
341.4 |
179.3 |
202.4 |
462.8 |
134.9 |
412.8 |
325.1 |
6.58 |
24(27) |
150 |
341.4 |
179.3 |
202.4 |
462.8 |
134.9 |
412.8 |
457.2 |
9.08 |
27(33) |
200 |
435.1 |
187.5 |
261.1 |
548.4 |
165.1 |
522.2 |
665.5 |
10.1 |
27(36) |
200* |
435.1 |
187.5 |
261.1 |
548.4 |
165.1 |
522.2 |
769.6 |
10.4 |
Type |
Rated voltage (KV) |
Rated current (A) |
Breaking current (A) |
Impulse voltage (A) |
Power-frequency withstand voltage (KV) |
Creepage distance (cm) |
Weight (kg) |
Dimensions (cm) |
GEM1 |
10-15 |
100 |
10000 |
110 |
42 |
250 |
7.0 |
38.5*34.5*10.5 |
GEM1 |
10-15 |
200 |
10000 |
110 |
42 |
250 |
7.0 |
38.5*34.5*10.5 |
GEM2 |
10-15 |
100 |
10000 |
110 |
40 |
250 |
7.0 |
38.5*34.5*10.5 |
GEM2 |
10-15 |
200 |
10000 |
110 |
40 |
250 |
7.0 |
38.5*34.5*10.5 |
GEM3 |
10-15 |
100 |
10000 |
110 |
40 |
260 |
7.5 |
48.5*44*13.5 |
GEM3 |
10-15 |
200 |
12000 |
110 |
40 |
260 |
7.5 |
48.5*44*13.5 |
GEM4 |
15-27 |
100 |
10000 |
125 |
45 |
355 |
8.8 |
51.5*34*12 |
GEM4 |
15-27 |
200 |
12000 |
125 |
45 |
355 |
8.8 |
51.5*34*12 |
GEM5 |
15-27 |
100 |
10000 |
125 |
45 |
350 |
8.5 |
48*35*10.5 |
GEM5 |
15-27 |
200 |
12000 |
125 |
45 |
350 |
8.5 |
48*35*10.5 |
GEM6 |
15 |
100 |
10000 |
110 |
45 |
245 |
3.8 |
45*34*11.5 |
GEM6 |
15 |
200 |
12000 |
110 |
45 |
245 |
3.8 |
45*34*11.5 |
GEM7 |
15-27 |
100 |
10000 |
250 |
45 |
350 |
8.5 |
45*34.5*12 |
GEM7 |
15-27 |
200 |
12000 |
125 |
45 |
350 |
8.5 |
45*34.5*12 |
GEM8 |
10-15 |
100 |
10000 |
110 |
42 |
250 |
7.3 |
38.5*34.5*10.5 |
GEM8 |
10-15 |
200 |
12000 |
110 |
42 |
250 |
7.3 |
38.5*34.5*10.5 |
GEM9 |
24-27 |
100 |
8000 |
150 |
65 |
505 |
12 |
48*34.5*14 |
GEM9 |
24-27 |
150 |
10000 |
150 |
65 |
505 |
12 |
48*34.5*14 |
GEM10 |
24-27 |
100 |
8000 |
150 |
65 |
540 |
12 |
49*35*14 |
GEM10 |
24-27 |
100 |
8000 |
150 |
65 |
540 |
12 |
49*35*14 |
GEM11 |
24 |
100 |
10000 |
150 |
65 |
540 |
4.5 |
51*34*11.5 |
GEM11 |
24 |
200 |
12000 |
150 |
65 |
540 |
4.5 |
51*34*11.5 |
GEM12 |
33 |
100 |
6000 |
170 |
70 |
660 |
15 |
56*38*14.5 |
GEM12 |
33 |
200 |
8000 |
170 |
70 |
660 |
15 |
56*38*14.5 |
GEM13 |
36 |
100 |
10000 |
170 |
70 |
720 |
15.5 |
63*38*14.5 |
GEM13 |
36 |
200 |
12000 |
170 |
70 |
720 |
15.5 |
63*38*14.5 |
GEM14 |
33 |
100 |
8000 |
170 |
70 |
820 |
27.5 |
68*17*15 |
GEM14 |
33 |
100 |
10000 |
170 |
70 |
820 |
27.5 |
68*17*15 |
GEM15 |
36 |
100 |
10000 |
170 |
70 |
720 |
5 |
61*34*11.5 |
GEM15 |
36 |
200 |
12000 |
170 |
70 |
720 |
5 |
61*34*11.5 |
Carton or Wooden case.
